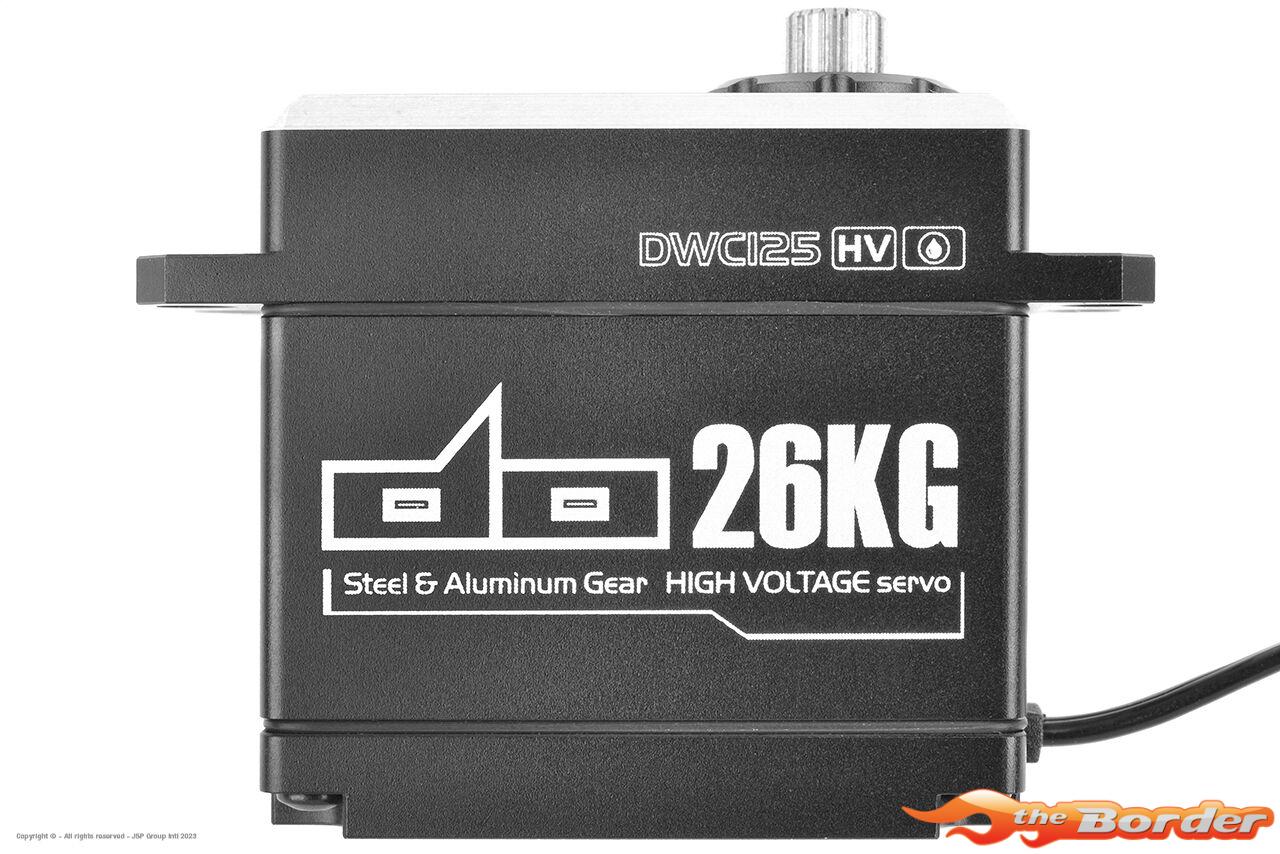

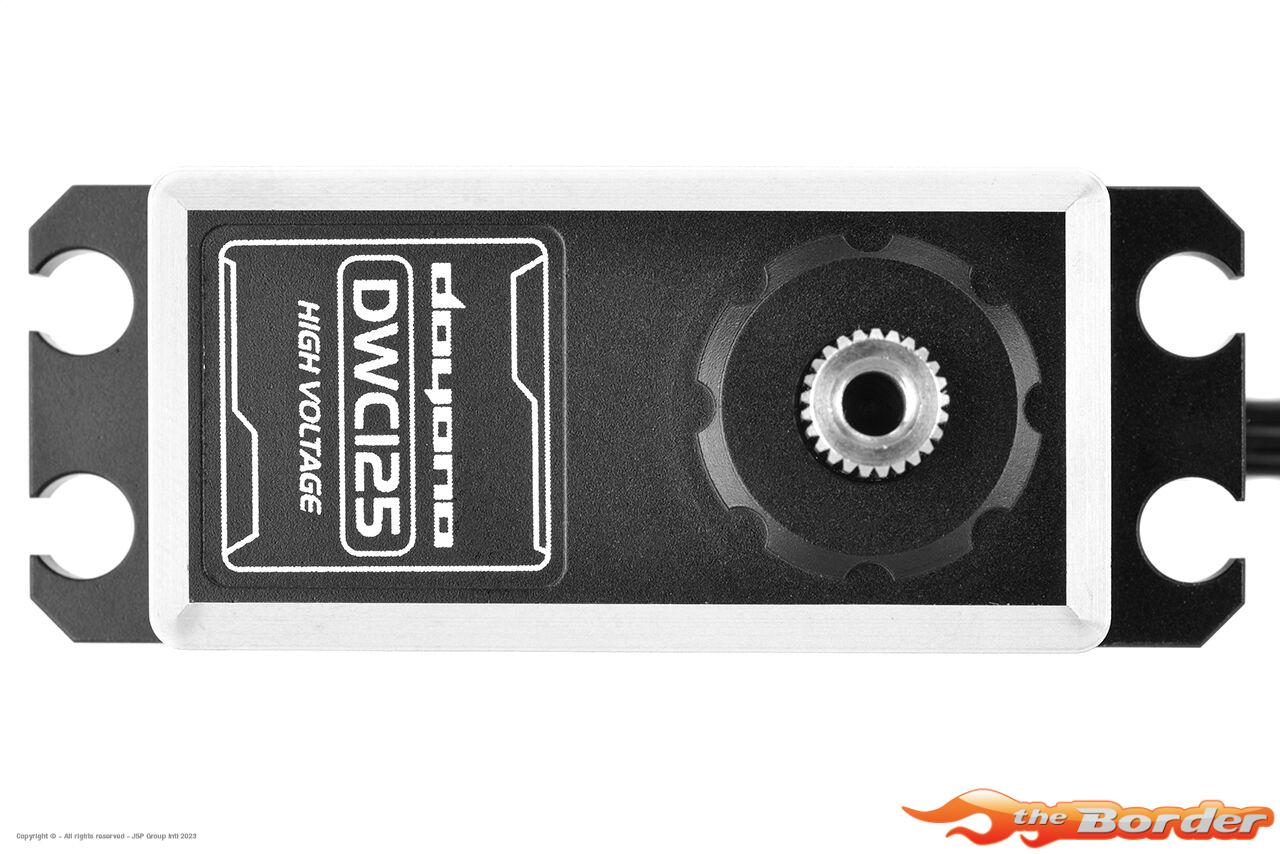

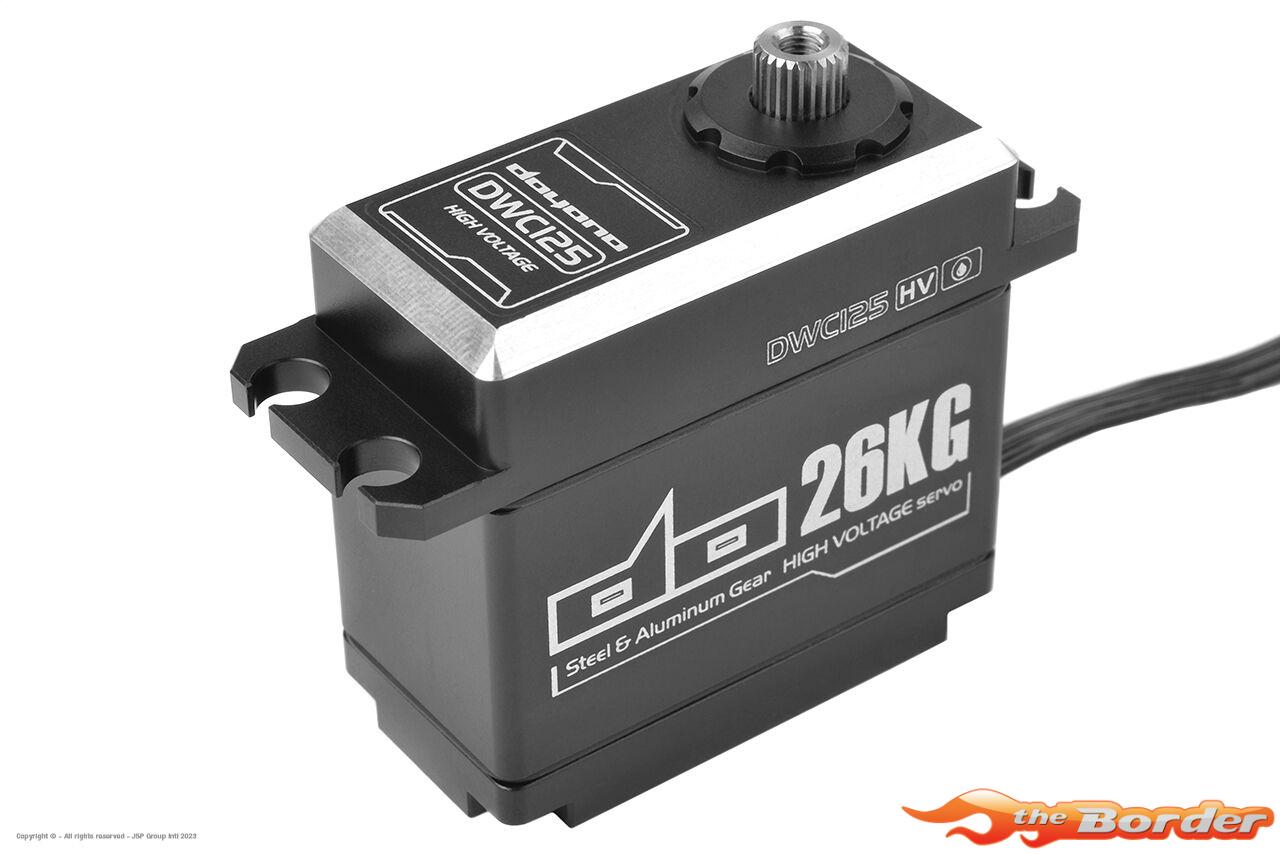

Doyono Digital HV Servo full Metal 26KG/0.14sec DWC125

Doyono presents a range of top-tier servos available at an exceptionally competitive price. This robust, high-voltage servo is capable of delivering up to 26kgcm of torque and is powered by a coreless motor. It features a gear system crafted from a blend of durable aluminum and steel, all encompassed within an aluminum housing. This meticulous construction ensures optimal performance, resulting in an elevated driving experience.

Key Features:
• High Voltage Servo
• Gears made from resilient aluminum and steel
• Lightweight aluminum housing
• Waterproof design
• Operating Voltage: 6.0-7.4V
• Precise 2µs dead band, centered at 1520µs
• 360mm connection wire length for enhanced flexibility in installations

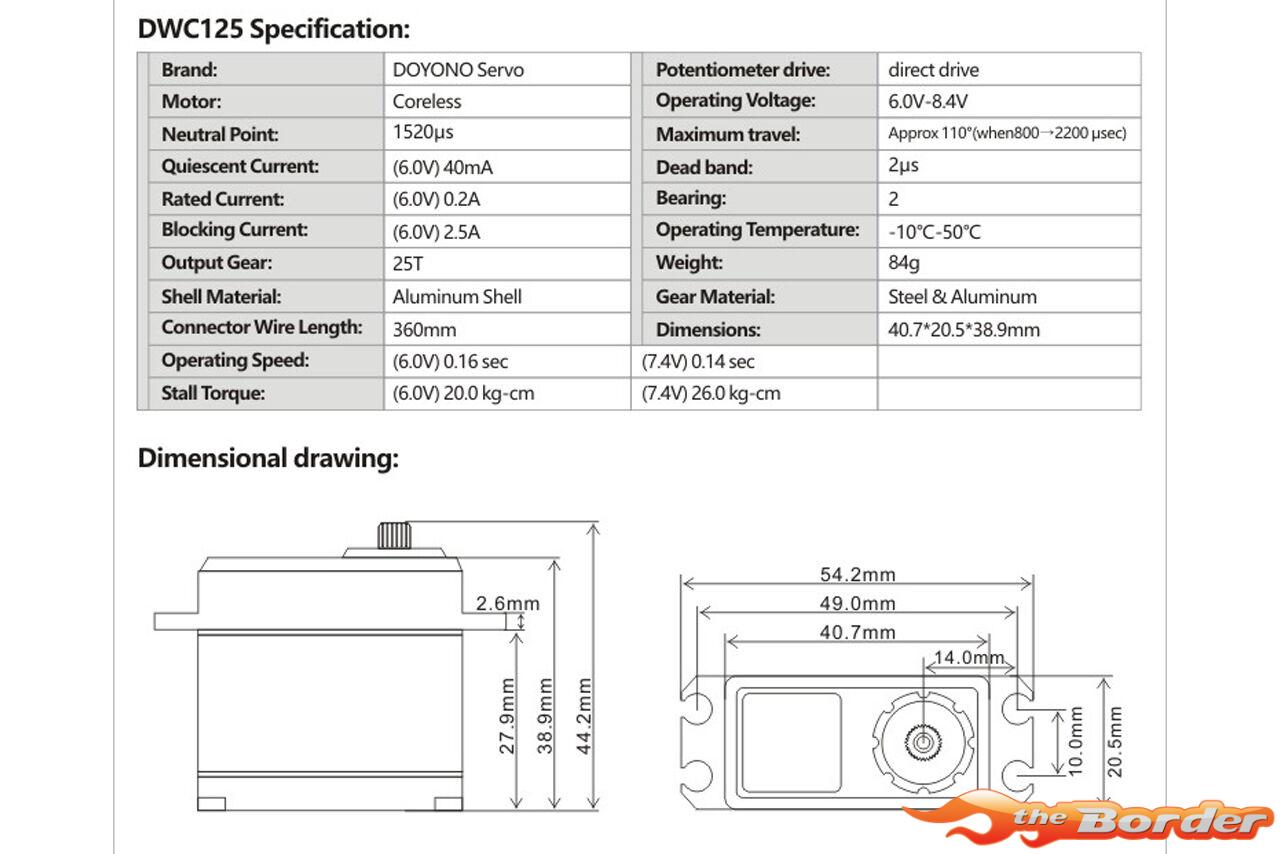

Technical Specifications:

Servo – Dimensions

Servo Type Standard Servo
Spline Type 25T Spline
Length (mm) 40,7
Width (mm) 20,5
Height (mm) 38,9
Weight (g) 84
