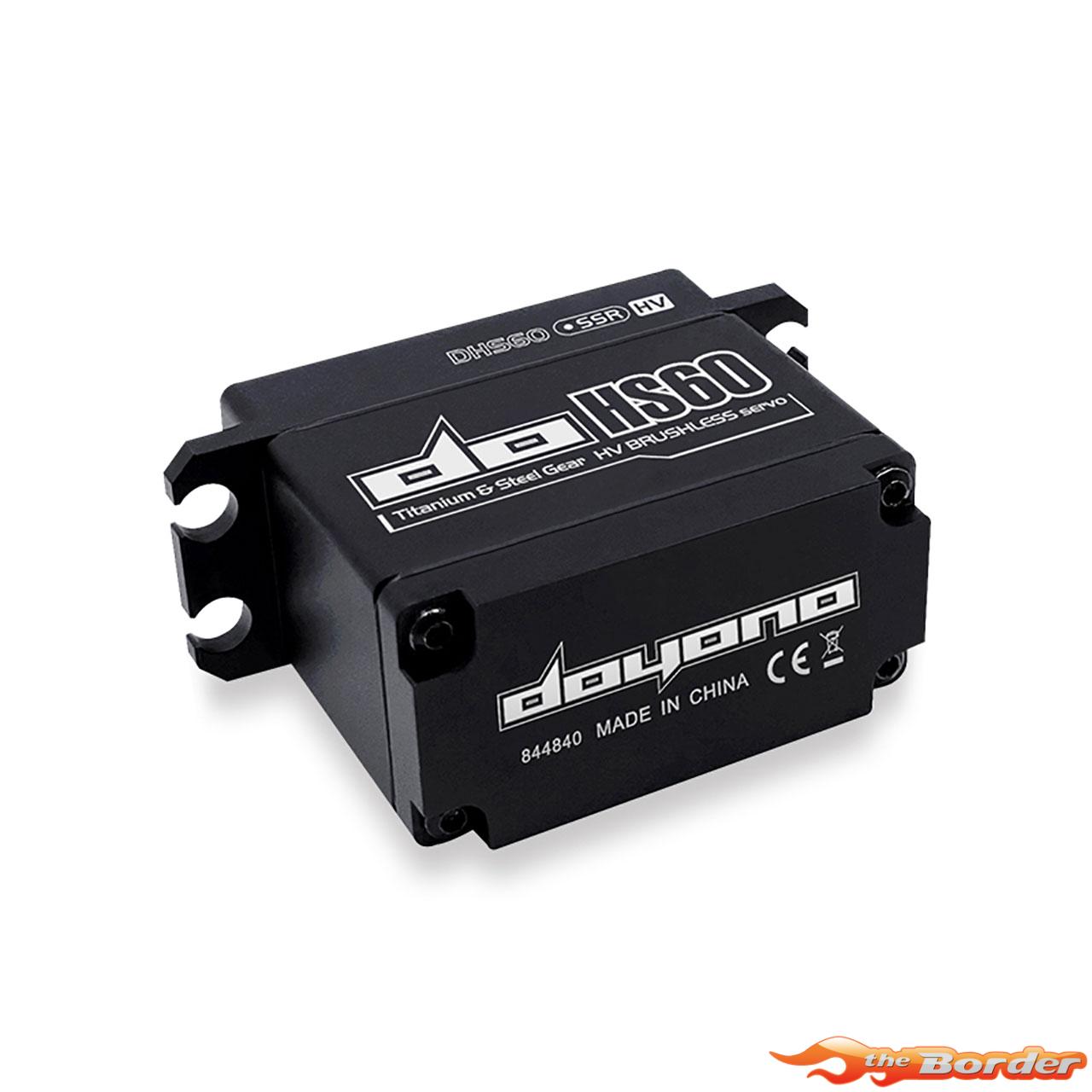

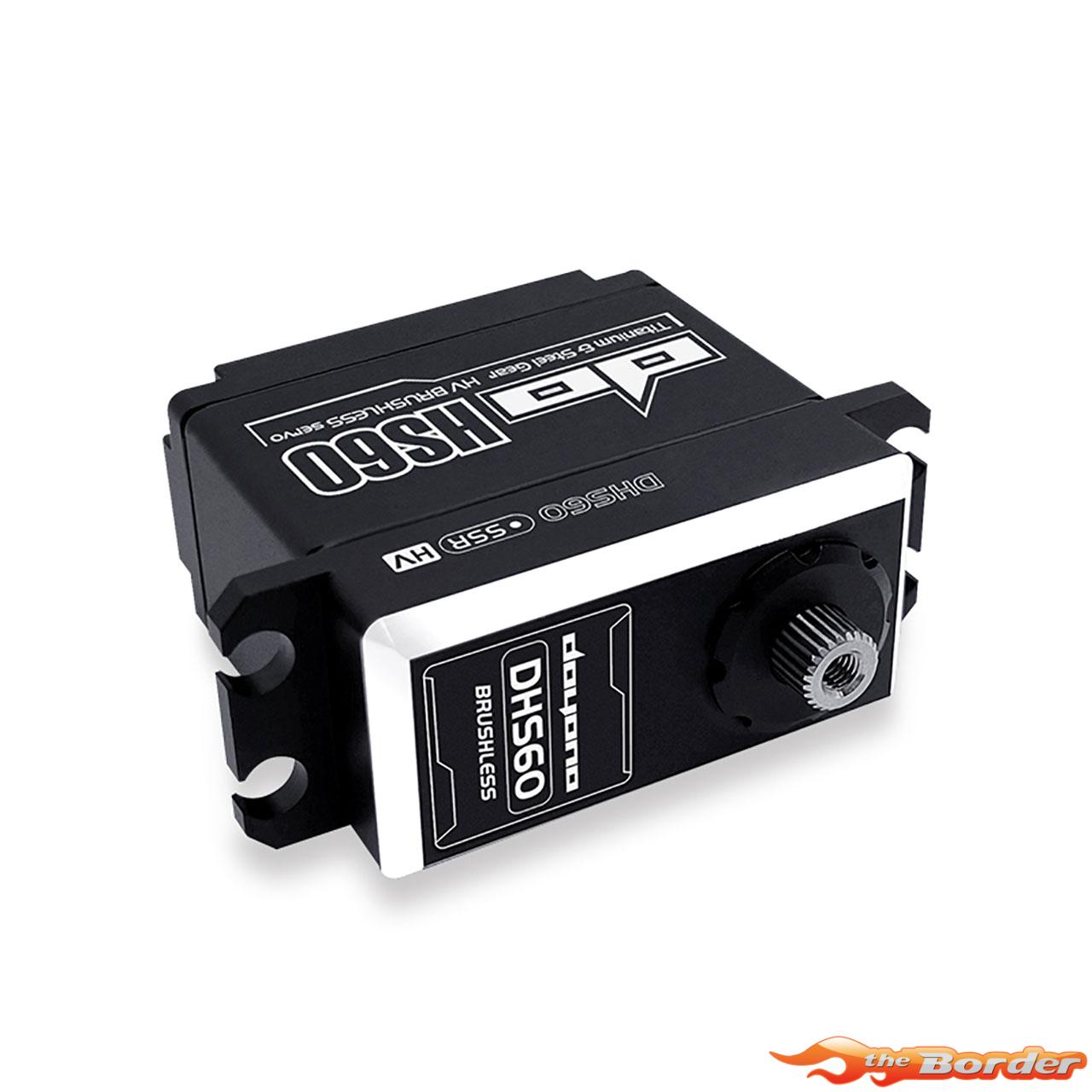

Doyono HV Brushless Servo Full Metal 60KG/0.0068sec DHS60

€ 86,95 inc. BTW

Uitverkocht

Want to be notified when this product is back in stock?

Stel een vraag over dit product

Doyono HV Brushless Servo full Metal 60KG/0.0068sec DHS60

Doyono offers high-quality servos at a low price. This powerful, high-voltage servo up to 60kgcm and coreless motor has a titanium steel gear and an aluminum housing. As a result, it ensures the right performance and thus also a lot of driving pleasure.

Features:

  • High Voltage Servo
  • Gears made of durable aluminium and steel
  • Lightweight aluminum housing
  • Waterproof
  • Operating Voltage: 6.0-7.4V
  • 2µs dead band, 1520µs neutral point
  • 360mm connection wire length

Technical Specifications:

Voltage: 6.0V 8.4V
Speed: 0.096sec 0.068sec
Torque: 46.0kgcm 60.0kgcm
Motor: Brushless
Gear: Titanium / Steel
Bearing: yes, dual
Max. Travel: ~110° (bei 800: 2200µs)
Quiescent Current: 60mA @6.0V
Rated Current: 0.2A @6.0V
Blocking Current: 3.6A @6.0V
Dimensions: 40.7×20.5×38.9mm
Weight: 84.0g
Output Gear: 25T
Application: 1/5 & 1/8 Off-Road
