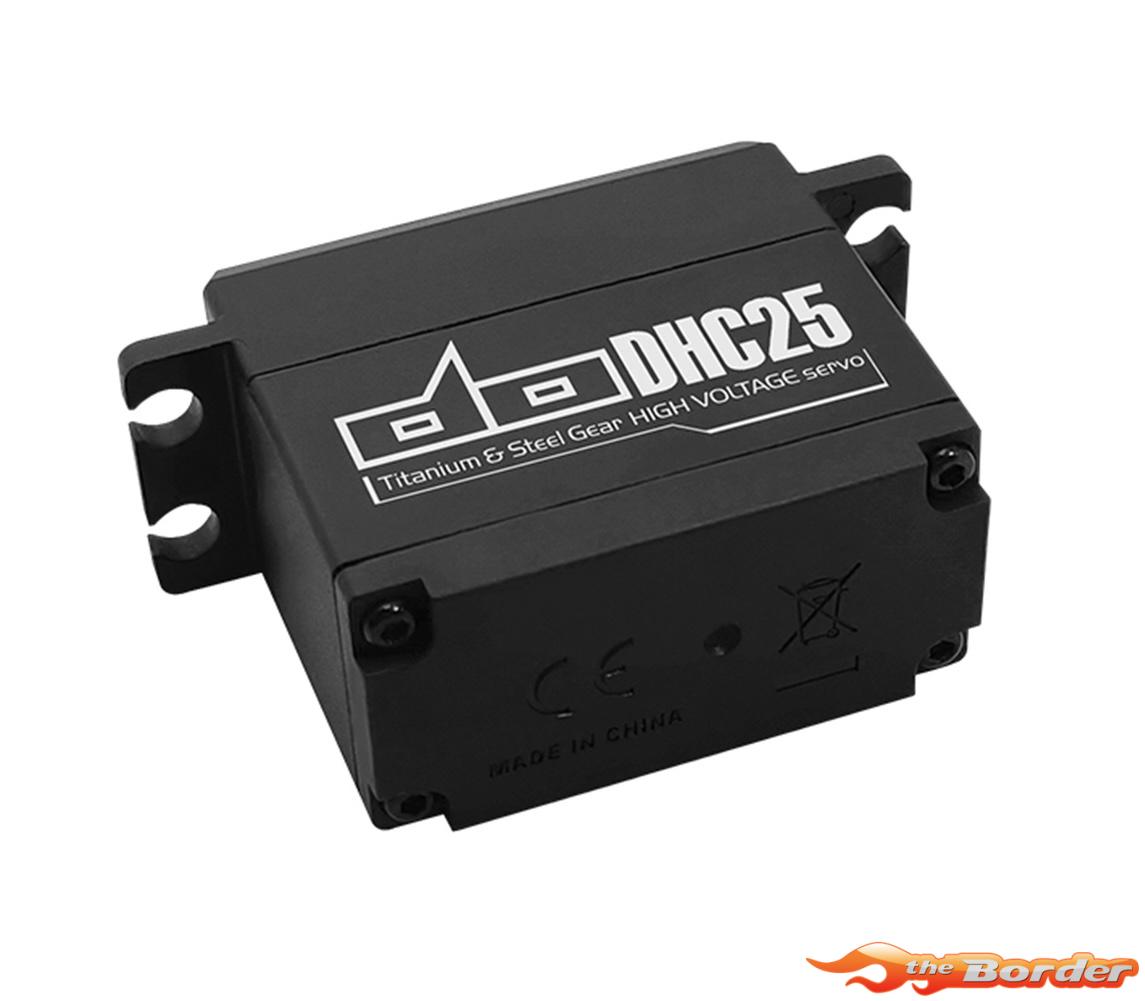

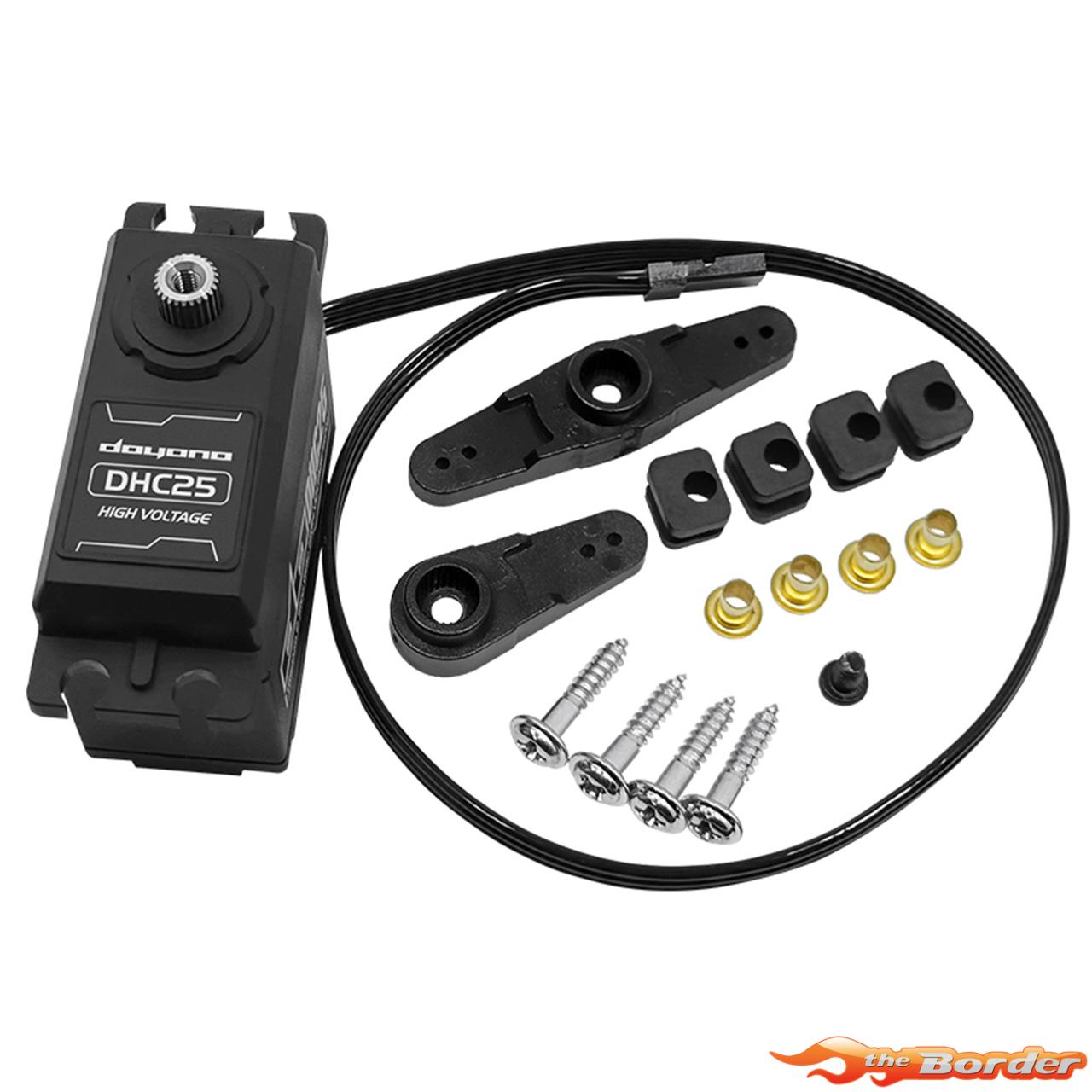

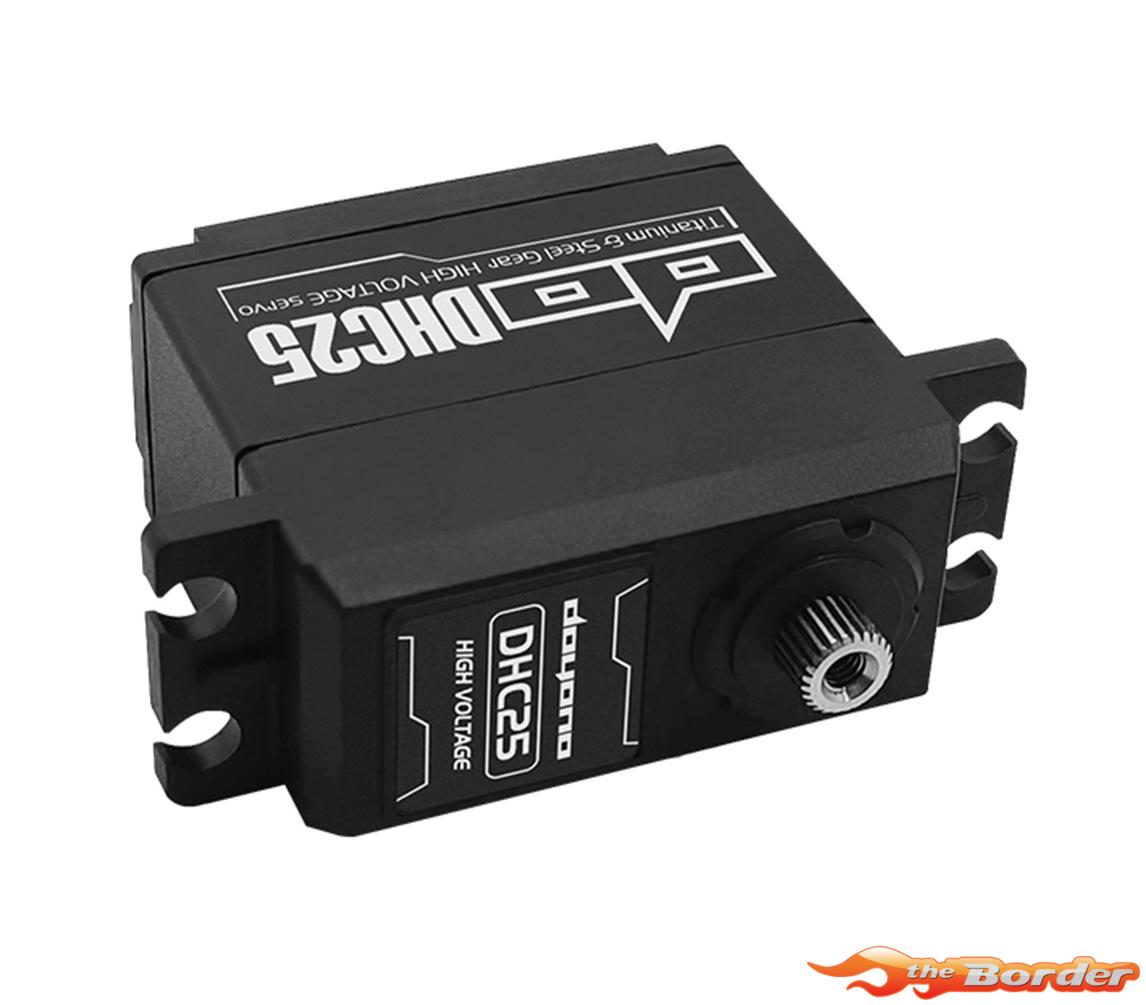

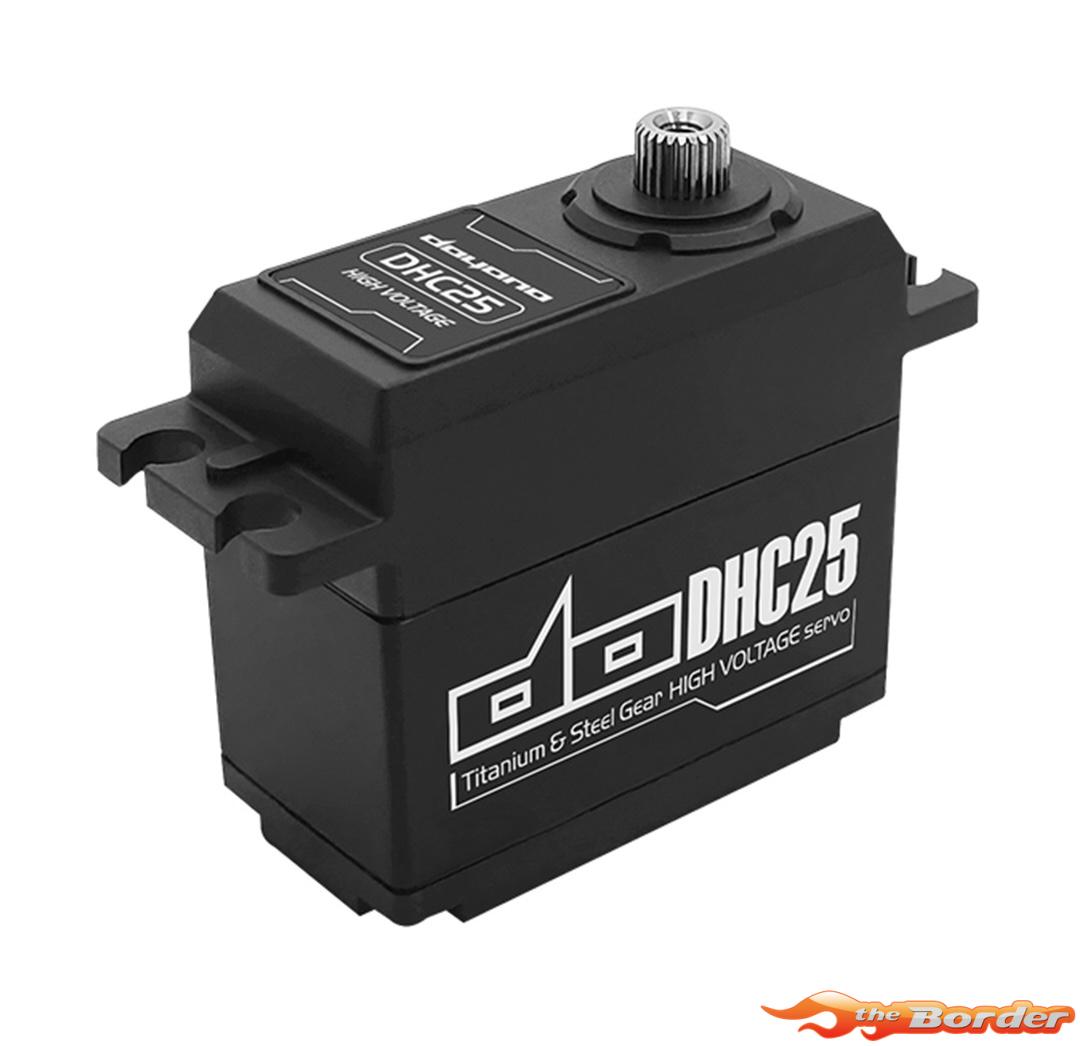

Doyono HV Servo Full Metal 32KG/0.102sec DHC25

Doyono offers high-quality servos at a low price. This powerful, high-voltage servo up to 70kgcm and coreless motor has a titanium steel gear and an aluminum housing. As a result, it ensures the right performance and thus also a lot of driving pleasure.

Features:

  • High Voltage Servo
  • Gears made of durable titanium and steel
  • Lightweight aluminum housing
  • Water & dust resistant
  • Operating Voltage: 6.0-8.4V
  • 2µs dead band, 1520µs neutral point
  • 360mm connection wire length

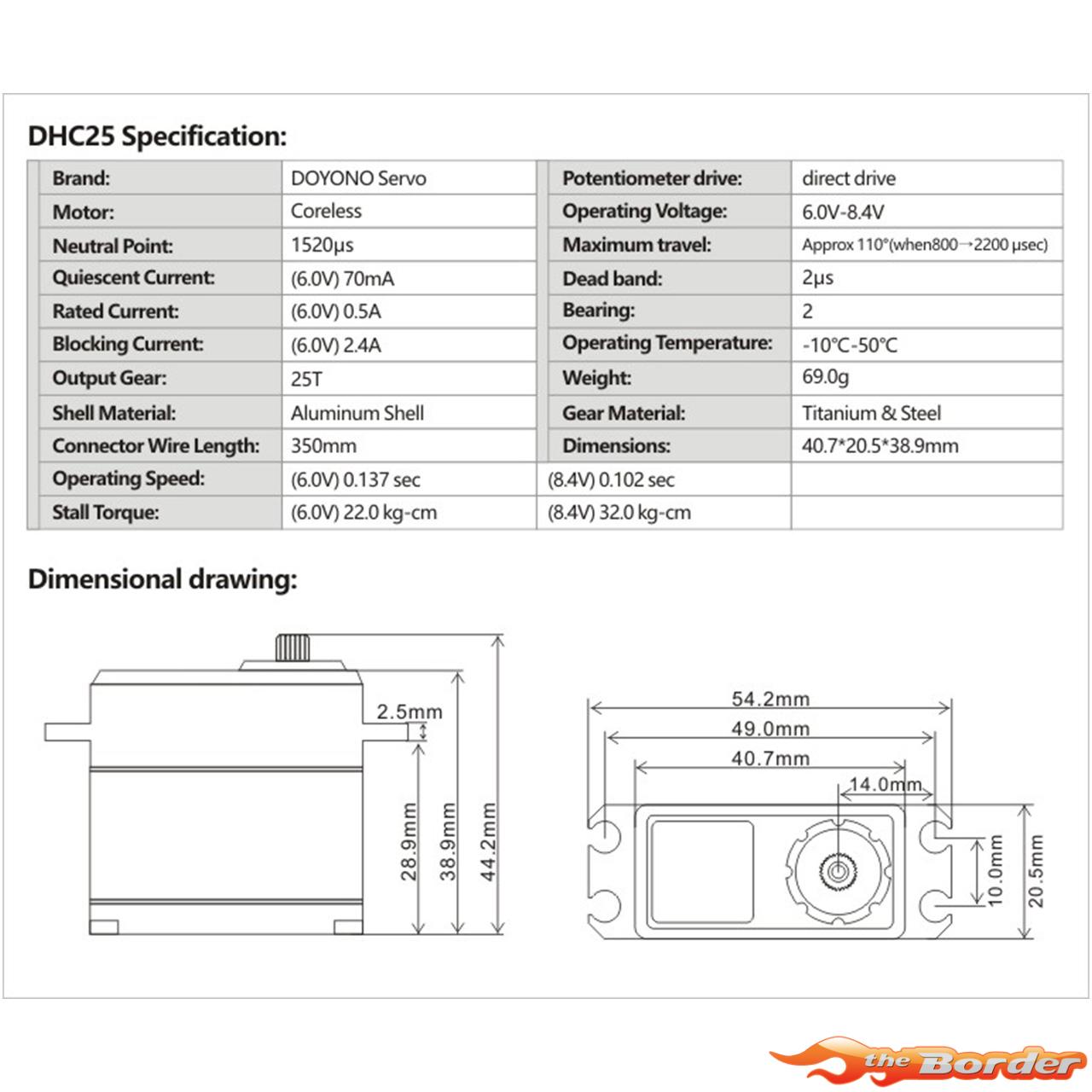

Technical Specifications:

Voltage: 6.0V 8.4V
Speed: 0.137sec 0.102sec
Torque: 22.0/kgcm 32.0/kgcm
Motor: Coreless
Gear: Titanium / Steel
Bearing: yes, dual
Max. Travel: ~110° (when 800: 2200µs)
Quiescent Current: 60mA @6.0V
Rated Current: 0.5A @6.0V
Blocking Current: 2.4A @6.0V
Dimensions: 40.7×20.5×38.9mm
Weight: 69.0g
Output Gear: 25T
Application: 1/5 & 1/8 Off-Road
