Futaba T4PM 2.4GHz With Receiver R304SB 4channel 01000031

Futaba T4PM 2.4GHz With Receiver R304SB 4channel 01000031

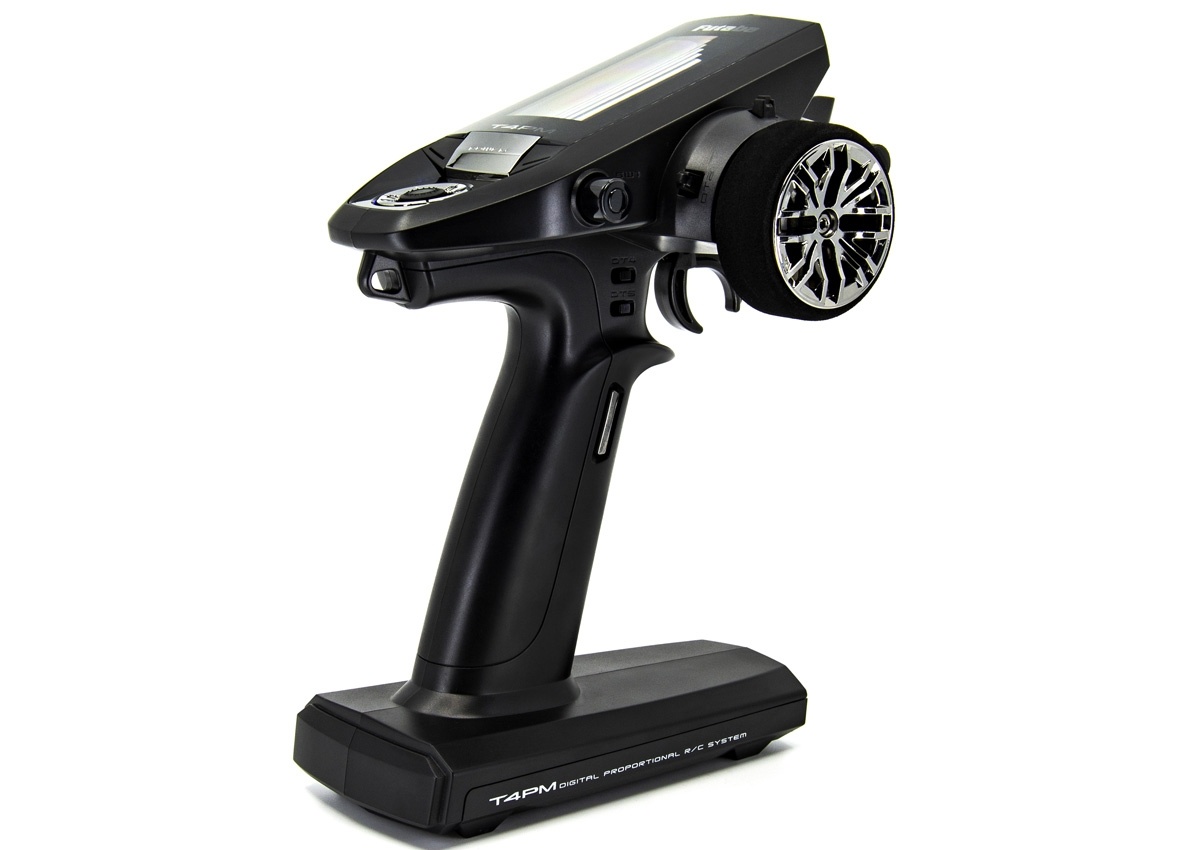

With the Futaba T4PM, the step into the professional class is a success. The pistol transmitter is ergonomically shaped and sits perfectly in the hand, even during long periods of racing. The large LC display with backlight and the buttons on the top allow intuitive programming of all parameters.

The T4PM is equipped with the ultra-fast signal transmission T-FHSS SR (only in connection with the optionally available receiver R334SBS or R334SBS-E). With T-FHSS SR, the response behavior of the model is even more direct with maximum transmission security at the same time!

The different transmission types offer the following options:

> T-FHSS-SR – 4 channels without telemetry at maximum transmission speed > T-FHSS – 4 channels with telemetry > S-FHSS – 4 channels without telemetry

With a speed of 2.45 ms, the transmission type T-FHSS SR (Super Response) is noticeably faster than the previous T-FHSS system with 4.15 ms.

To take full advantage of the speed of Futaba T-FHSS SR technology, there are numerous FUTABA SV servos that can also be switched to SR mode. The following servos are currently SR compatible: BLS371SV, BLS471SV, BLS571SV, BLS671SV, BLS671SVi, BLS373SV, S9372SV, S9373SV, HPS CB700, HPS CT700, HPS CB500, HPS-CT500

Technical specifications
Type of transmission: T-FHSS / T-FHSS-SR / S-FHSS Frequency range: 2.4 GHz Channels: 4 Transmission power: 100 mW EIRP Voltage range: 4.5 V Weight: 390 g

features
4-channel computer remote control system Professional features for competitive drivers Transmission types T-FHSS / T-FHSS-SR / S-FHSS Receiver R304SB Telemetry functions with optional sensor: temperature, speed, receiver battery voltage Telemetry output via loudspeaker, display or headphones S.BUS connector Integrated antenna in the transmitter housing SD card reader 40 model memory locations 2 driving states Navigation via JogStick Fail Safe Fail Safe 4WS steering mixer for crawler mixer for brakes mixer for gyro support CPS-1 LED control mixer for Ackermann drift mixer Probably the lightest transmitter in this class

scope of delivery
Transmitter T4PM Receiver R304SB Battery Holder Instructions
