ERGONOMIC HOUSING

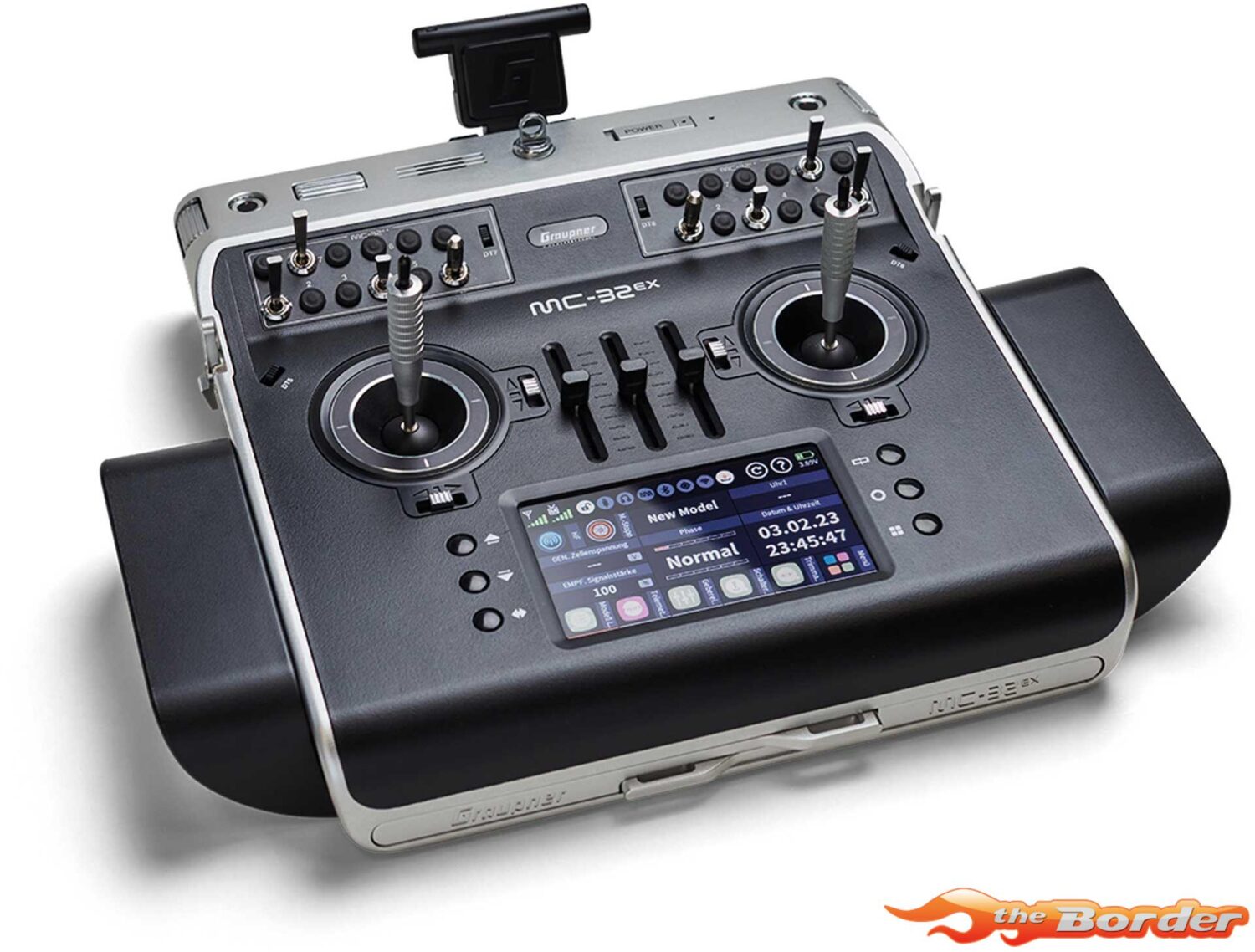

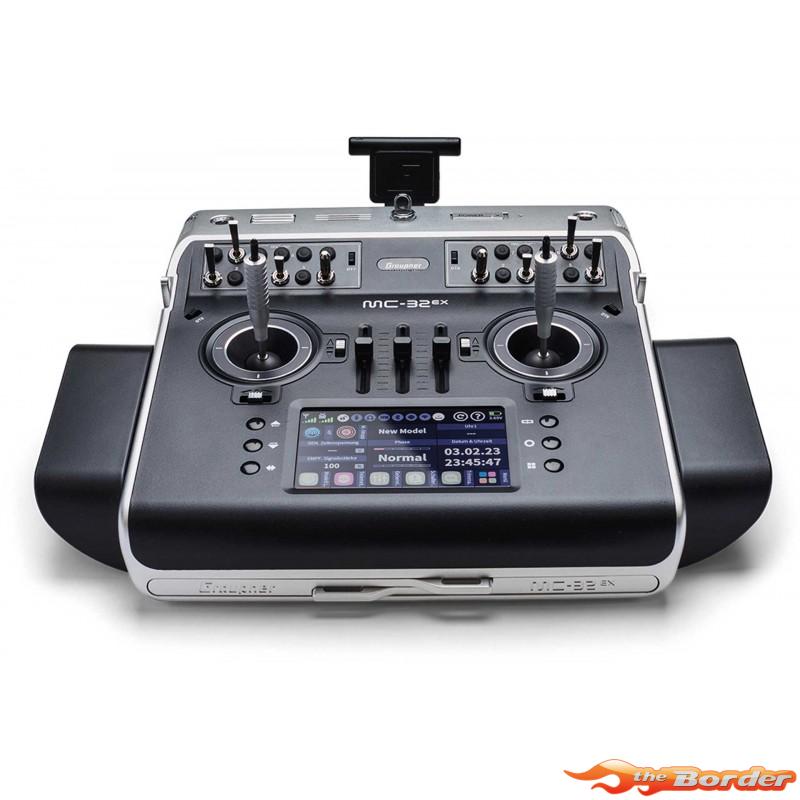

Were you expecting a completely new design for the new mc-32 EX? The entire Graupner team unanimously decided against it without much discussion! This is because the design of our console transmitters was created in 2008 by a Swabian design office together with world champion pilots, who paid full attention to the ergonomics of the transmitter. Every switch and every control is in the perfect position down to the last millimeter, as determined in numerous studies with model sport professionals. And for long-time mc users, the new mc also feels immediately familiar in the hand. The mc-32 EX is encased in a sturdy aluminum frame. The switches, buttons and displays are located in a high-quality plastic housing, which retains its pleasant feel even in extreme temperatures.
FULL POWER FOR UP TO 10 HOURS
The mc-32 EX HoTT is equipped with a dual, redundant 2.4 GHz HF system. A circular patch antenna and a linear antenna ensure enormous signal quality and increased range. A long day of fun is made possible by the included 9000mAh LiPo battery and allows you more than 10 hours of operation! The battery is also replaceable for hardcore pilots. So if you can do without sleep, you can get by for a whole day with 2 battery charges. By the way: when you change the battery, it doesn’t matter which way round the connectors are plugged in. The mc-32 EX is protected against reverse polarity by the circuit board layout.
YOUR INDIVIDUAL TOUCH DISPLAY

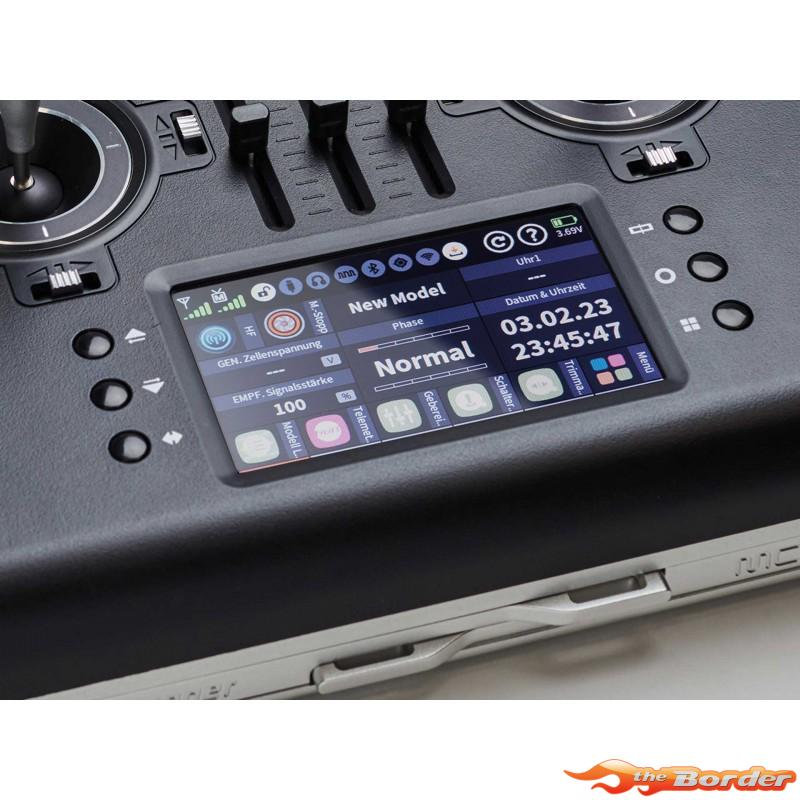

The large 4.3-inch TFT color touch screen provides convenient, easy and quick access to all the functions you need to set up your model perfectly for you. You have everything in view at all times! The display is perfectly readable even in direct sunlight. The highly optimized graphical user interface acts like your smartphone and gives you access to all menus and functions. Fast and clear, powered by a high-performance processor. Intuitive touch and swipe operation makes navigating through the menus quick and easy. Design your own up to 6 screens to display information important to you or generate menu shortcuts – all with a simple tap of the screen. The custom widget pages can be switched using the left-hand buttons and a freely programmable digital button or switch. The mc-32 EX HoTT contains over 100 widgets with which you can arrange your screens just the way you like them. – without programming on the PC! Fast – simple – intuitive. The menu can be set in German, English, French, Italian, Dutch, Portuguese, Czech, Chinese and Korean.
EXPAND YOUR HORIZON WITH YOUR SMARTPHONE

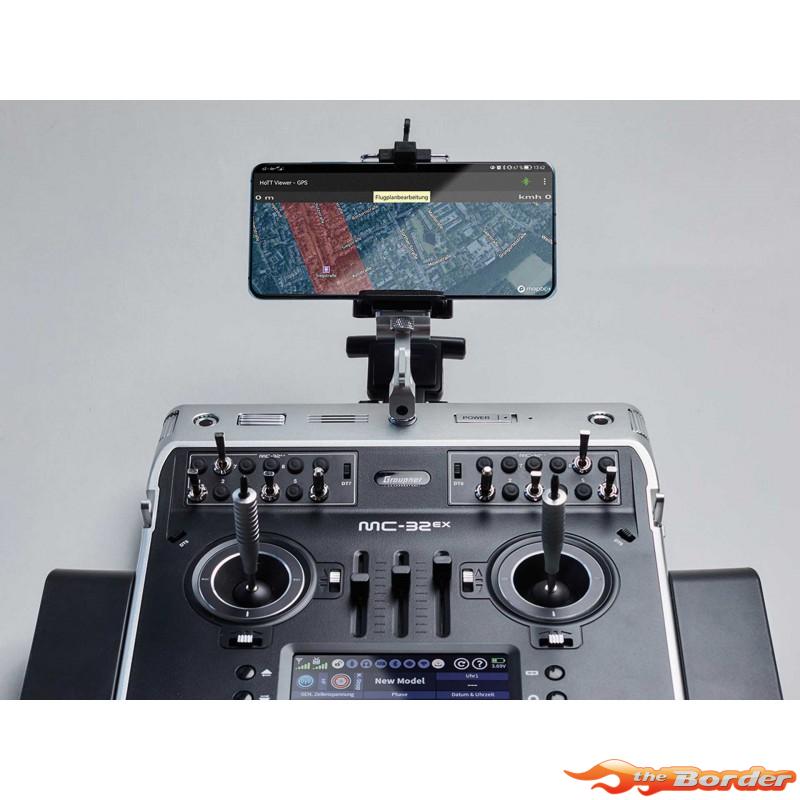

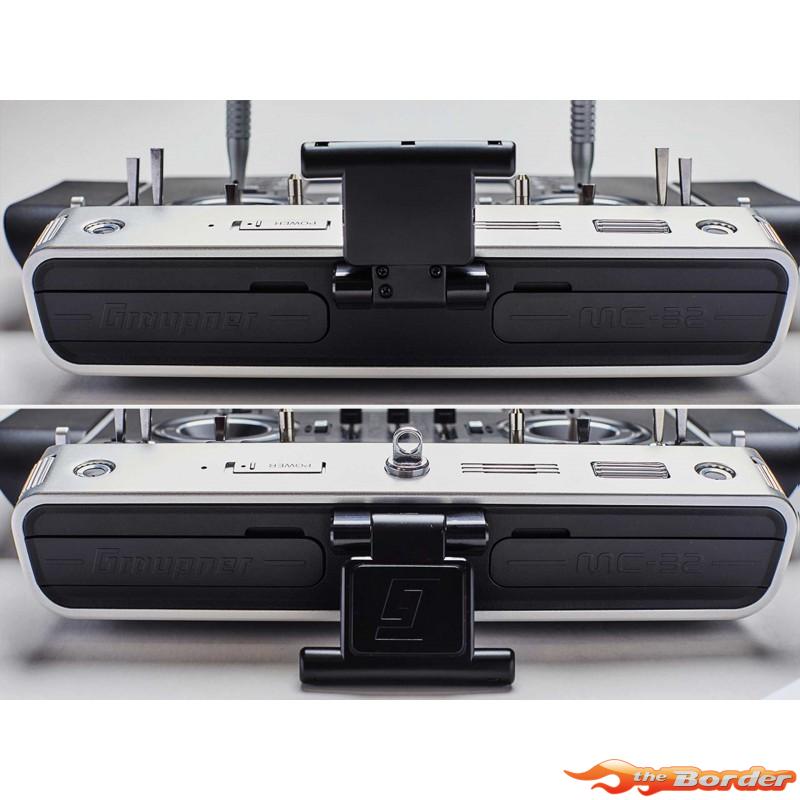

Need more data at a glance? Much of our everyday life runs via smartphone. We offer you the option of integrating your smartphone into your RC experience. There is a metal holder on the upper edge of the aluminum frame to which an optionally available smartphone holder can be attached. If your smartphone is securely inserted and connected via Bluetooth or USB cable, you can read important data via the Graupner HoTT viewer app during the RC action. The smartphone is positioned on the transmitter so that your eyes don’t have to stray too far from your model. Thanks to the steep viewing angle of the cell phone, the display is easy to read even in direct sunlight. The optional cell phone holder replaces the familiar mini display at the top edge of our old console transmitter generations. Practical experience and numerous tests with model builders have shown that this small display did not offer much added value. With your smartphone, you get a larger, easier to read and more functional display.
ENORMOUSLY COMPREHENSIVE VOICE OUTPUT
Hear what’s going on! The mc-32 EX HoTT offers an almost infinite number of configurable voice output options for the telemetry system and the transmitter status itself. Switch positions, flight phases, warnings, vario tones, telemetry information, user-definable voice output and much more. The mc-32 EX starts interacting with you from the moment it is switched on and informs you of incorrect stick or switch positions for the selected model. No surprises due to retracting landing gear, revving motors or incorrect gyro settings. If necessary, the mz-32 will even inform you if you have forgotten to lower your landing gear, if you are in danger of running out of range or if the battery voltage is dangerously low. These problems are a thing of the past! With over 600 installed voice files, you have an incredible variety of possible combinations of voice outputs. If necessary, you can create as many of your own files as you like with a “text to speech” editor and use them as you wish.
WIRELESS TEACHER/STUDENT FUNCTION
The future of our beloved hobby belongs to the next generation. It is therefore important to carefully introduce young people and newcomers to model flying. For the first RC attempts, it is a good idea to support the new pilot with a second remote control in order to be able to help or intervene in an emergency. All our Graupner transmitters can be connected to each other with a teacher/student function. And completely wireless!
ALWAYS UP-TO-DATE
As an mc-32 EX user, you will of course be provided with the latest functions and updates. Completely free of charge! As soon as an update is available and your transmitter is connected to the WLAN, you will receive a message on the transmitter display asking whether you want to carry out the new update at the touch of a button. TIP: If you want to carry out an update, it is advisable to make sure you have sufficient battery capacity or a direct power supply. However, if your transmitter “runs out of juice” during the update, this is not a problem. The update can be continued at the same point.
QUICK HELP
Do you need help with programming or settings? You don’t need thick manuals or hours of searching on the Internet! The mc-32 EX offers you help right where you need it. Each menu and each option has its own help text available directly on the screen. Tap on the question mark and you will be shown the appropriate help and support. Would you like other help texts? The texts can easily be adapted or extended. The mc-32 EX is there for you and gives you the opportunity to do what you want and prefer to do. Connectivity that takes you further!
Features of the hardware
– 4-way ball-bearing aluminum stick units with Hall sensors and a resolution of (12-bit) 2400 steps or 0.5us servo pulse for precise control
– Adjustable mode and adjustable stick spring forces by simply opening the rear panel, without screws.
– Sun-readable 4.3 inch color TFT touch display
– 2 redundant 2.4 GHz HF modules
– One circular polarized patch antenna and one transverse antenna with adjustable beam angle
– 9000mAh 1S3P LiHV battery for transmitter operating times of approx. 10h
– USB type C port with charging function, PC interface (e.g. for updates, flight simulators, etc.), USB joystick function, mass storage function
– Headphone socket
– WLAN-capable: for firmware updates
– Bluetooth-capable (e.g. for Bluetooth headphones or Android™ HoTT Viewer smartphone app)
– Wireless teacher/student function and DSC socket for teacher/student operation
– User-definable data socket for external modules e.g. Crossfire or ELRS module
– Internal 16 GB SD card
– mp3 and wav player
– Loudspeaker for voice messages and telemetry announcements
– User-definable haptic feedback (vibration alarm)

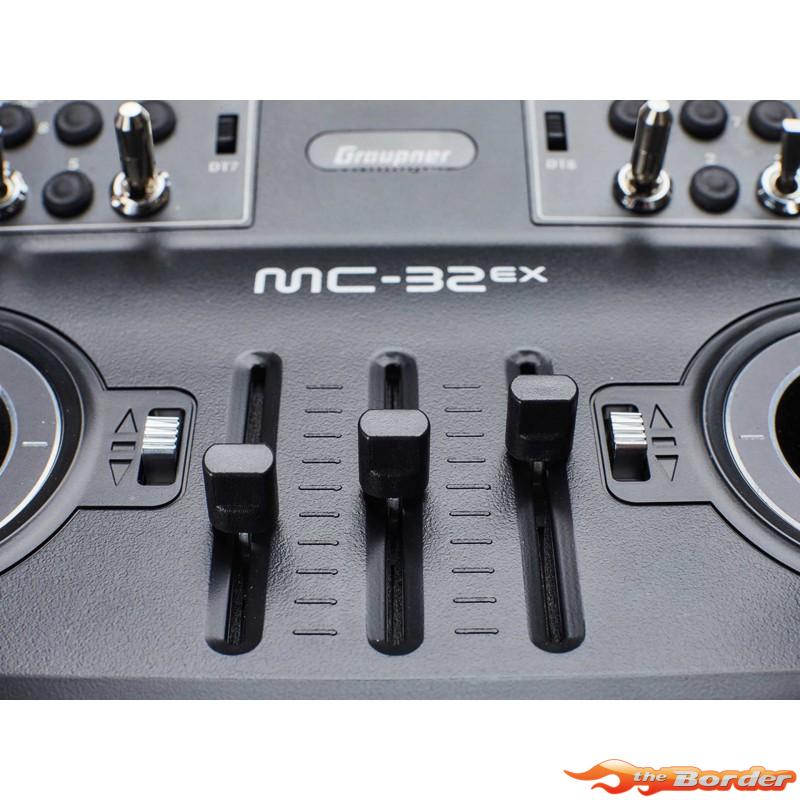

– 4 x 3-way switches, 2 x 3-way switches/buttons, 2 x 2-way switches, 4 x proportional rotary encoders, 2 x lateral rotary encoders, 3 sliders, 8 user-definable digital buttons, 6 navigation buttons
– Smartphone holder optionally available
Features of the software
– 32 proportional control channels
– 64 user-definable digital switches
– 999 model memories
– Extensive voice output
– Binding of up to four receivers for channel expansion (max. 32 channels and 64 digital switches). The selected receiver transmits the telemetry data.
– Switchable telemetry via channel 16
– Servo frequency 10ms or 20ms for analog servos
– Model-specific, group or global binding mode
– Model types: Model aircraft, helicopter, multicopter, vehicle, boat
– Helicopter program with all swashplate controls, throttle curve, pitch curve, tail rotor mixer, gyro fade-out, etc. – Flying is therefore possible with and without FBL
– 12 customizable phases (levels) with 16 free mixers each (192 mixers in total)
– 8 wing types, 6 delta wing types, 3 tail types
– Multi-engine control (4)
– 6 user-definable display pages with numerous selectable widgets
– Context-related help texts easily accessible via “?”
– Servo balancing
– 8 phase-dependent trim functions and 5 trim types
– 6 phase-dependent, adjustable clocks
– 8 phase-dependent quad rate and expo settings
– 16 phase-dependent curve mixers
– 8 dual mixers
– 3 channel sequencers
– 3 ring limiters
– 12 combination switches programmable from up to four switches
– 12 logical switches
– 12 sensor switches (digital or linear output)
– 4 snap-roll mixers
– 8 area and master mixers
– 8 assignable and configurable system warnings
– 8 assignable and configurable user warnings
– 8 assignable and configurable global and phase-dependent encoder announcements each
– 8 assignable and configurable global and phase-dependent voice announcements each
– Vario and control menu with dead zone setting
– Wireless setting of receivers, telemetry and flight controllers in real time
– Integrated file manager
Maximum safety
– Extremely long range
– FHSS, frequency hopping over up to 75 channels
– Maximum interference immunity thanks to optimized frequency hopping, wide channel spread and antenna diversification
– Intelligent data transmission with correction function
– Range test and warning function
– Undervoltage warning
– Extremely wide receiver operating voltage range from 3.6 V to 8.4 V (functional up to 2.5 V)
– Numerous fail-safe functions
Highest precision
– Shorter response times can be set (10 ms period time)
– No additional delays due to module processors. The entire hopping management is carried out directly by the 32-bit main processor.
– Synchronous servo run possible by simultaneous control of the servo outputs in blocks of 4
Unique pilot feeling
– Largely delay-free control reactions thanks to direct processing
– Telemetry evaluation in real time
– Wireless teacher/student function
