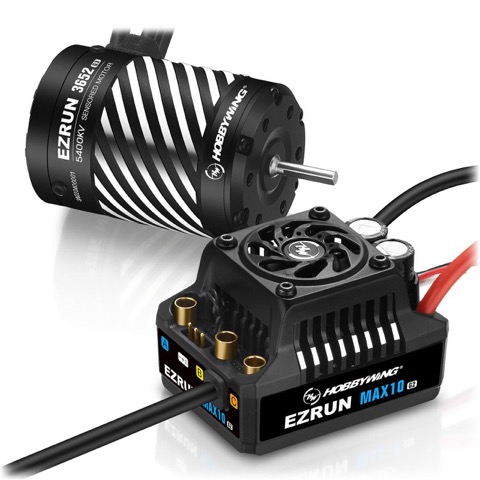

Hobbywing Ezrun MAX10 G2 80A Combo with 3652SD 5400kV 3,175 shaft 38020348

Hobbywing Ezrun MAX10 G2 80A Combo with 3652SD 5400kV 3,175 shaft 38020348

Product information “Hobbywing Ezrun MAX10 G2 80A Combo with 3652SD-5400kV 3.175 shaft”
The second generation 80A Ezrun Max10 ESC combo is here, bringing with it a host of updates and tweaks that make driving 1/10 short courses and trucks even more enjoyable. The controller is supported by a 3652SD motor with 5400kV.

In a direct comparison to the regular MAX10 combo, it becomes clear that the sensor mode and the accompanying waterproof cable have been heavily revised and now ensure great throttle response. The fantastic acceleration with stable output power as well as the nice linearity at low speeds are also among the aspects that have been particularly improved here. When it comes to heat development, the MAX10 G2 Combo doesn’t easily outperform any other comparable product. This is partly due to the optimizations in the design and of course also to the larger capacitors.

The perfect introduction to get started right away in the 1/10 range!

Features:

Improved sensor
Excellent throttle response
Even faster with constant output power
Larger capacitors with up to 74% more capacity
Turbo timing adjustment up to 32°
4-pole rotor for high torque
Easily dismantled motor for maintenance work
Technical specifications:

Controller (80A)
Type: Brushless Sensored
Current (continuous/peak): 80A/520A
Number of cells: 2-3S LiPo
Motor limit: 2S LiPo: <= 6000kV
3S LiPo: <= 4200kV (3652 motor)
BEC: 6V/7.4V, 5A
Battery connector: XT60
Dimensions: 53×39.5×37.2mm
Weight: 120g
Waterproof: Yes, according to IP67
Use: 1/10 On-Road/Off-Road Short Course Truck (Light)

engine
Type: Brushless, Sensored
Speed: 5400kV
No-load current: <=6.8A
Number of cells: 2S LiPo
Number of poles: 4
Length: 53mm
Diameter: 37mm
Shaft diameter: 3.175mm
Weight: 227g
Use: 1/10 On-Road/Off-Road Short Course Truck (Light)
Scope of delivery:

1x Ezrun MAX10 G2 ESC with 80A
1x 3652SD G3 motor with 5400kV
1x user manual (English)
