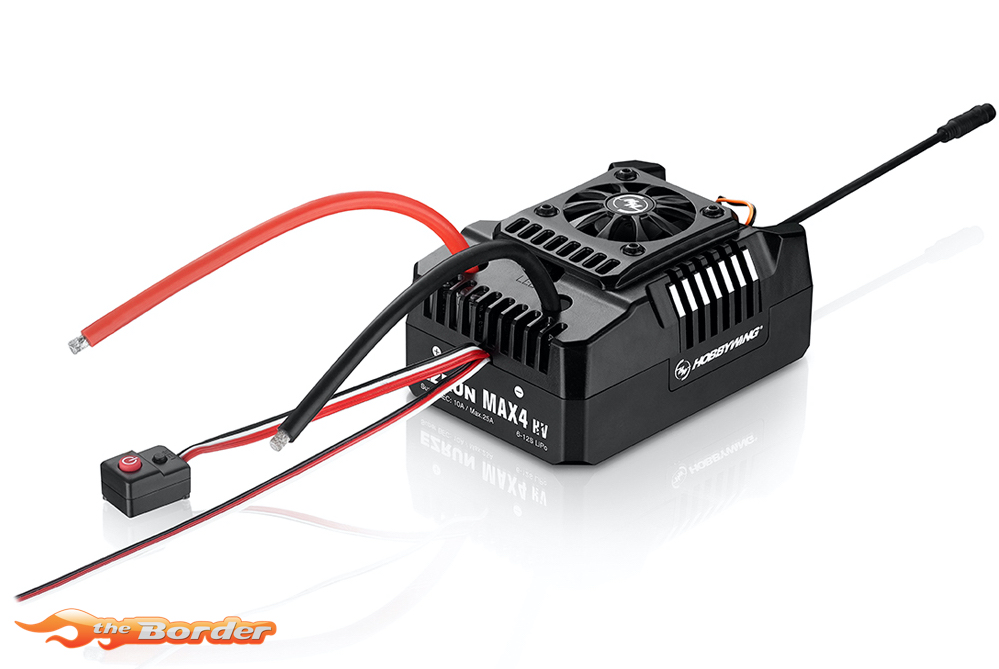

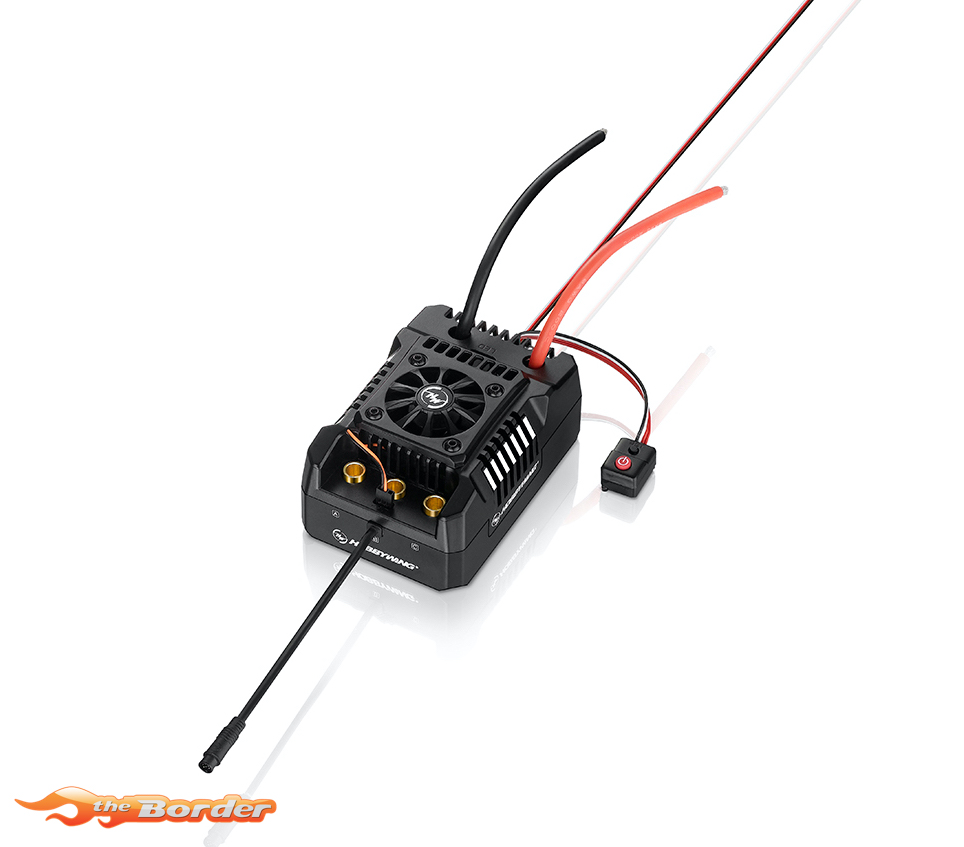

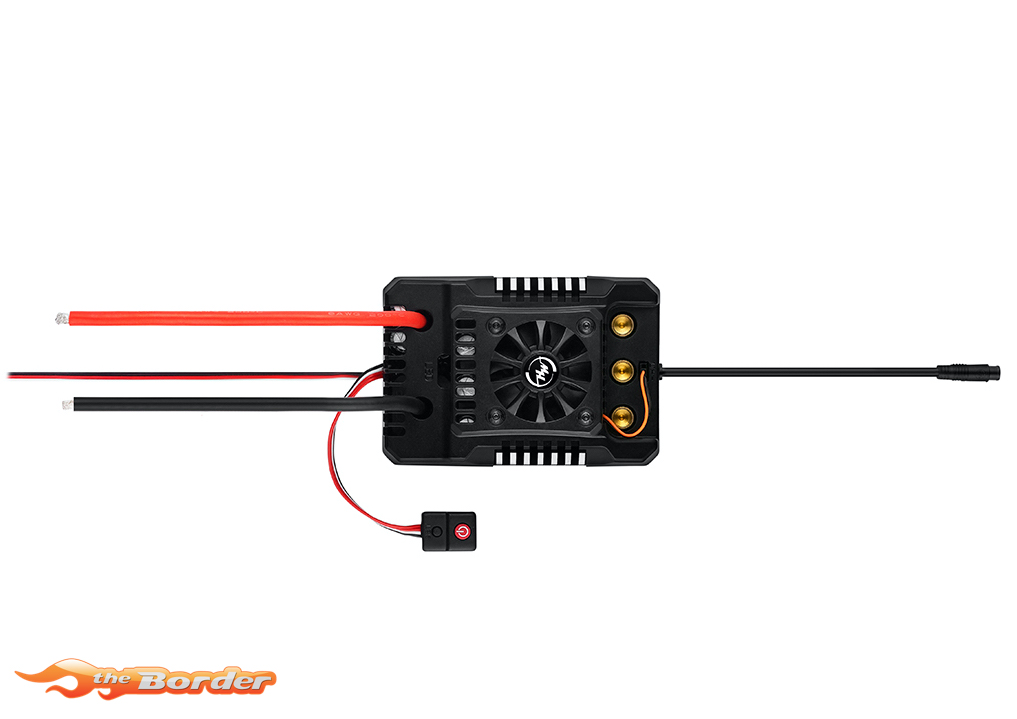

Hobbywing EZRun MAX4 HV ESC 30104002

Hobbywing EZRun MAX4 HV ESC 30104002

The Max4 HV ESC is the most sought-after ESC on the market. It’s dynamic and dominant specifications meets the needs of power-hungry users. It has a strong output power with excellent linearity at low speed and is operating on full-sensored mode.

Aggressive launch
High speed on the straight line
Flying slopes

Extremely powerful and extremely low temperature

The internal circuitry board of the ESC has been integrated to use copper thermal conduction sink. These are built into high-reliability thermal systems to ensure that it is always in good thermal condition while supplying a maximum output current of 300A.

High Reliability & Durability

Max4 HV is the most durable(hardware) and advance(software) ESC on the market. The ESC is built using the highest quality of materials available to withstand extreme weather /surface conditions. Together with the most advance software developed by our in-house engineers, we have created multiple overloading functions to protect the ESC from damaging.

Applicable to All Weather Track Conditions

The IP-67 waterproof system guarantees excellent waterproofing and dustproofing protection. The whole power system is able to drive on a variety of surfaces including muddy, sandy, icy, snowy and water without damaging the power unit.

Programming / Upgrading / Data reading wirelessly

With Hobbywing’s OTA module and smartphone (with the HOBBYWING HW Link App installed), the user can program parameters, upgrade firmware and heck relevant data of the ESC.

Real-time data & data logging function, easy to get the power running status.

After connecting the OTA module, turn on real-time data recording function to access the operating status.

Capacitor Thermal Protection

Capacitor thermal protection implemented by the ESC will effectively prevent capacitors from exploding and causing irreversible damage to the ESC due to overload.

Superior Built-in BEC

The ESC has a built-in BEC which can support a maximum output current of up to 25A and the output voltages are switchable between 6V, 7.4V and 8.4V. This ensures that the ESC is able to support the demanding high-torque servos in the market.

Built-in spark-proof design

The built-in spark-proof circuitry is able to prevent damaging the battery connectors as well as physical injury (to finger) caused by strong electrical sparks upon connecting to a “high voltage” battery pack (6-12S).

Advanced and Secured Electronic Switch

The all-new advanced and secured electronic switch features a longer lifespan compared to the standard switch. The dust, dirt, and waterproof switch housing ensures reliable and longer life and eliminates unwanted damages. Heavy impact or harsh surfaces will no longer affect and damaged the switch. Users will be able to enjoy bashing their RC cars.

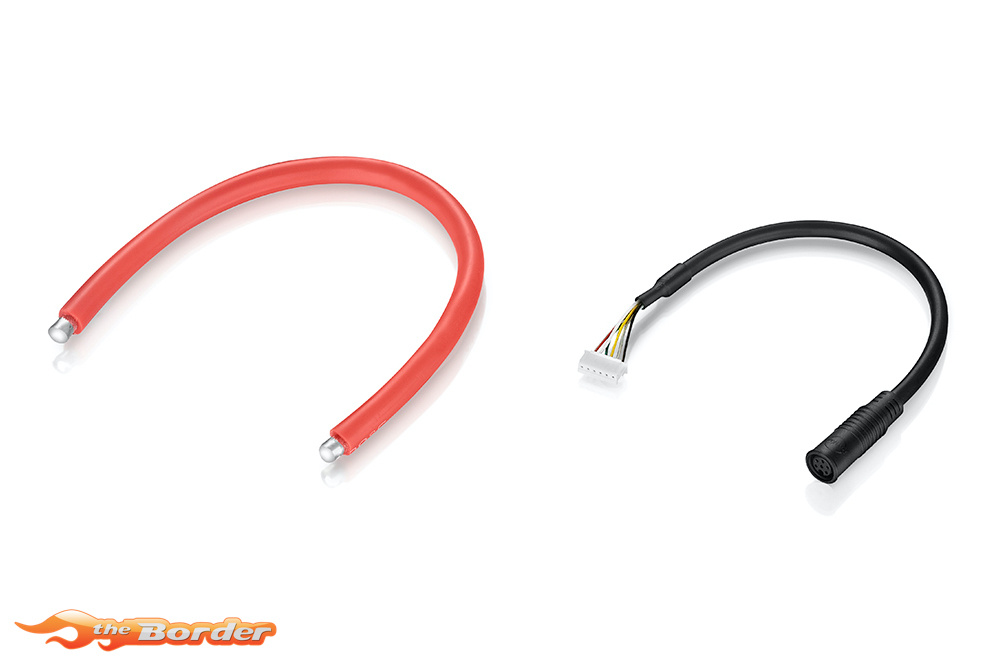

New sensored cable interface

The MAX4 HV ESC is equipped with a new type of sensored cable interface. It is high recommended to use the motors from Hobbywing as the waterproof protection level is at the highest level (IP67).

Specification
Scale – 1/5th
Brushed/Brushless – BL
Sensored/Sensorless – SD
Waterproof – Yes

Specifications
Cont./Peak Current – 300A/2000A
Input Voltage – 6-12S Lipo
BEC Output – Switch Mode: 6V/7.4V/8.4V adjustable, continuous current 10A (Switch-mode)

Wires & Connectors
Input Wires – Red-8AWG-200mm*1/Black-8AWG-200mm*1
Output Wires
Input Connectors = No
Output Connectors – 8mm Fold (female)
(Note: All the wire length above is the original length not the length you see from the outside.)

Fan
Size – 50x50x10mm
Voltage Range – 6-8.4V
Powered by – BEC

ESC Programing via

SET Button on ESC Not Supported
LED Program Box Supported
LCD Program Box Supported
WiFi Module Supported
OTA Programmer – Supported
Program Port Fan/Program Port

Firmware
Firmware Upgrade – Supported

Size & Weight
Size – 125mmx85mmx61.7mm
Weight – 775.4g

Applications

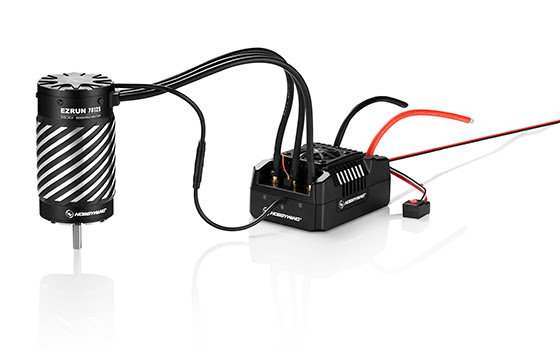

Motors Sensored brushless motors / Sensorless brushless motors
Vehicles – 1/5th off-road, trucks (heavy loads)
KV Rating/T Count – 12S LiPo: KV ≤ 600KV(70125 Size Motors)
