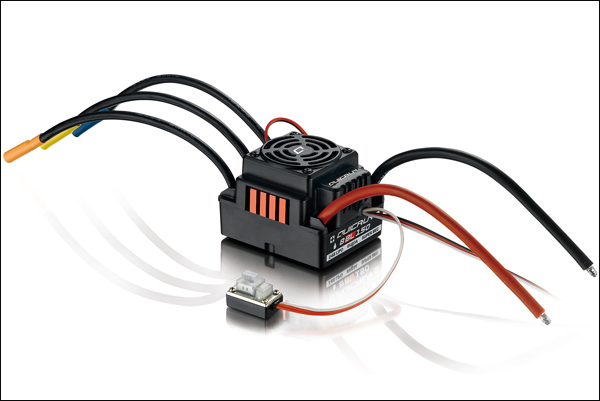

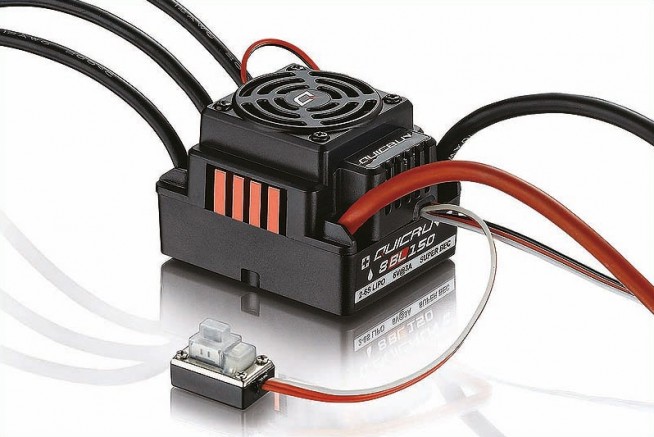

Hobbywing QUICRUN WP-8BL150 V2 1/8 150A Brushless ESC HW30109002



Features

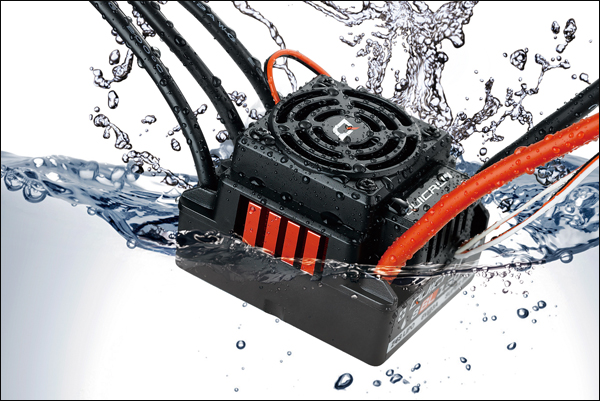

1.1 Water-proof and dust-proof for all-weather races.
(Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)

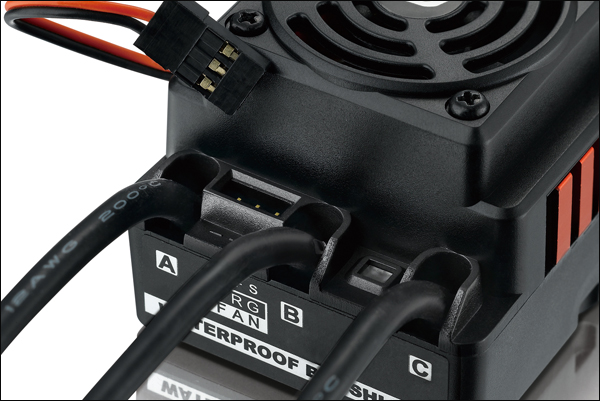

1.2 External programming port, easy to connect to the Program Card when setting the ESC.
1.3 Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
1.4 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks.
1.5 Multiple protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection.
1.6 One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
1.7 Compatible with the optional device —- the portable Digital LED Program Card, especially convenient for outdoor use.

Cont./Peak Current/ Resistance
150A/950A/0.00035Ω

Motor Type Supported
Sensorless Brushless Motor

Car Applicable
1:8 Buggy/Monster

Motor Limit
For 4S Lipo or 12 cells NiMH:

4274-size or smaller motor with the KV<3000
For 6S Lipo or 18 cells NiMH:
4274-size or smaller motor with the KV<2400

Battery

9-18 Cells NiMH
3-6S Lipo

BEC Output
6V/3A (Switch Mode)

Size/ Weight
59.5(L)*48(W)*42(H) / 178g

External Program Port
Available

Working voltage of Fan

From BEC (6V)
