119,98 inc. BTW

Leverbaar met 3-4 werkdagen.

Protech Li-Po 1000mAh 7.4V 2S 10c BEC Plug T0442.023

Protech Li-Po 1000mAh 7.4V 2S 10c Bec plug T0442.023

Qty
Stel een vraag over dit product

RadioLink RC4GS V2 4Ch. Radio + R6FG Gyro integrated Receiver 0062112647

THE ONLY 6CH PISTOL GRIP TRANSMUTER WITH GYRO INTEGRATED
600 METERS GROUND CONTROL DISTANCE

This radio set is born for RC Crawlers control. With 6 channels, two programmable mix, a receiver with built-in gyro, the telemetry of vehicle battery, il allows to control many auxiliary geatures.



6CH Mix Programmable
6 channels totally. CH 1 is rudder, CH2 is throttle,
CH3 can setup to control the transfer case, CH4 can setup to control the shift gear,
CH5 can setup to control the front locker and CH6 can setup to control the rear. New choice for RC crawler.
Every two channels can be mix programmed.

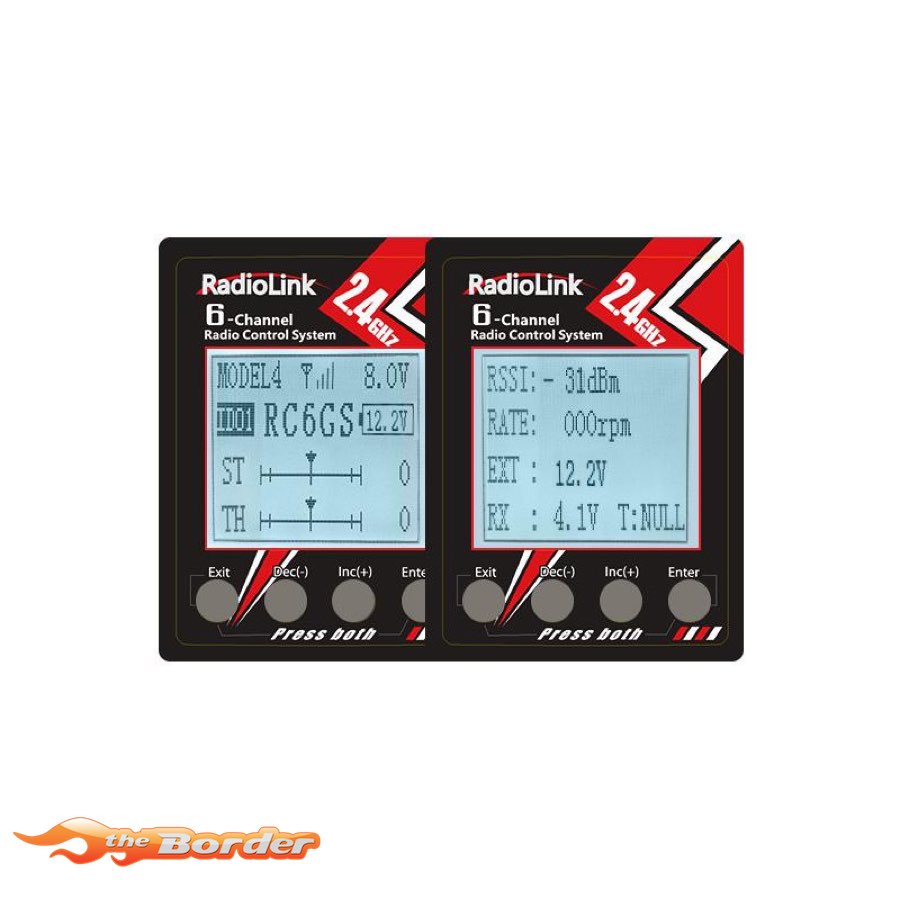

Return Real-time Model Battery Voltage



Capable of real-time transmission of RSSI, receiver/model voltage. The RSSI value and receiver voltage will be displayed once the binding complete between transmitter and receiver. Model voltage can be displayed by connecting the battery to BAT (positive/negative pins) without extra backhaul module needed while the real-time maximum voltage can be up to 6S battery. To support the two-way transmission function, RC6GS needs to upgrade with the latest firmware V6.0.0.

Programmable Dual Mix Control


The latest firmware of RC6GS(V5_0_0) is support programmable dual mix control setup. Twin-engine boats or cars such as crawler easily setup the mix control and change the parameters. Enjoy your RC time.

Top Configuration
Both transmitter and receiver use industrial chip ensure superior anti-sparks interference ability, random sensitivity of gyro will not interfere steering make RC6GS well controlled even oil tanker.
Industrial grade anti-interference ability make sure multiplayers compete at the same time.
12 ms only from transmitter to the receiver, thus provide control synchronous and performance perfect.

600 m Ground Distance
With the same FHSS spread spectrum of AT9S and 67 channels pseudo random frequency sequence hopping makes RC6GS have superior anti-interference ability both at the same frequency band and different frequency bands.
Control distance is up to 600 meters.

Operating As You Want
Receiver with gyro integrated to hold the vehicle in a straight line during aggressive acceleration and braking or get bumped around by rough terrain.
Receiver with gyro integrated to keep the uni-direction and anti-slip.

  • EPA (End Point Adjuster) : Correct the maximum steering angle for left and right steenng angles when there is a difference in the turning radius due to the characteristics.
  • THSPD (Throttle Speed) : Setting the throttle speed function reduces wasteful battery consumption while at the same time permitting smooth, enjoyable operation.
  • D/R (Steering Dual Rate/ Throttle Dual Rate) : The steering left and right servo travels are adjusted simultaneously.
  • THEXP (Throttle EXP) : Make the throttle high side and brake side direction servo operation quicker or milder.
  • STEXP (Steering EXP) : Change the sensitivity of the steering servo around the neutral position.
    It has no effect on the maximum servo travel.
  • STSPD (Steering Speed) : Quick steering operation will cause momentary understeering, loss of speed, or spinning. This function is effective in such cases.
  • ACCEL (Throttle Acceleration) : Throttle acceleration simply “jumps” away from neutral and then leaves the remaining response linear.
  • IDLUP (Idle-Up) : improve engine starting performance by raising the idling speed when starting the engine of a gasoline car (boat).
  • REV (Servo Reverse) : Reverse the direction of operation of the servos related to transmitter steering, throttle, and channel 3 /4 operation.
  • A.B.S. (A.B.S. Function) : The generation of understeer can be eliminated and corners can be smoothly cleared by using this function.
  • ATL (ATL Function) : Decrease the set value when the braking effect is strong and increase the set value when the brake effect is weak.

Specificaties

■    Size:

  • RC6GS – 213*117*115.5mm,
  • R7FG – 35*20*13mm;

■    The size of battery box(L*W*H):89*59*18mm
■    Channel: 6;
■    Model: cars, boats, robot;
■    Modulation mode: GFSK ;
■    Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz) ;
■    Spread spectrum: FHSS 67 channels pseudo random frequency sequence hopping;
■    10 modes memory storage;
■    Antenna length: 106mm;
■    Control distance: more than 600 meters ground;
■    LCD screen: 128*64 resolution, LCD back light;
■    Transmitter operating voltage: 4.8-15.0V DC, (6*1.5AA or 2S-4S Lithium battery)

■    Transmitter operating current: 80-120mA;
■    Receiver operating voltage: 4.8-10V;
■    Receiver operating voltage: 30mA;
■    RF power: <20dbm;
■    Low voltage alert: Yes (lower than 4.6V), can be set when using 2S-4S Li-Po battery;
■    Channel resolution: 4096, the regular jitter is 0.5us
■    Compatible Receiver: R7FG(Std), R6FG,R6F,R8EF,R8FM, R8F.R4FGM

Inhoud kit

  • RC6CG Transmitter
  • R7FG Receiver
  • Wire for Model Voltage Return
  • Instruction manual

Datasheet

  • Fabrikant : Radiolink
