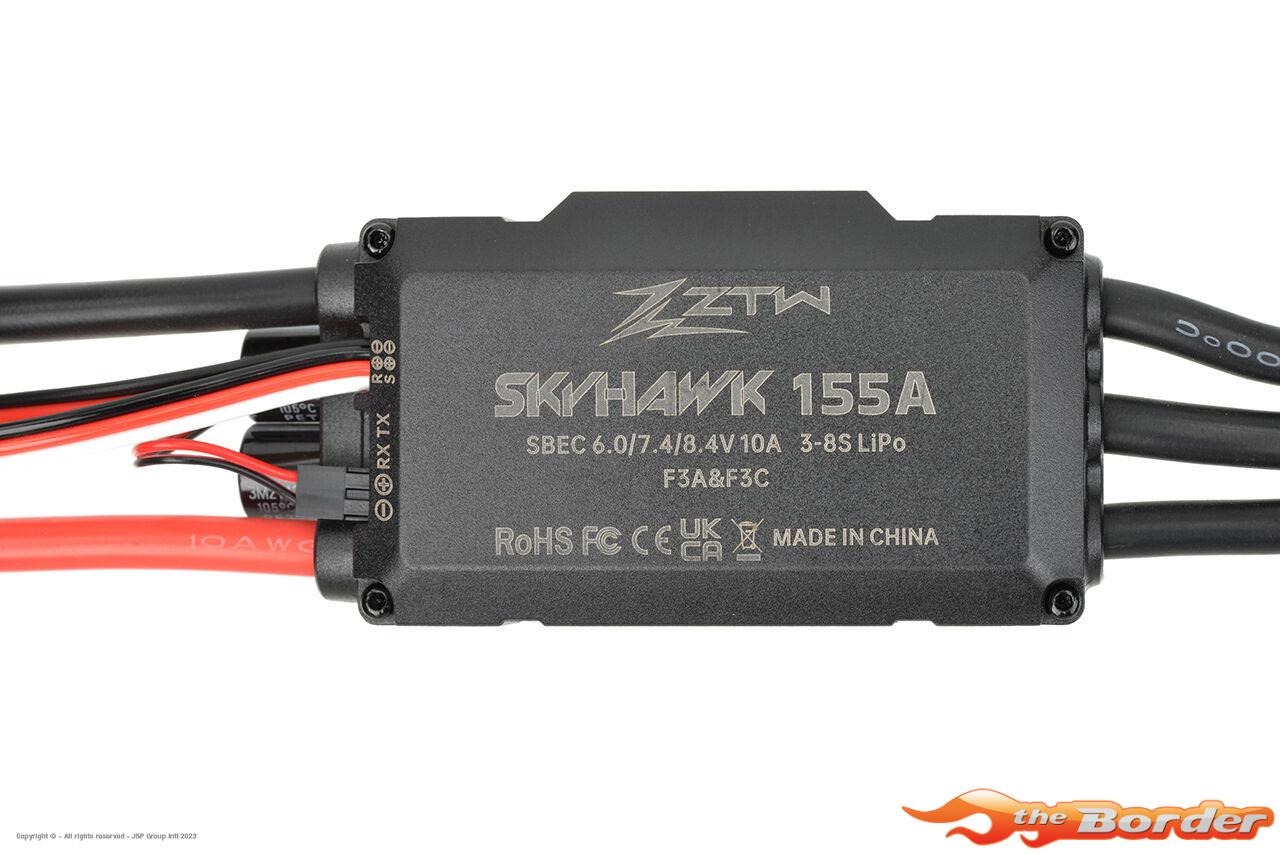

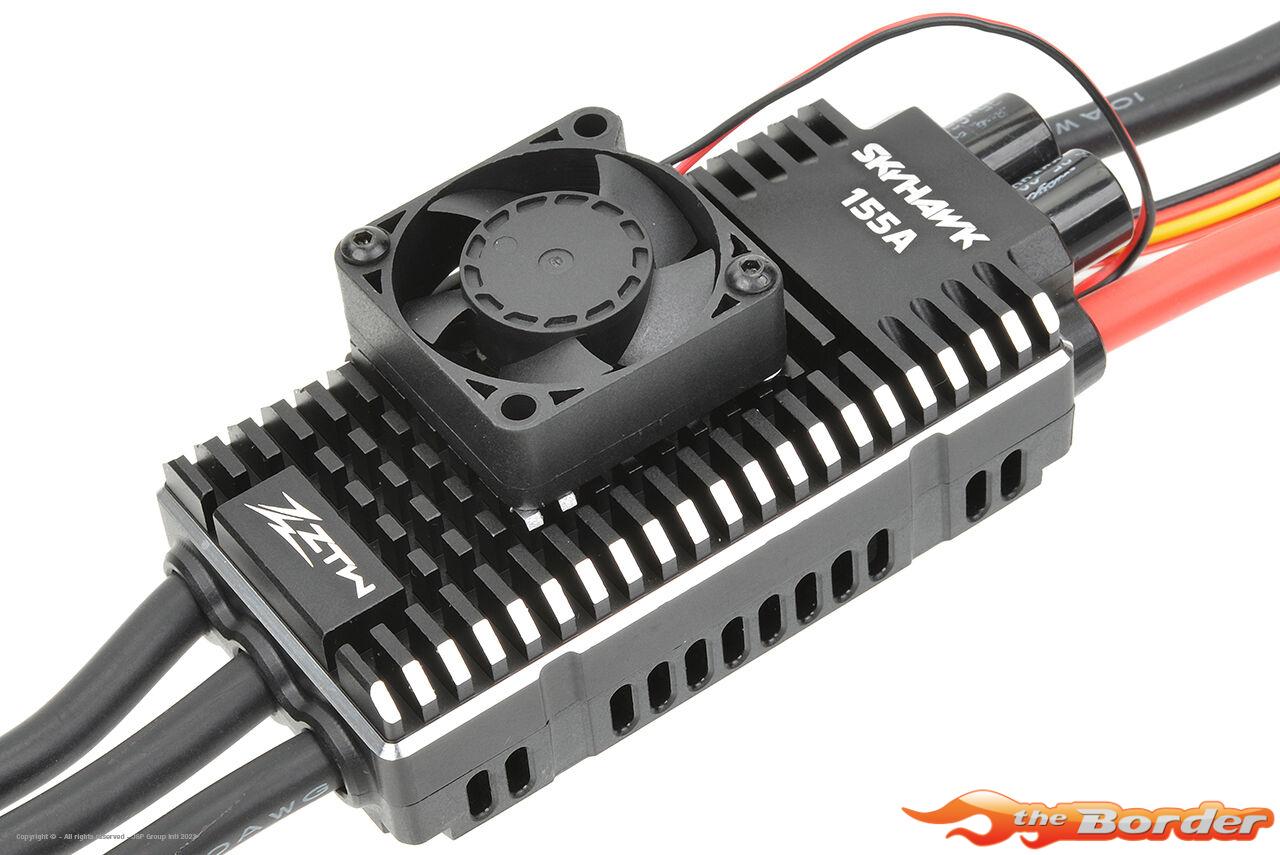

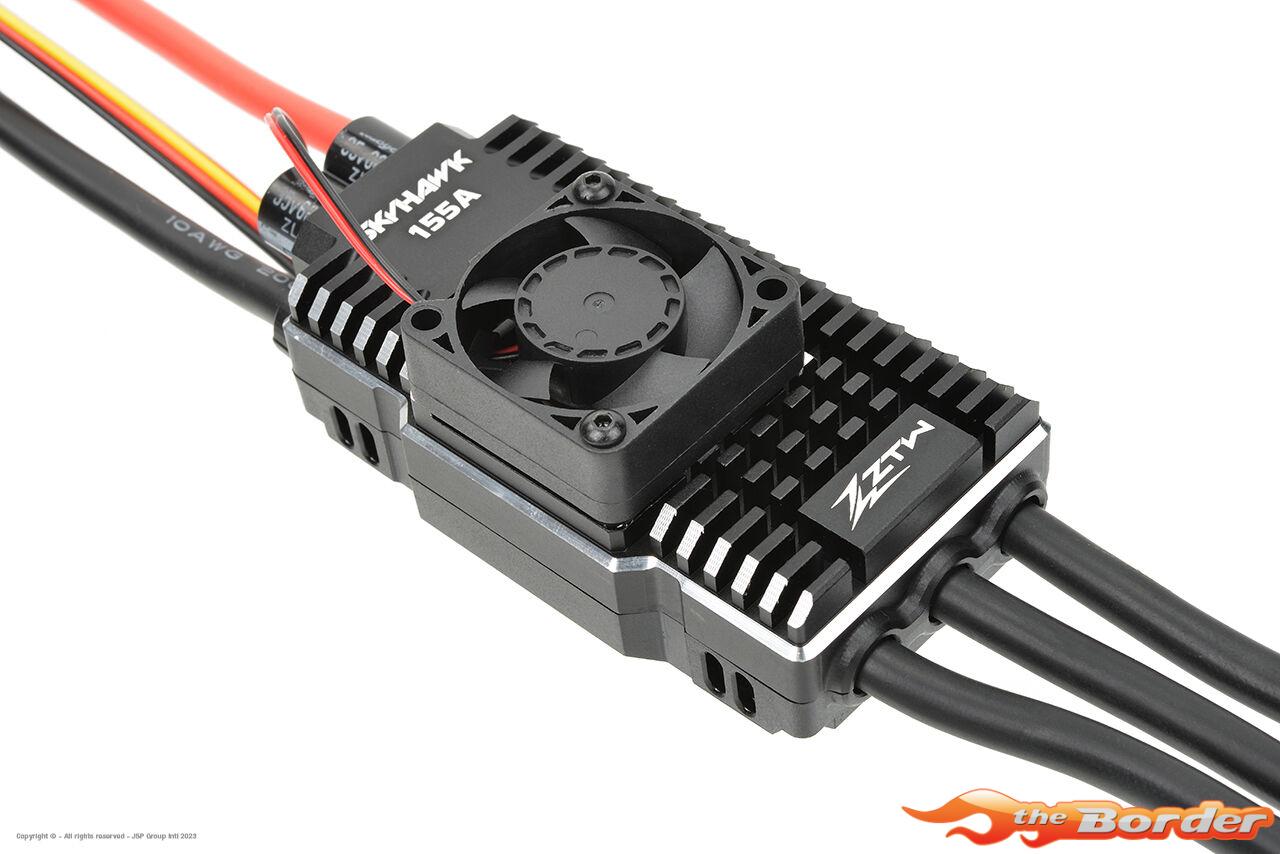

ZTW Skyhawk 155A SBEC – 3-8S – SBEC 6-7.4-8.4V/10A

€ 181,95 inc. BTW

Op voorraad

Qty
Stel een vraag over dit product

Skyhawk 155A SBEC – 3-8S – SBEC 6-7.4-8.4V/10A ZT-4155211

ESC – Application

ESC – Application Helicopters
ESC – Motor Type In-Runner & Out-Runner Sensorless Motors
ESC – Motor Control Forward – Brake
ESC – Level Competition – High-End

ESC – Programming

ESC – Firmware Update Supported
ESC – Telemetrie Aux. Yes, telemetry aux.
ESC – Data Logging Yes, Real Time Data – Max Values
ESC – Real-Time Data
  • Voltage (V)
  • RPM (T/min)
  • ESC Status
  • Throttle Status
  • Current (A)

    SC – Dimensions

    ESC – Length (mm) 91
    ESC – Width (mm) 43
    ESC – Thickness (mm) 33

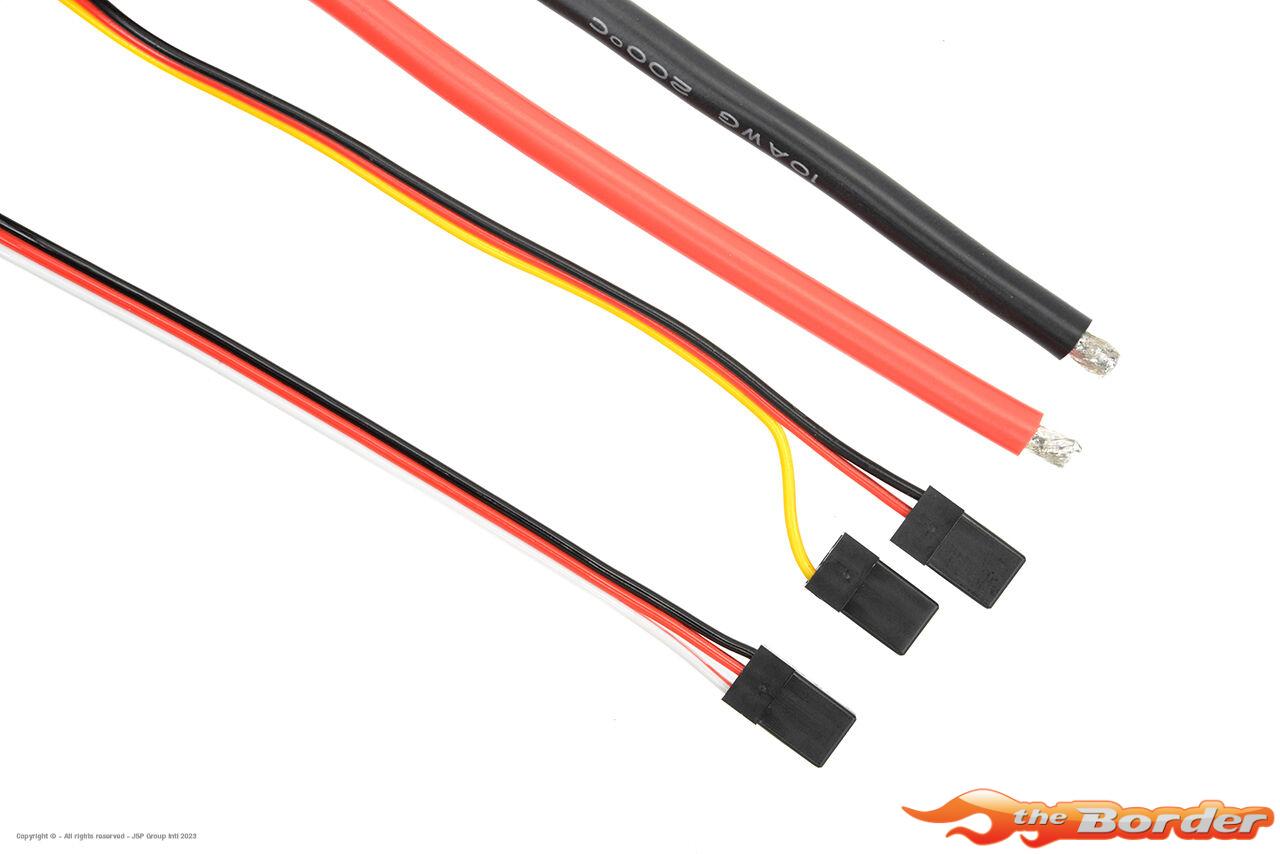

    ESC – Wires (AWG) – Battery 10 AWG

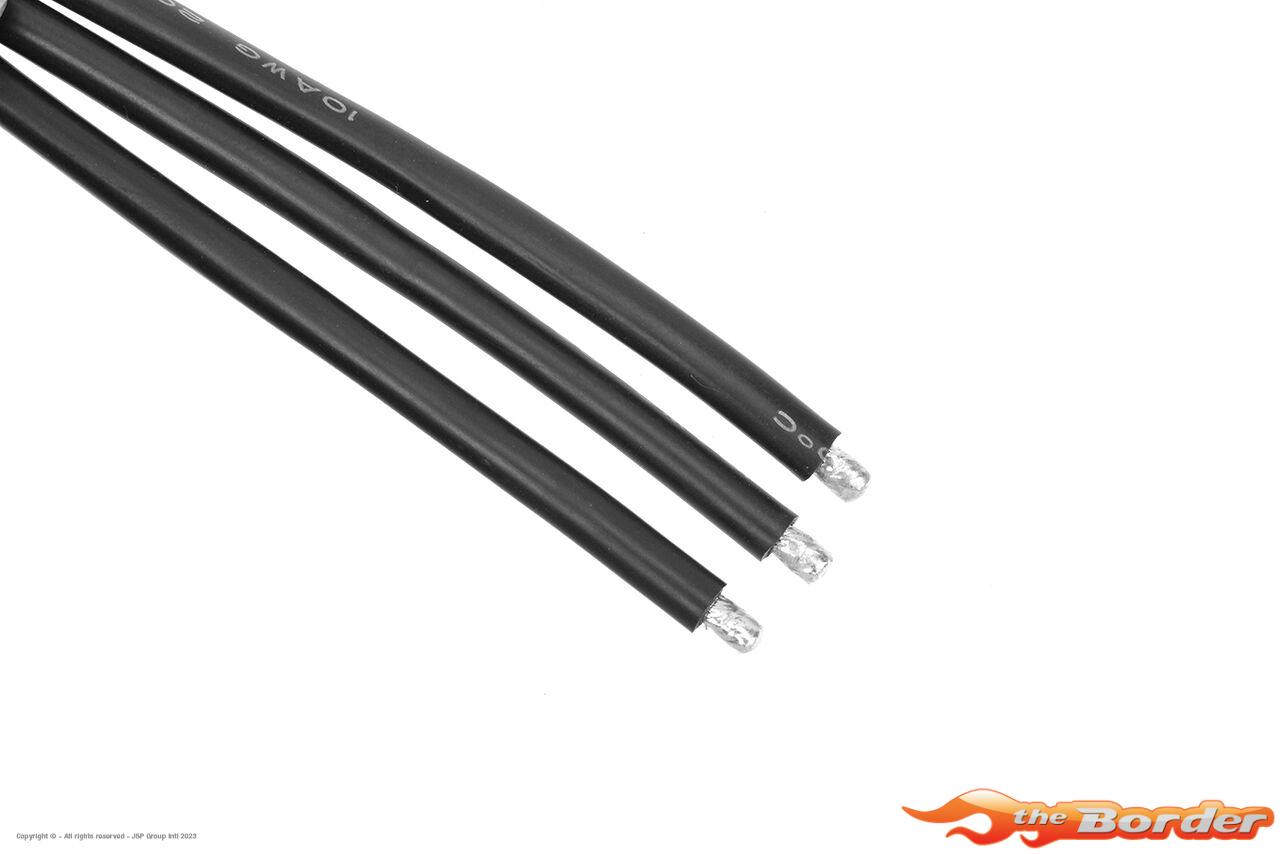

    ESC – Wires (AWG) – Motor 10 AWG
    ESC – Connector – Battery None
    ESC – Weight (g) 171

    ESC – Specs

    ESC- Input Voltage Range (V) 3S – 8S Li-Po
    ESC – Current – Cont. (A) 155
    ESC – Current – Peak (A) 170
    ESC – BEC – Voltage (V) Select. 6.0V – 7.4V – 8.4V
    ESC – BEC – Cont. (A) 10
    ESC – BEC – Peak (A) 15
    ESC – Protection No
    ESC – Cooling Fan Yes, 30mm
    ESC – Case Material

    Full Aluminium
