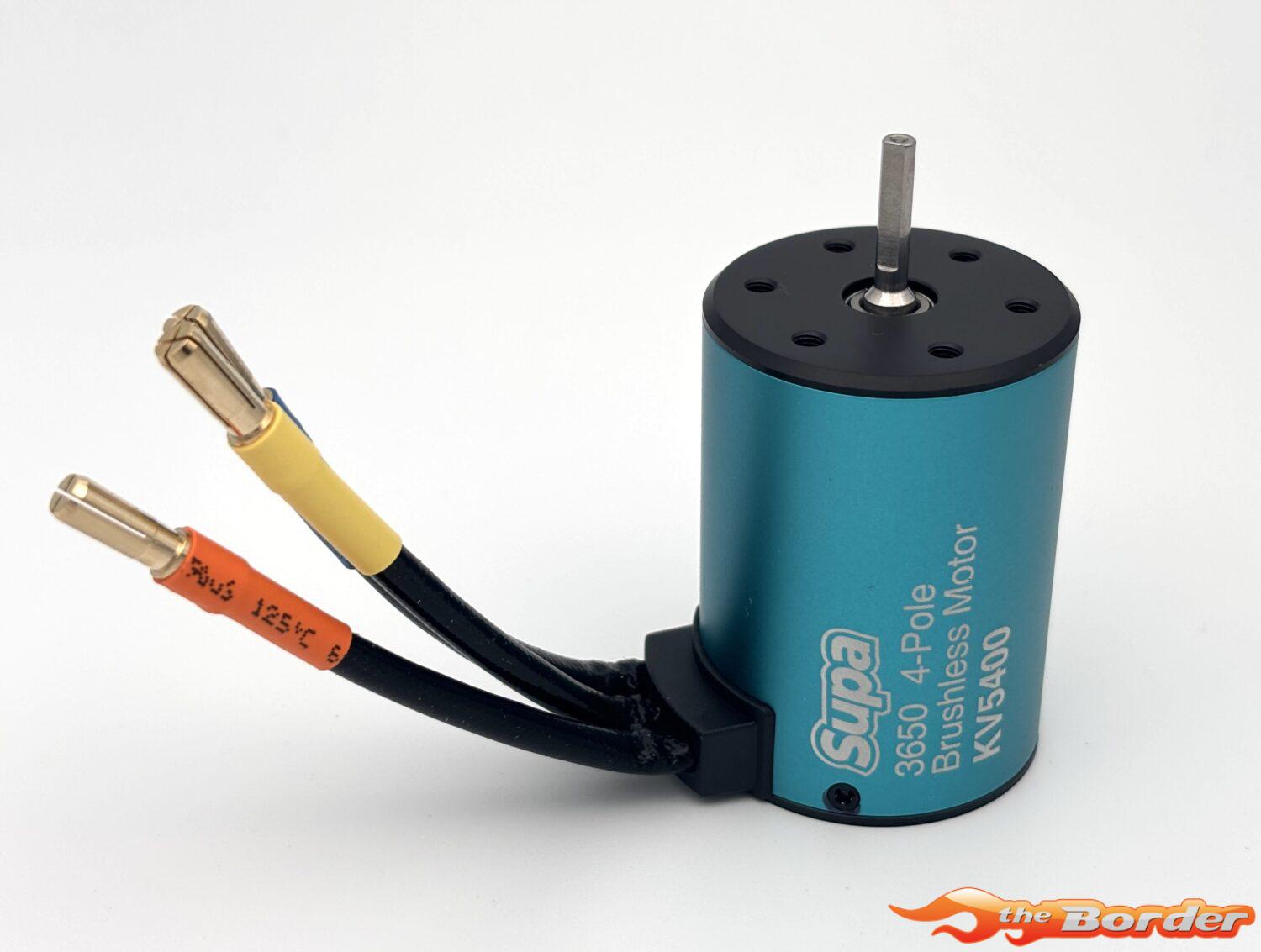

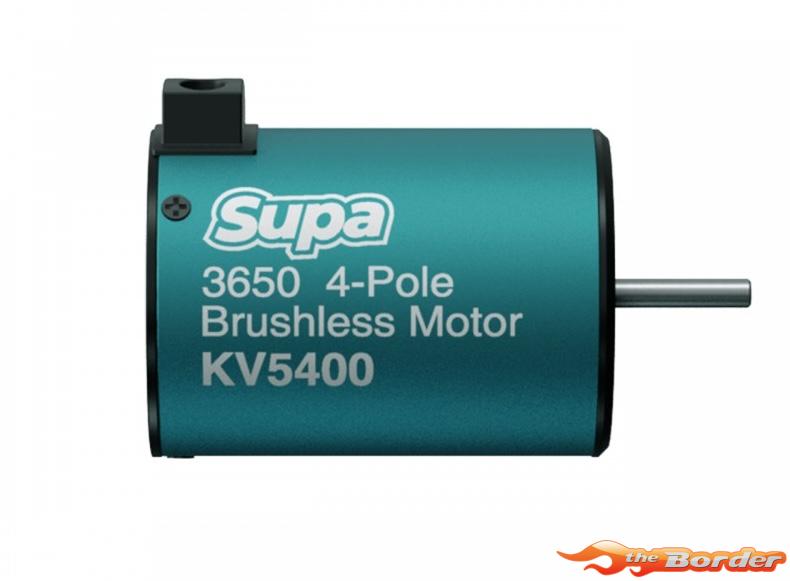

SkyRC FuriaX Supa 5400KV 1/10 3650 Brushless Motor 400035-05
FuriaX · Born on the Track.
We test, refine, and perfect every ESC & motor on the FuriaX Track — our own in-house RC circuit built for racing.
Because real performance isn’t proven in labs — it’s earned on the track.
FuriaX is built of hobbyists, by hobbyists, for hobbyists.
First Run. Full Gear.
Ultra-thin 0.2mm Stator Laminations
Less loss. More efficiency. Cooler runs.
6061-T6 Aluminum Can
Strength in structure. Light in weight. Cool in heat.
Global-grade Bearings & Precision Shaft
Premium bearings combined with a high-precision shaft deliver ultra-smooth, accurate control—race after race.
Precision-balanced Rotor
Perfectly balanced for high-speed stability, refined output, and total driving confidence.
Four-Pole 12-Slot
Stronger Torque
Smoother Power
Compared to two-pole motors, the four-pole 12-slot design delivers greater torque and smoother output.
Faster launches, steadier climbs, effortless heavy loads — with refined control even at low speeds.
Effortless Wiring
Plug and Play

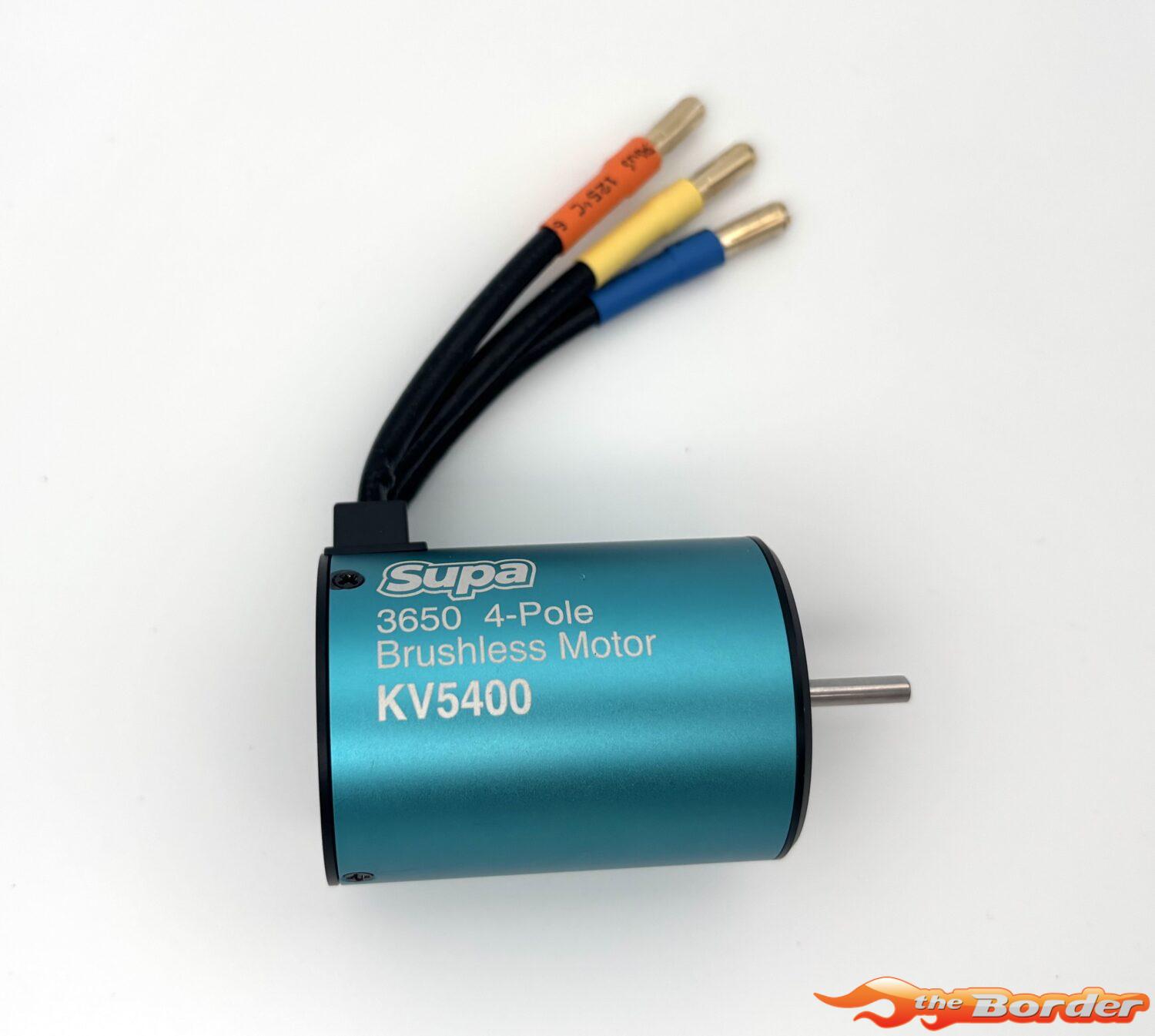

Pre-soldered 4.0mm gold-plated connectors come factory-fitted, so no soldering is required—just plug in and go, leaving more time for the thrill of the drive. Paired with flexible ABC phase wires in Blue / Yellow / Orange, routing is clearer, cleaner, and more reliable, making installation effortless.
Versatile Fit
Easy Maintenance
Part of the SkyRC ecosystem, perfectly matched with SUPA ESCs for maximum performance. Fully compatible with mainstream sensorless ESCs for stable output anywhere.
Betrouwbare prestaties
De uitgebalanceerde snelheid en het koppel geven je genoeg vermogen voor leuke ritjes, stoeien in de achtertuin en licht offroad rijden — zonder nieuwe bestuurders te overweldigen.
1/10 FuriaX Supa 3650 Brushless Motor
– 6061-T6 aluminium can
– ultra dunne 0.2mm stator laminate
– 4-Pole 12-slot
– Voorgesoldeerde 4.0mm connector
– Makkelijk onderhoud: te openen met 3 schroeven
Size: 36x50mm
Weight:
2300KV 3100KV: 180g±5g
3600KV 4000KV 5400KV: 150g±5g
Operating temperature: -10°C-80°C
Operating humidity: 20%-90% (non-condensing)
Storage temperature: 0°C-50°C
Storage humidity: 30%-60% (non-condensing)
Voltage : < 9.0V
No-load Current : 3.5A
Load Current : 4100A Max.
Power : 900W Max.
Rotor（mm） : Ø15*Ø5.00*16
