SkyRC T1000 Maestro AC/DC Duo Charger 450W 20A 100182

SkyRC T1000 Maestro AC/DC Duo Charger 450W 20A 100182

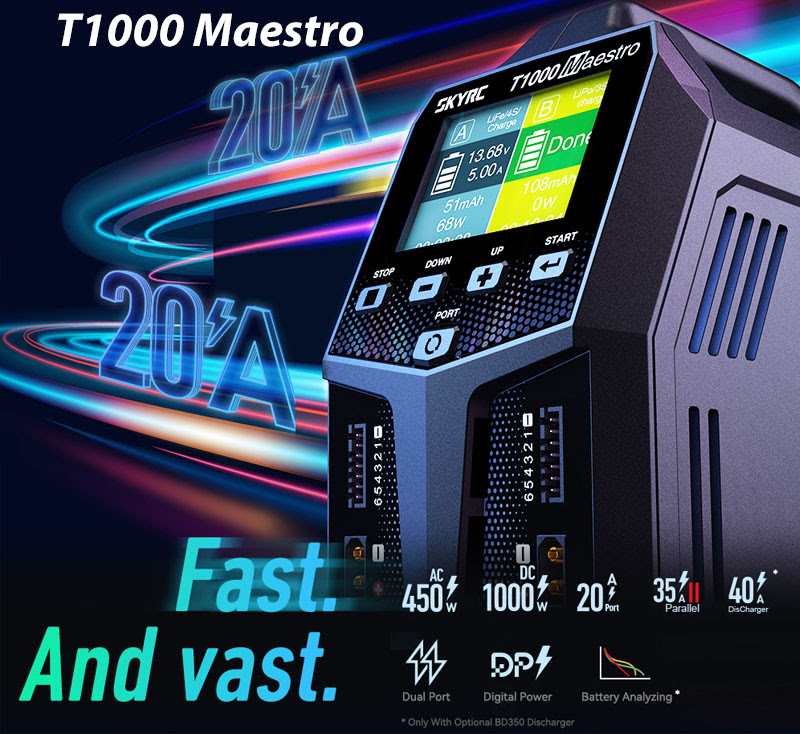

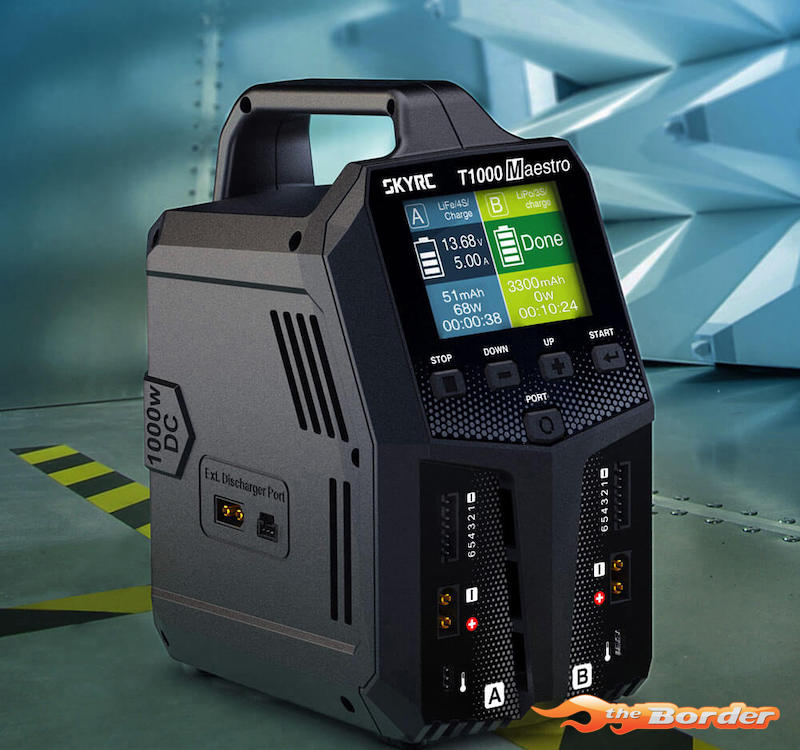

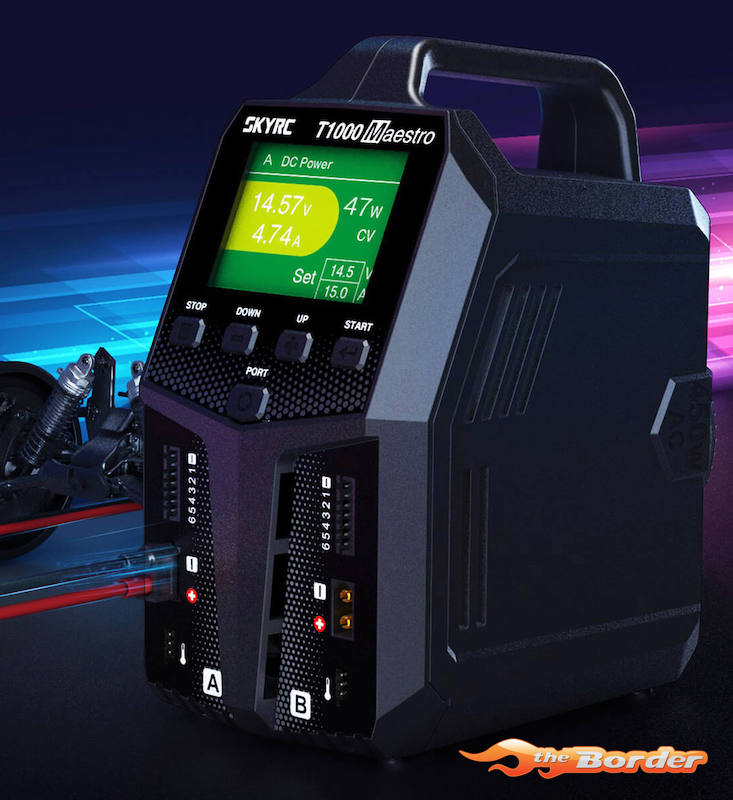

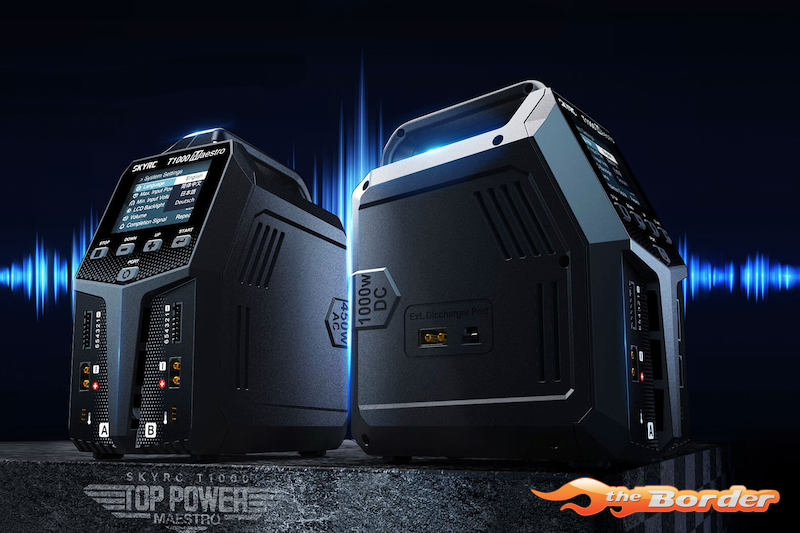

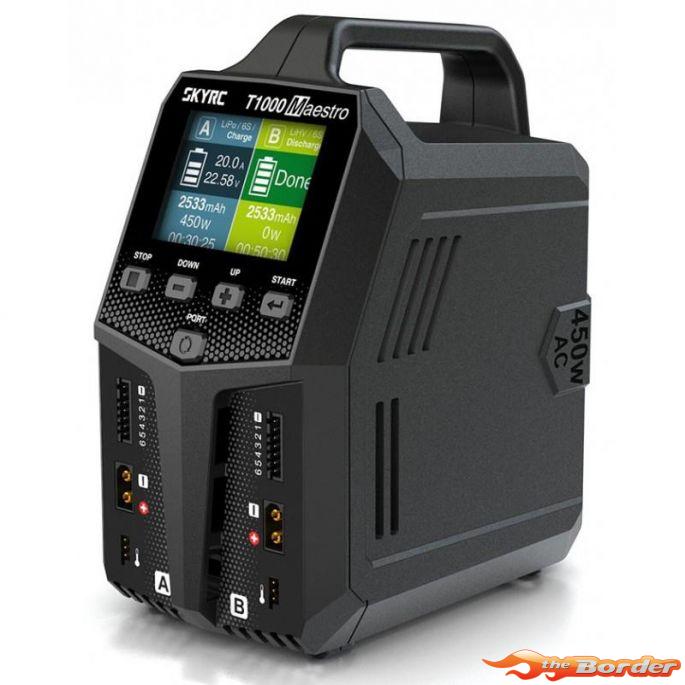

Dual ports work independently to charge two battery packs efficiently and simultaneously. RC hobbyists can flexibly choose AC or DC input according to the scenarios.
In AC mode, the charging power is up to 450W, while the performance is even more powerful, up to 1000W in DC mode. Whether you are a beginner or an RC guru engaging in racing, it is the charger to push the limits of what is possible!

When a single port works, the T1000 will be pumping full power into that port! The charging power is dynamically and intelligently distributed in the circumstance that two ports work at the same time. Whenever either port finishes working, the other port will fully charge at full power. The total power is always used intelligently and efficiently! Charging is so flexible!

The 1A3C PD Power Charging Hub5 is specially designed for RC hobbyists, with a full load power of 150W. The design incorporates a precision aluminum unibody enclosure that is strong, light, and durable with high thermal conductivity. Its thermal conductivity is more than that of ordinary die-casting aluminum.
*BD350 & PD Power Charging Hub are optional parts and need to be purchased separately.

Power

DC Input Voltage: 10-30V
AC Input Voltage : 100-240V

Charger power:
AC: 450W MAX
DC: 1000W MAX

Discharge power:
Main port: 10W
Balance port: 37W MAX
External discharge: 350W MAX

Battery

Battery Types/Cells:
LiPo/LiHV/LiFe/LiIon: 1-6cells
NiMH/NiCd: 4-15cells
Pb: 3S/6S/12S

Charge and Discharge

Charge current

LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-20.0A

Parallel：20.0-35.0A



Discharge current

LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-2.0A

External discharge：0.1-40.0A2



Balance current

LiPo/LiFe/LiIon/LiHV：1.5A MAX



Operation

LiPo/LiFe/LiIon/LiHV: Balance, Charge, Discharge, Storage, Parallel

NiMH/NiCd: Charge, Cycle, Re-peak, Discharge

Pb: Normal, AGM Charge, Cold Charge, Discharge
