Tamiya BBX Buggy BB-01 Kit 58719
Tamiya BBX Buggy BB-01 Kit 58719
BBrilliant

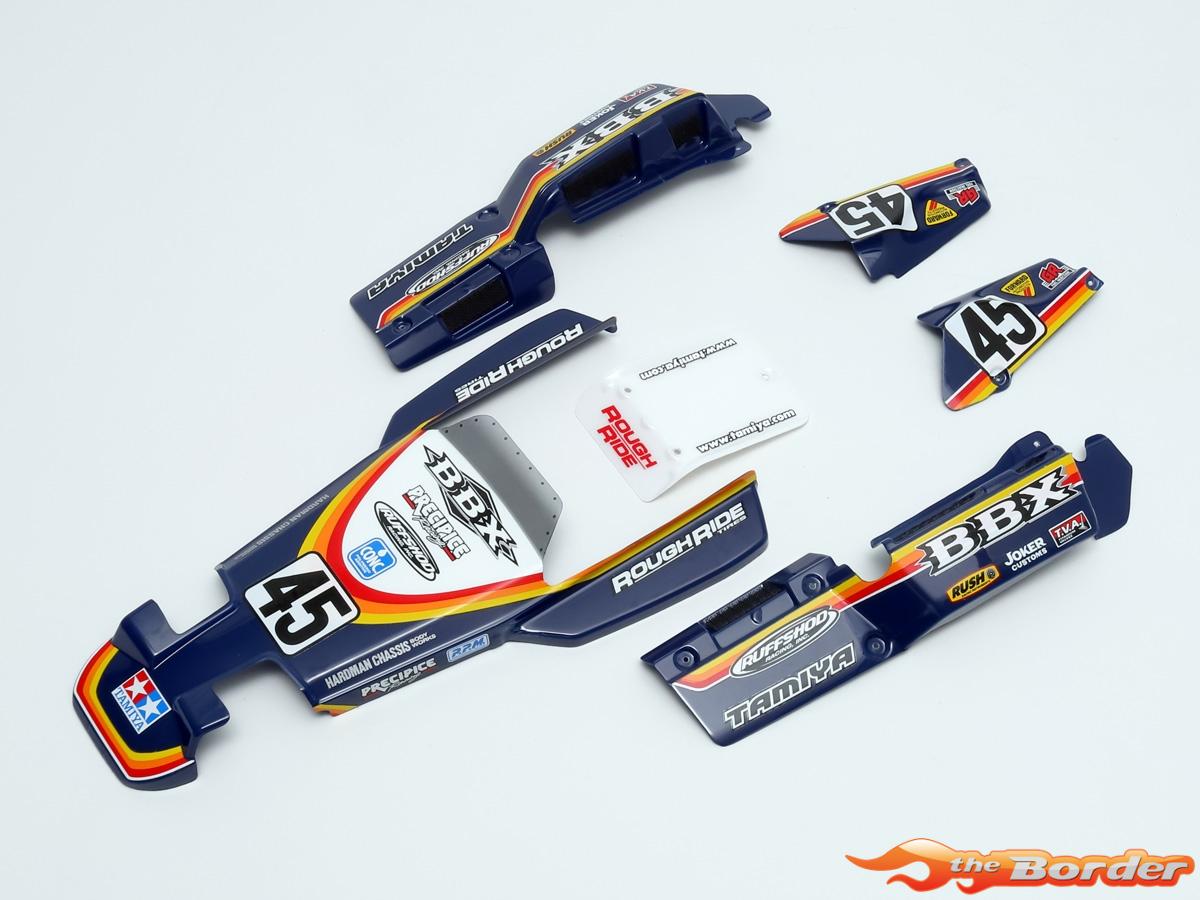

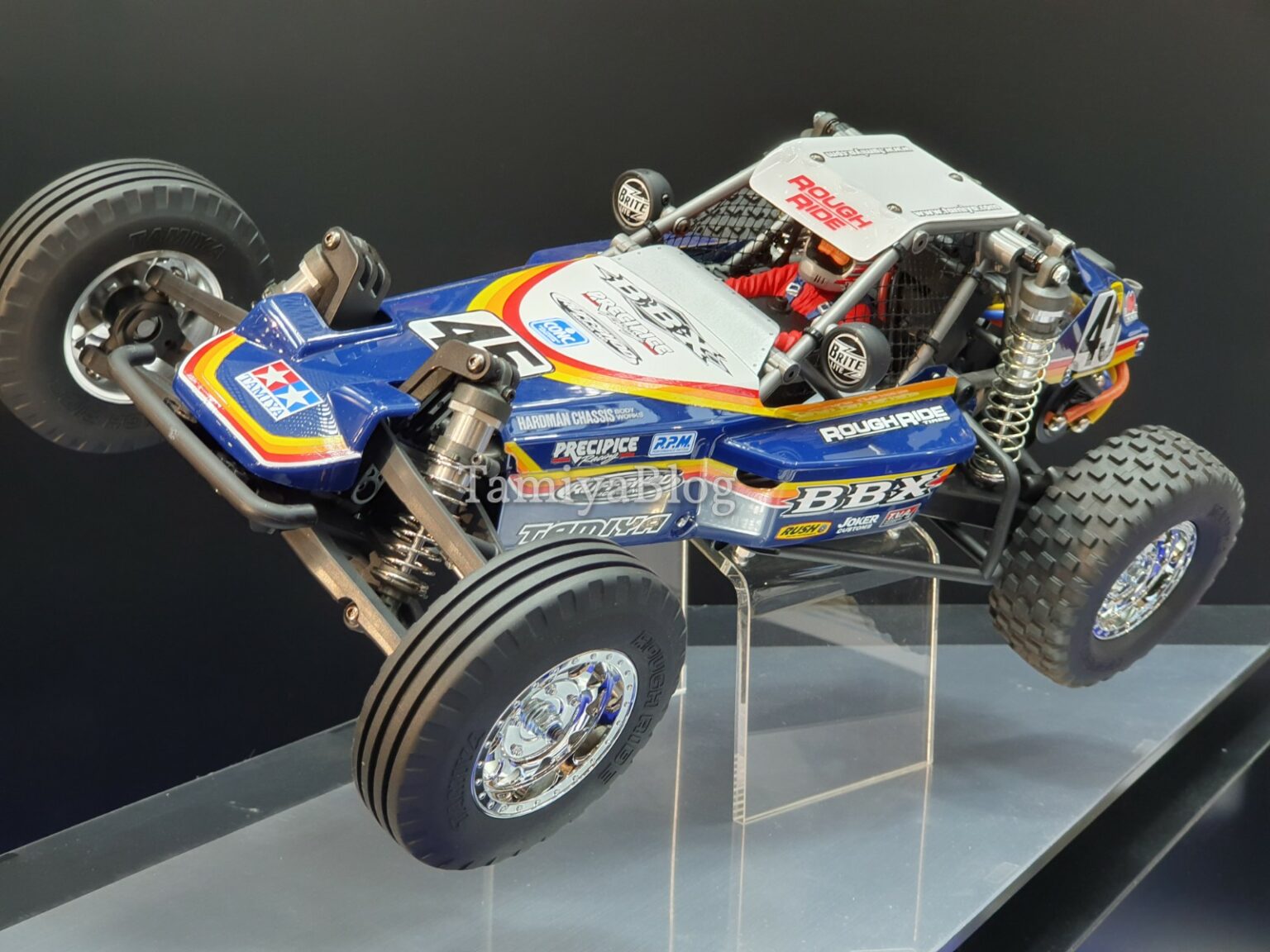

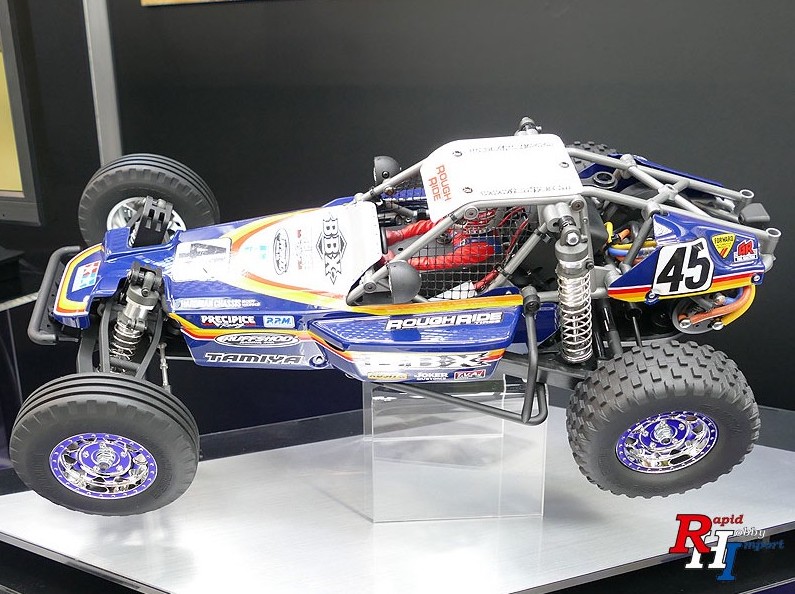

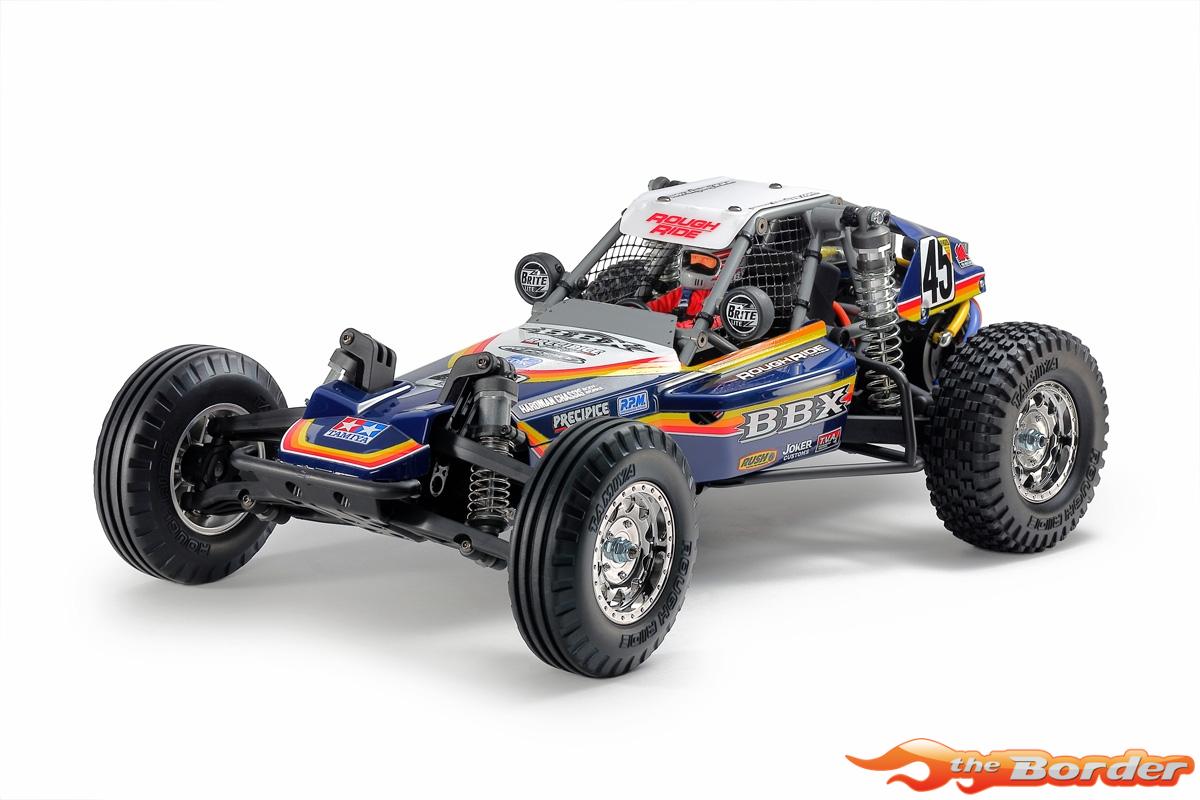

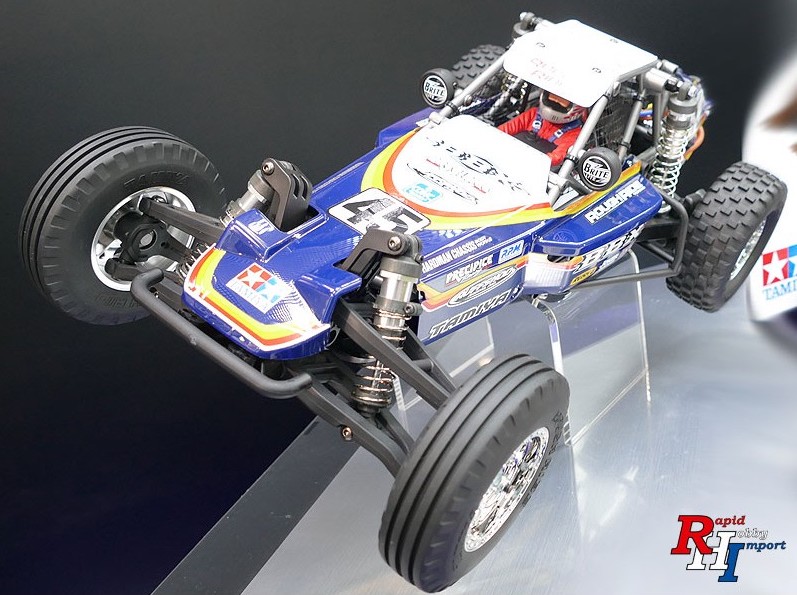

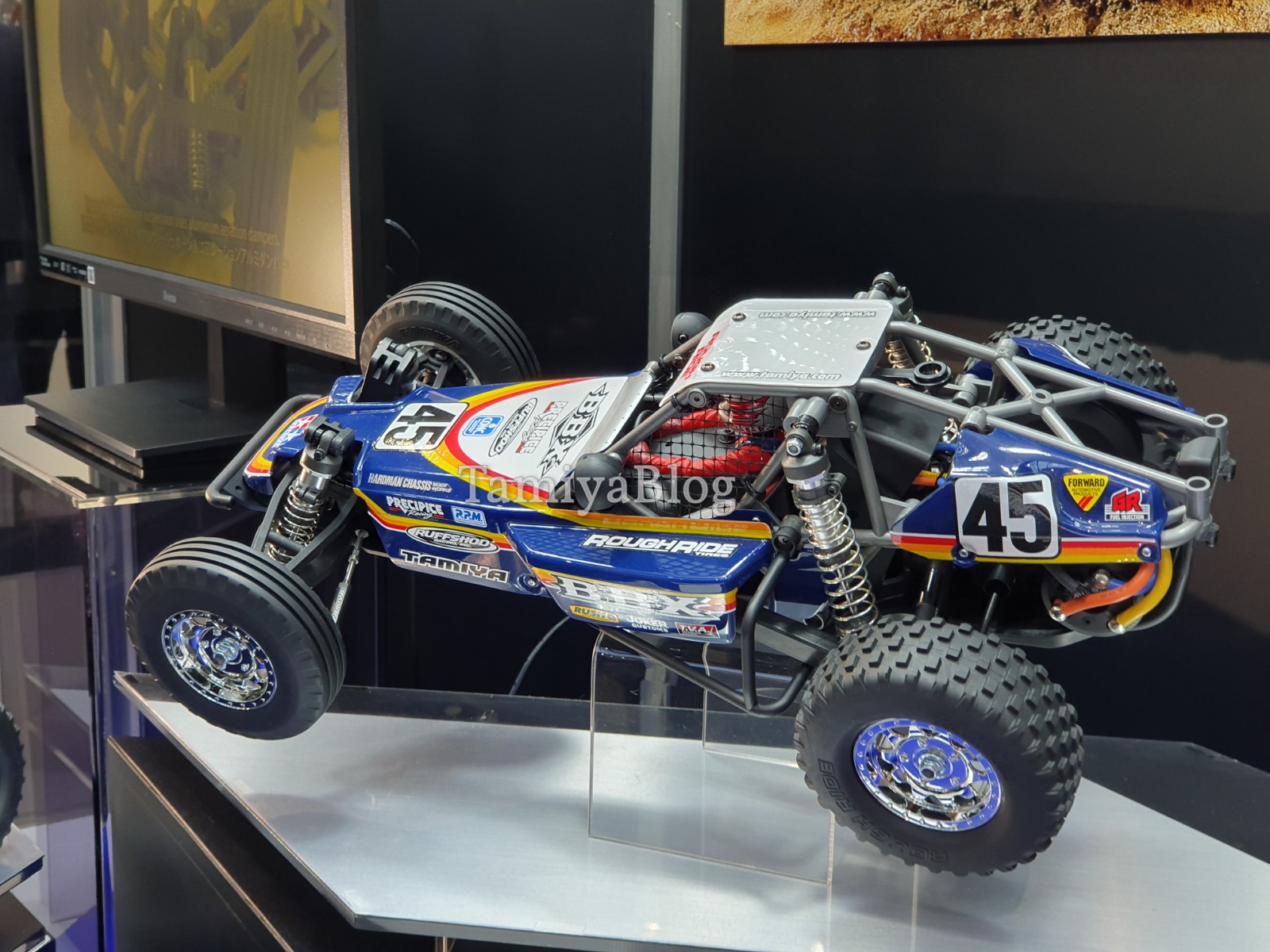

This R/C model assembly kit is inspired by single-seater racing buggies popular in America. The slim chassis utilizes a lengthwise battery pack and rear-mounted, transverse motor, and ensures optimum weight balance and precise rigidity. The 4-wheel independent suspension uses front double wishbone and rear trailing arm setups to allow dynamic off-road performance. It employs safety nets, a roll cage equipped with light pods, six-piece body cowling featuring a long nose, and aluminum dampers.

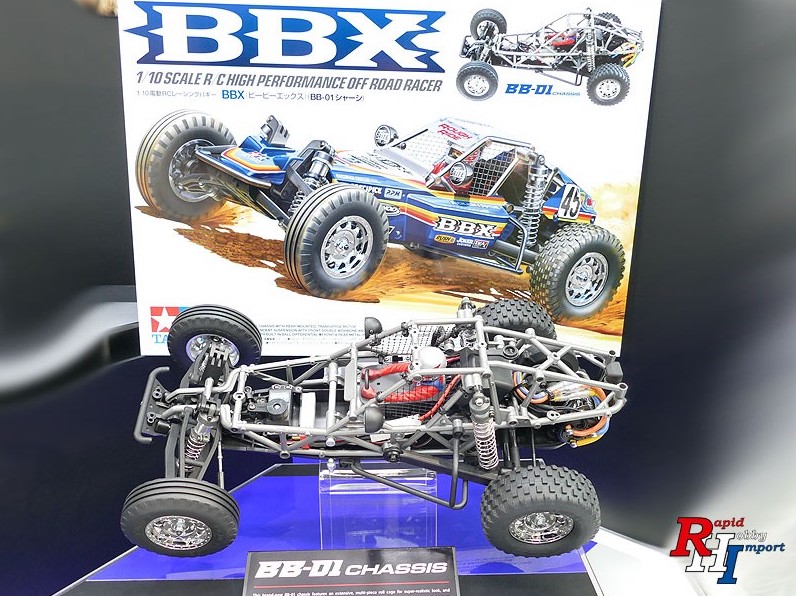

The BB-01 Chassis

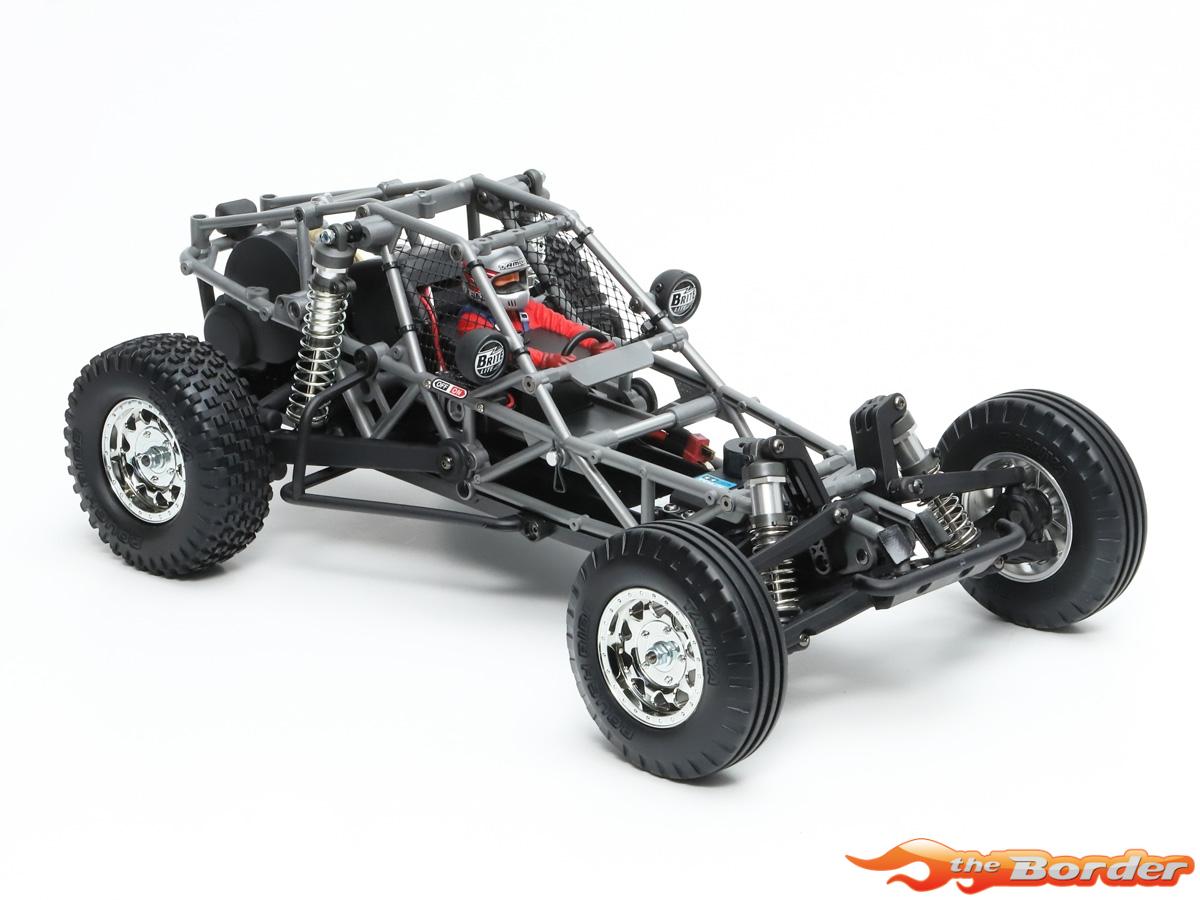

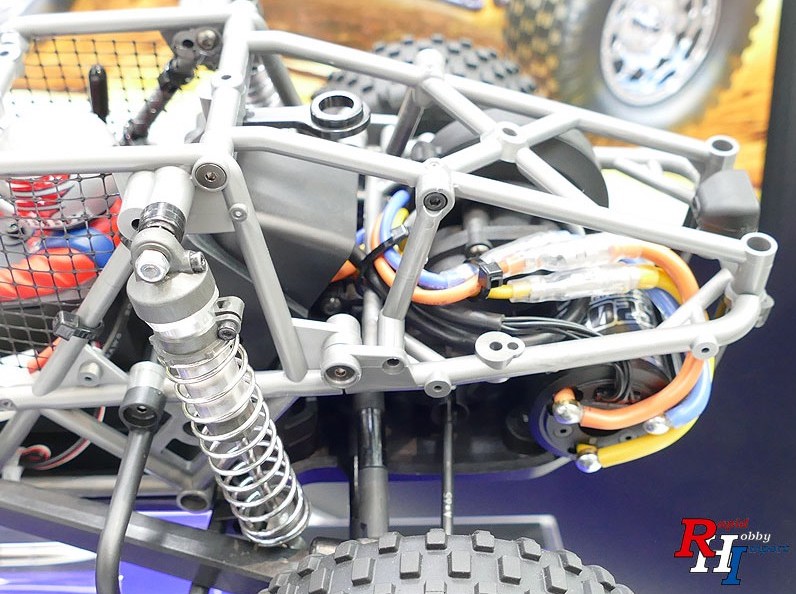

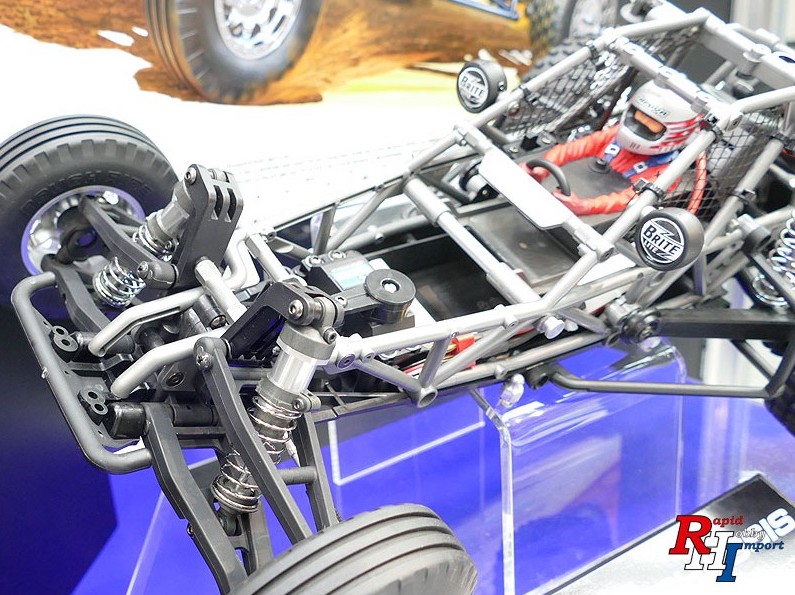

The BB-01 is a rear-wheel drive buggy chassis which features a hybrid lower deck-roll cage and suspension structure for a super-realistic look. Lengthwise battery pack and rear-mounted motor give the rear wheels plenty of traction, while the sealed gearbox has a built-in ball differential. The suspension utilizes an A-shaped arm front double wishbone setup featuring a skid angle of 25 degrees, and rear trailing arms for alignment adjustment, plus high-spec, high-quality aluminum aeration oil dampers for all four wheels. Tires are front rib pattern tread for directional stability and rear square spike for high grip, and are paired with front and rear metal-plated, hex-hub wheels. Access the motor easily under the liftable rear roll cage section.
- The chassis is designed by Atsushi Arino
- 2WD dune buggy with monocoque chassis and roll bar
- Multi-piece polycarbonate buggy body
- Driver figure and headlight included
- oil filled cone differential (TA06)
- C.V.A. Aeration oil pressure shock absorbers front/rear
- completely ball bearing
- steel cardan shafts

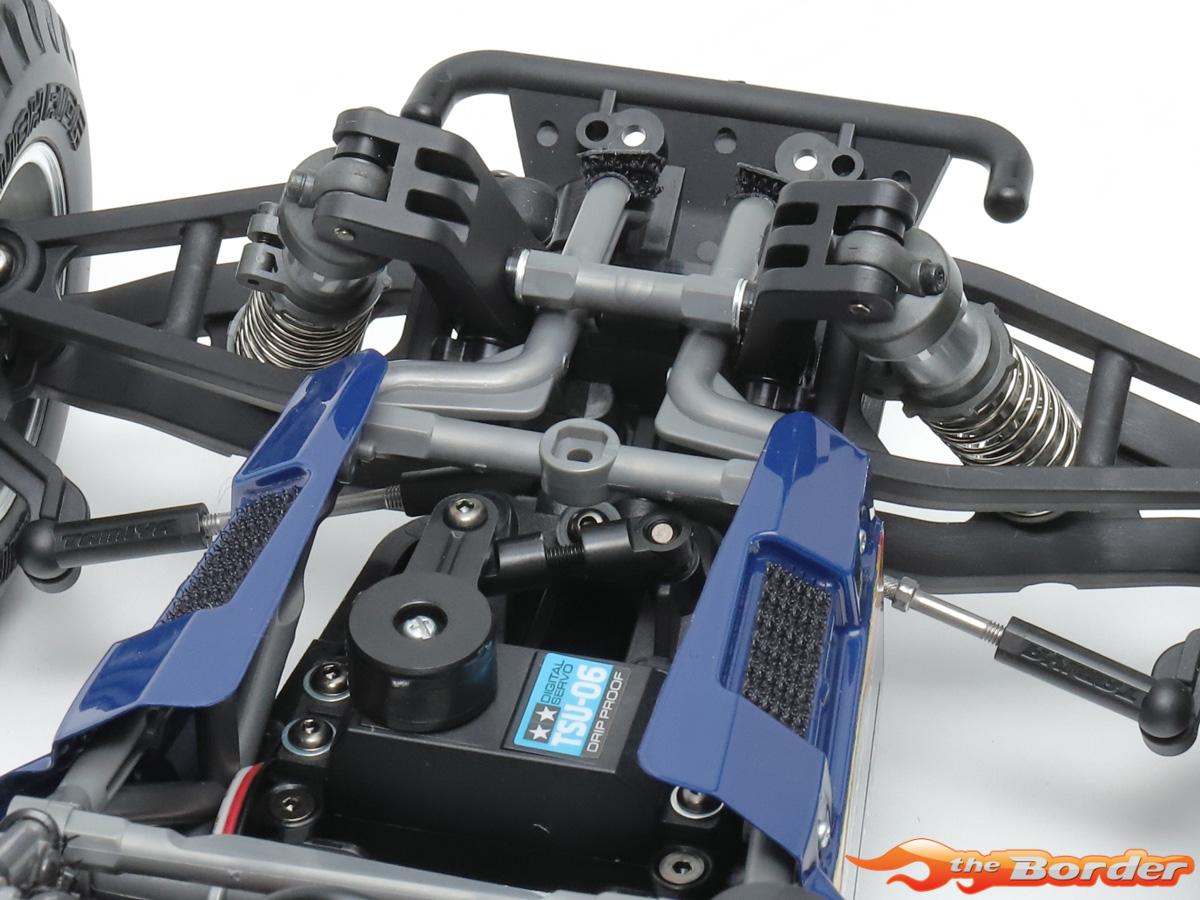

- A-arm independent front suspension

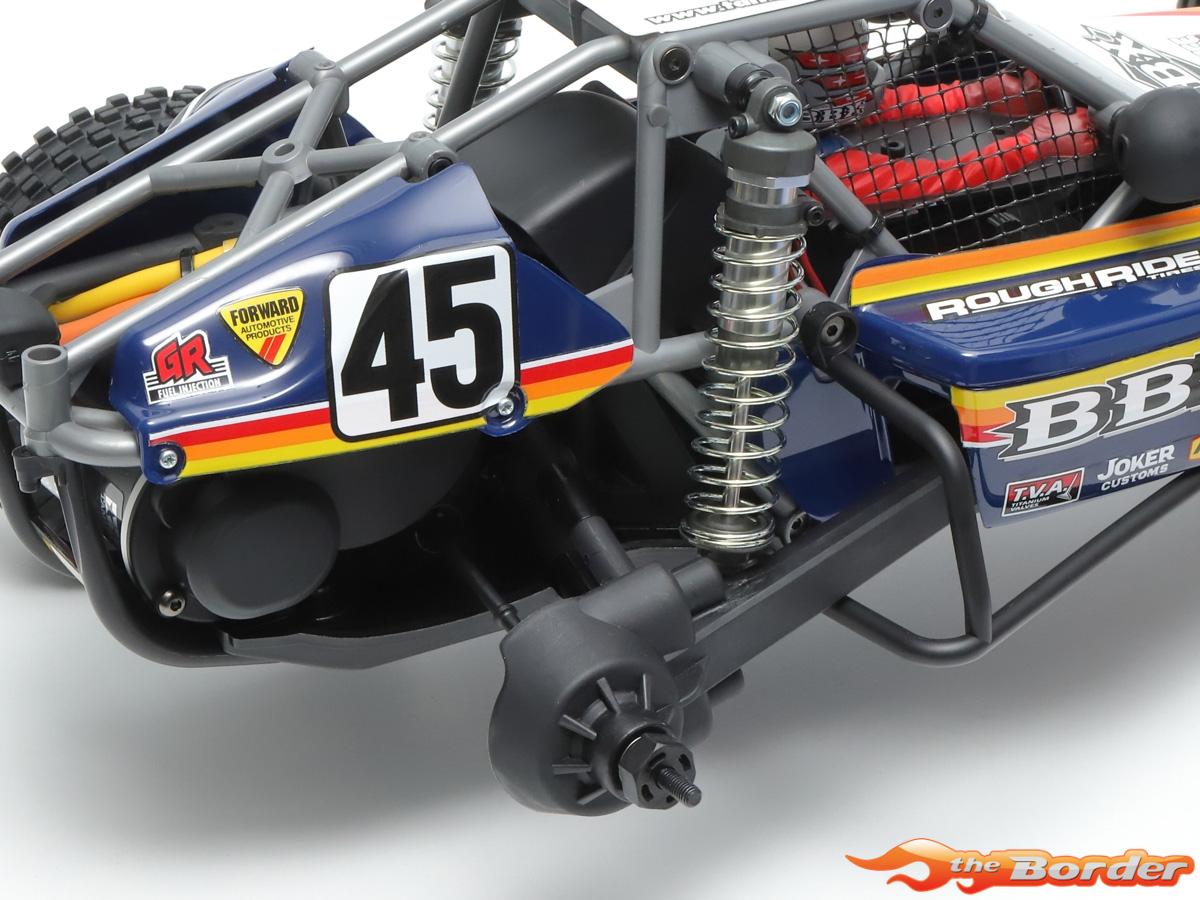

- Robust rear trailing arm suspension

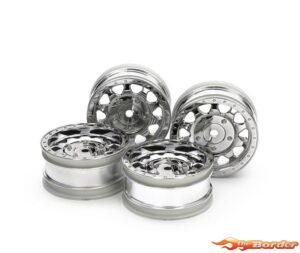

- chromed off-road rims front/rear (12 mm 6K.)

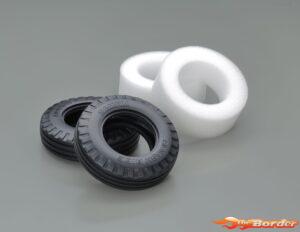

- grippy Rough Ride grooved tires at the front
- grippy Rough Ride block tires at the rear
