Tamiya Mercedes Benz Arocs 3348 – 6×4 Tipper Truck 56357

Tamiya Mercedes Benz Arocs 3348 – 6×4 Tipper Truck 56357

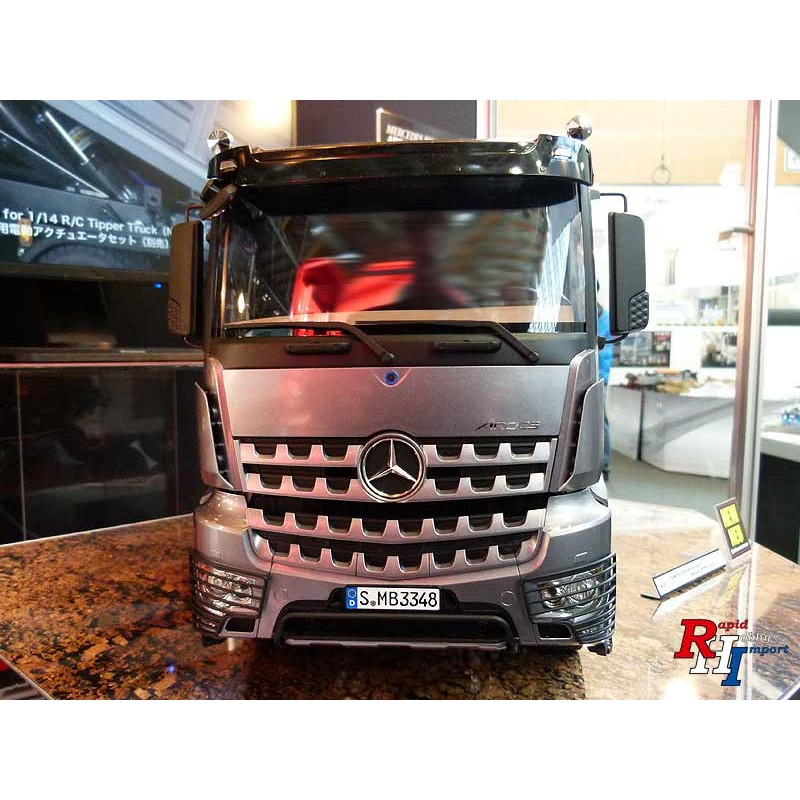

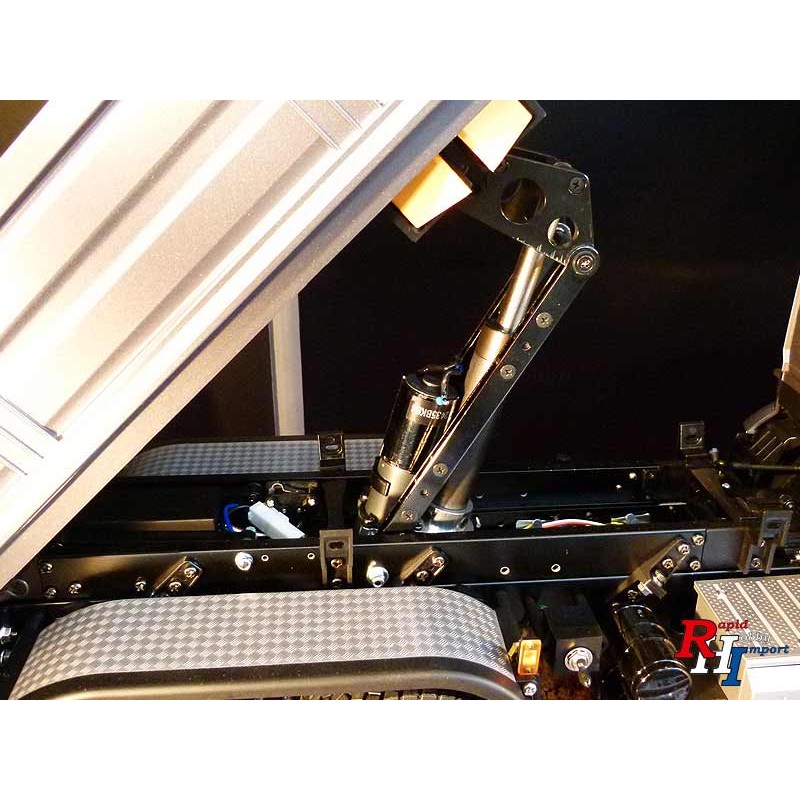

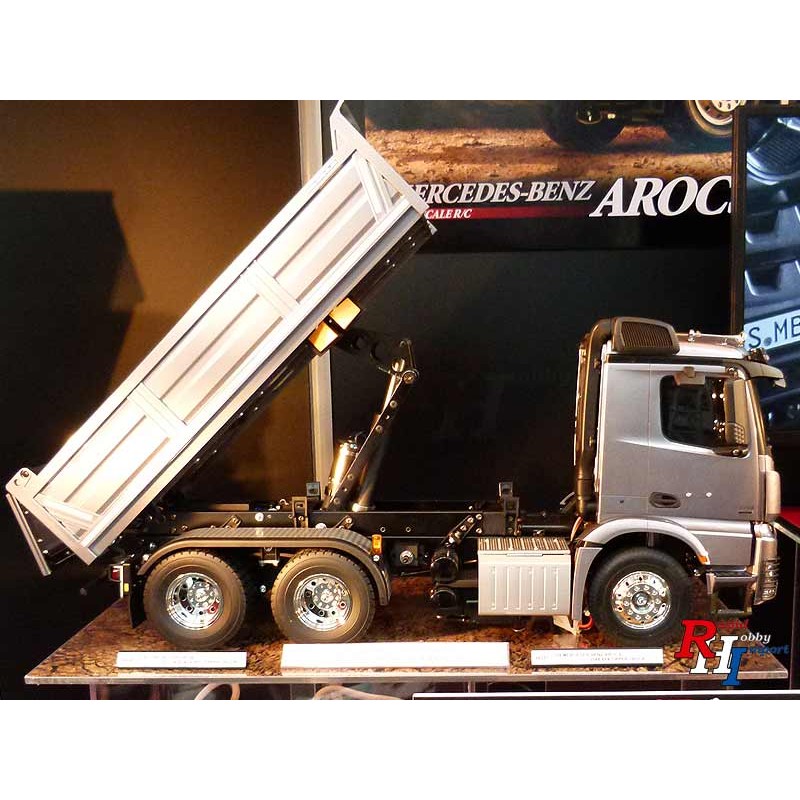

This is a highly accurate 1/14 scale radio control model that recreates the Mercedes-Benz Arocs dump truck. It features a highly realistic truck bed section behind the cab which can be operated by the radio transmitter, using the separately-sold Actuator Set (Item 56545)!

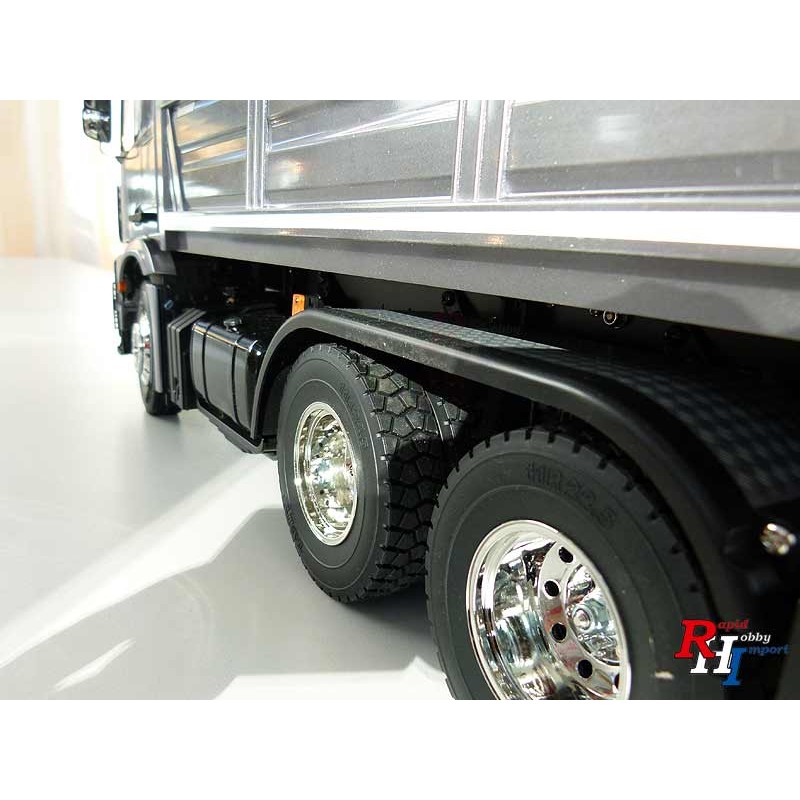

The model's ladder frame chassis features aluminum side channels with resin cross members and is equipped with a highly realistic suspension utilizing metal leaf springs and friction dampers. A front-mounted motor and 3-speed transmission power the two rear wheel axles, which are fitted with built-in differentials to enable smooth cornering. A 4-channel R/C system and multi-function unit allow you to drive the vehicle and experience realistic lights, sounds and vibrations. (Both sold separately)

Type Detail
Scale 1/14
Construction type Assembly kit
Terrain use On-Road
Drive-train 4-axle semi
Drive type Gearbox
Drive line Dog bone
Differential type Gear
Suspension Leaf spring
Steering mechanism Bell-crank
Shock damper Friction damper
Shock damper material Aluminum
Tire type Rubber
Tire tread Radial
Body material ABS Plastic
Chassis material Aluminum & plastic
Electronic Speed Control (ESC) Not included
ESC model N/A
LED Light buckets Yes
LED lights No
Motor 540- brushed type
Bearings Metal bushings
Adjustable camber Fixed
Adjustable toe angles Front only
Adjustable ground clearance Fixed
Adjustable gear ratio 3-speed transmission
Adjustable wheelbase Fixed
Adjustable track width Fixed
Adjustable shock angle Fixed
Special feature 1 Length: 538mm, Width: 195mm, height: 305mm
Special feature 2 The body of the Actros 3363 is recreated accurately using newly-molded parts differentiating it from the 1851 spec model
Special feature 3 The tried and tested Tamiya 3-axle chassis utilizes a tough ladder frame with aluminum side channels and resin cross members. A realistic drivetrain setup sees the front mounted motor powering twin rear axles.
Special feature 4 3-speed transmission can be controlled via 4ch R/C transmitter. Item 7255252 is the perfect radio to compliment the Actros kit
Special feature 5 Metal leaf spring dampers with built-in coil springs provide durable suspension
Special feature 6 Coupler is included to enable connection with any currently available Tamiya 1/14 scale trailers
Special feature 7 Compatible with the tractor truck option parts (TROP) Items 56531, 56532 and 56536. Use with Multi- Function Control Unit MFC-03 (Item 56523) (or MFC-01, Item 56511) for realistic LED lights and sounds
Special feature 8 Compatible with the tractor truck option parts (TROP) Items 56531, 56532 and 56536. Use with Multi-Function Control Unit MFC-03 (Item 56523) (or MFC-01, Item 56511) for realistic LED lights and sounds
Requires A 4-channel radio gear
Requires B Electronic speed control
Requires C TS plastic model paint
Requires D 7.2 battery & charger
