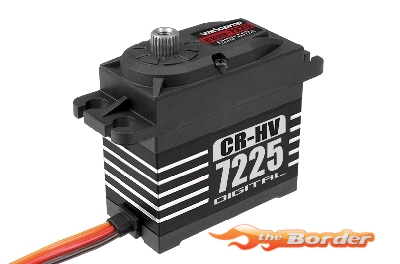

Varioprop Digital Servo High Voltage Metal Gear 25KG Torque 52022

Servo Technology
Digital Ultra High Voltage
Input Voltage (V)
6.0V – 8.4V
Servo Type / Size Standard
Water Protection water-resistant
Motor Type DC Motor
Gear Material Metal Gears
Servo Case
Aluminium – Composite
Servo Power – Torque Kg/cm 16 – 25 Kg/cm
Servo Speed 60°/sec 0,14 sec / 60°
Length (mm) 40.5 mm
Width (mm) 20.5 mm
Height (mm) 28.5 mm
Weight (g) 63 g
Speed 60°/Sec @ 6.0V 0,14 sec / 60°
Speed 60°/Sec @ 7.4V 0,13 sec / 60°
Torque kg/cm @ 7.4V 25.0 Kg/cm
Connector type JR
Spline size 25T Spline
Control system
PWM control
Refresh Rate
200Hz
