DSSERVO DS4125 Low Profile 25KG DS027

  • High-torque digital servo with up to 25kgcm torque at 7.4V
  • Precision 3-pole motor
  • IP66 ideal for off-road use and harsh environments
  • Wide operating voltage range from 4.8V to 7.4V
  • Voltage: 4.8V 6.0V 7.4V
    Torque: 20kgcm 25kgcm 29kgcm
    Speed: 0.20 sec/60° 0.18 sec/60° 0.15 sec/60°
    Motor: 3-pole digital
    Gear train: Gear ratio 365:1
    Bearings: Dual ball bearings
    Waterproof rating: IP66

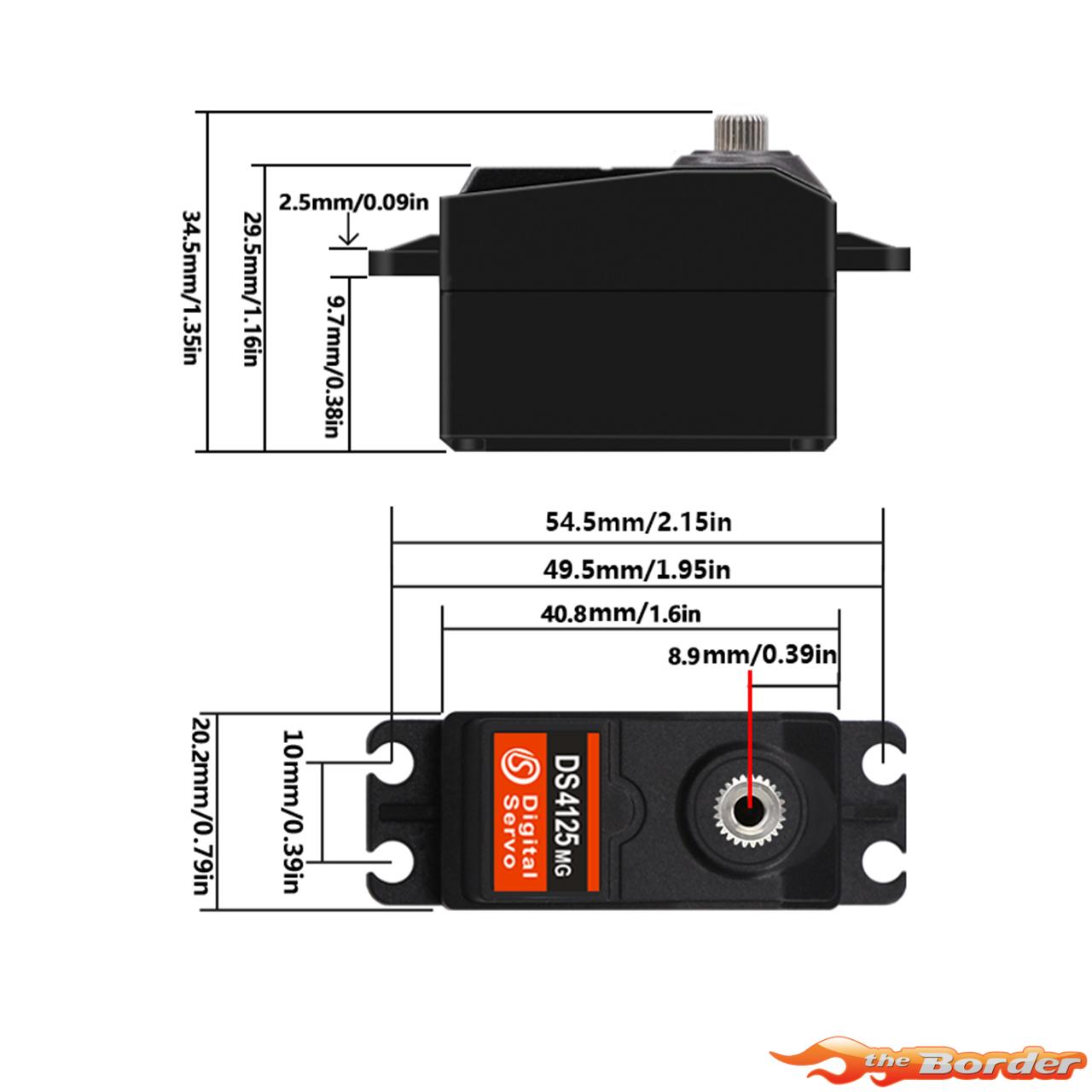

    Dimensions: 40.8 × 20.2 × 29.5mm
    Weight: 60g
    Signal input: PWM, pulse width 500–2500µsec
    Operating range: Control angle 180° / 270° (500–2500µsec)
    Frequency: 50–330Hz
    Deadband: 2µsec
    Cable length: approx. 300mm
