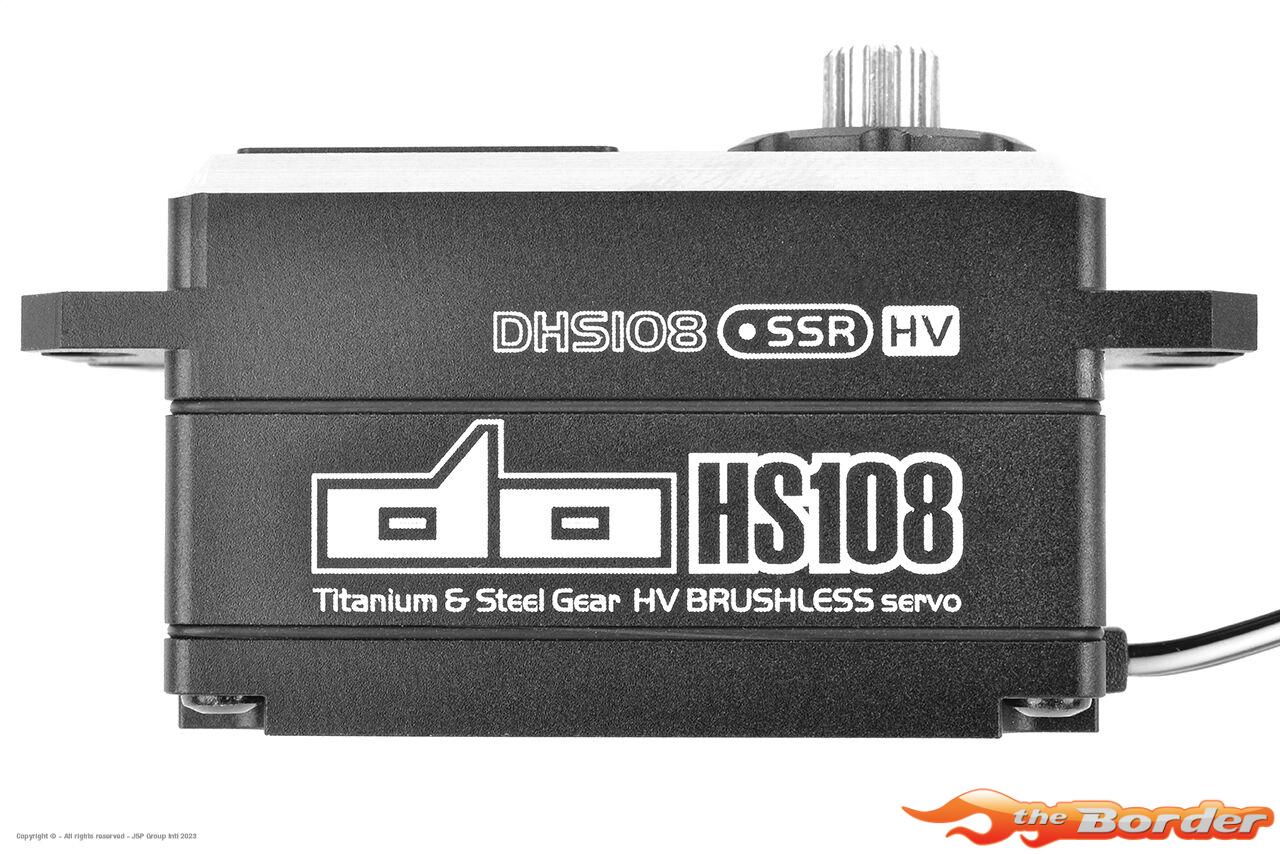

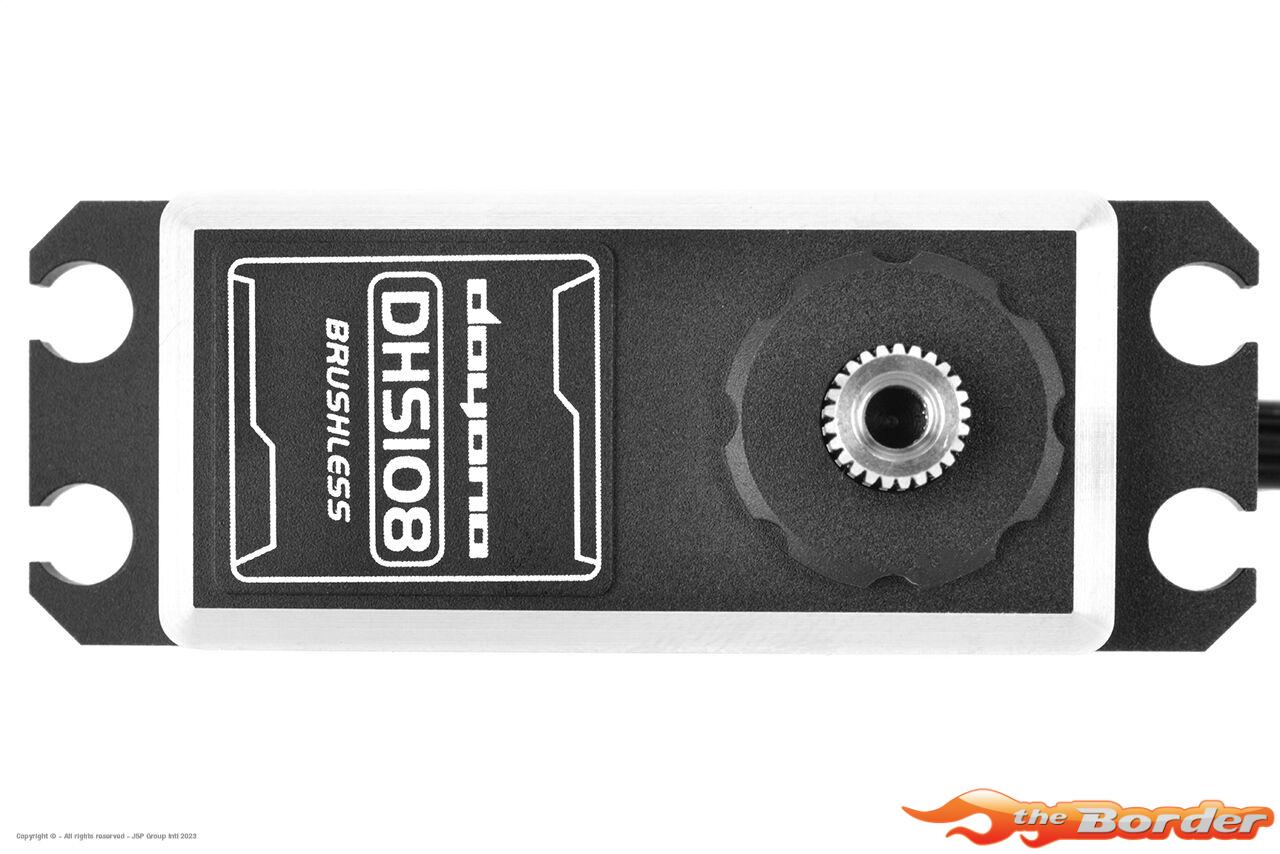

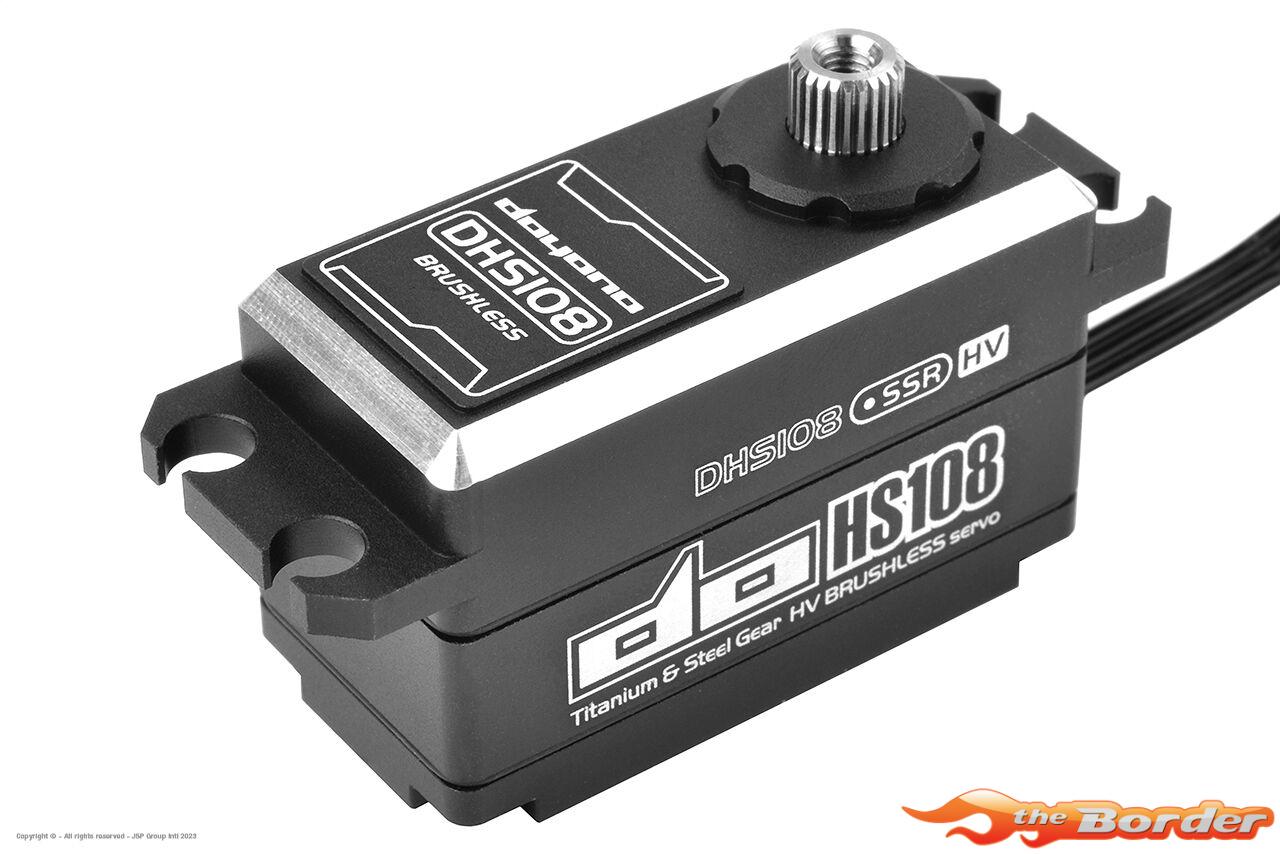

Doyono Digital HV Low Profile Servo full Metal 20KG/0.55sec DHS108

Doyono presents a range of superior servos available at an economical price point. This robust high-voltage servo, capable of delivering up to 20kgcm of torque, features a brushless motor and is engineered with a titanium steel gear set, all encased in a lightweight aluminum housing. This meticulous design ensures optimal performance, leading to an enhanced driving experience.

Features:
• High Voltage Capability Servo
• Gears crafted from resilient titanium and steel
• Featherlight aluminum housing
• Operating Voltage: 6.0-8.4V
• Precise 2µs dead band with a neutral point at 1520µs
• 180mm connection wire length for versatile installations

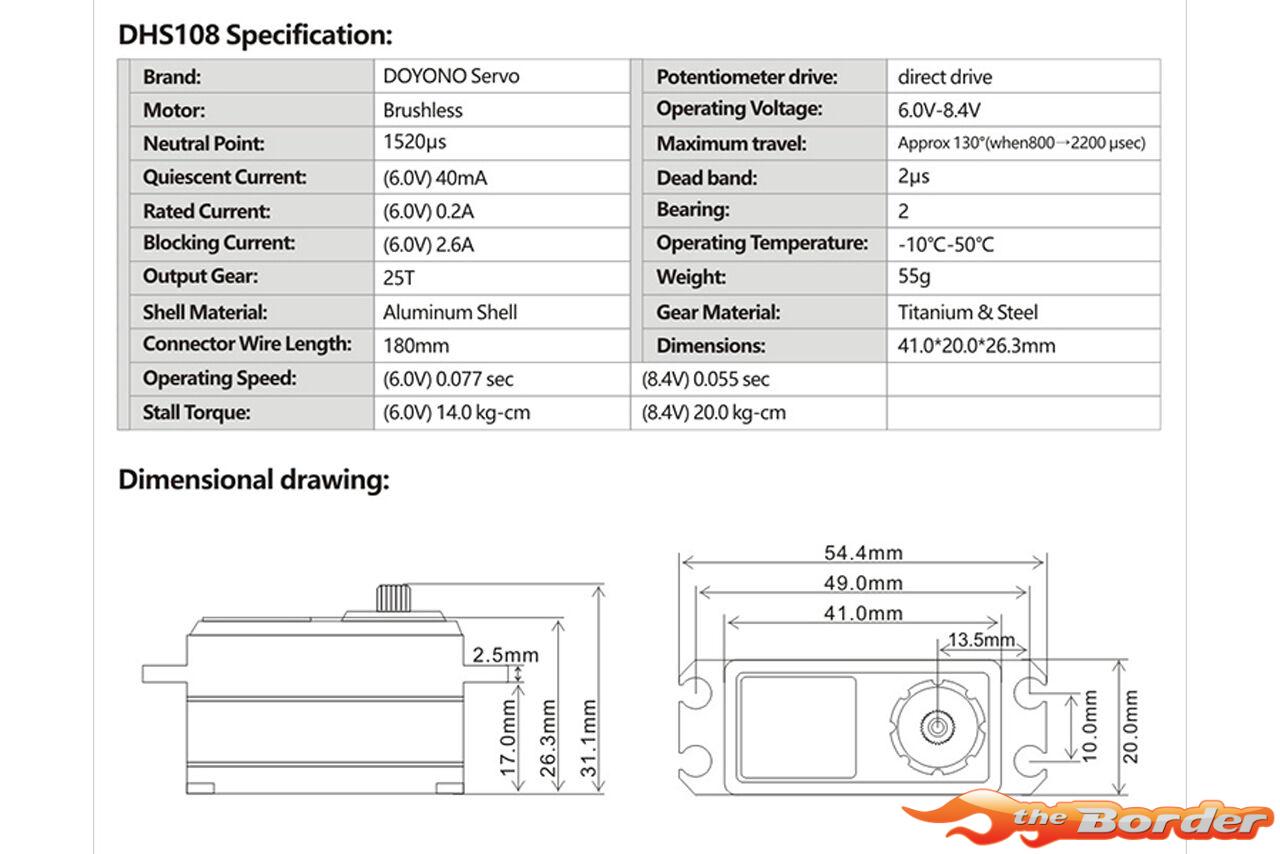

Technical Specifications:

Servo – Dimensions

Servo Type Low Profile Servo
Spline Type 25T Spline
Length (mm) 41
Width (mm) 20
Height (mm) 26,3
Weight (g) 55
Technology Digital HV
Operating Voltage (V) 6.0V – 8.4V
Servo Motor Brushless Motor
Servo Protection Water – Dust Resistant
Servo Positioning VR Potentiometer – Direct Drive
Servo Gears Titanium & Steel Gears
Servo Case Aluminium Case
Connector JR Universal + Black Lead

Servo – Specs Speed 60°/Sec @ 6.0V
Speed 60°/Sec @ 8.4V 0,06
Torque kg/cm @ 6.0V 14
Torque kg/cm @ 8.4V 20
