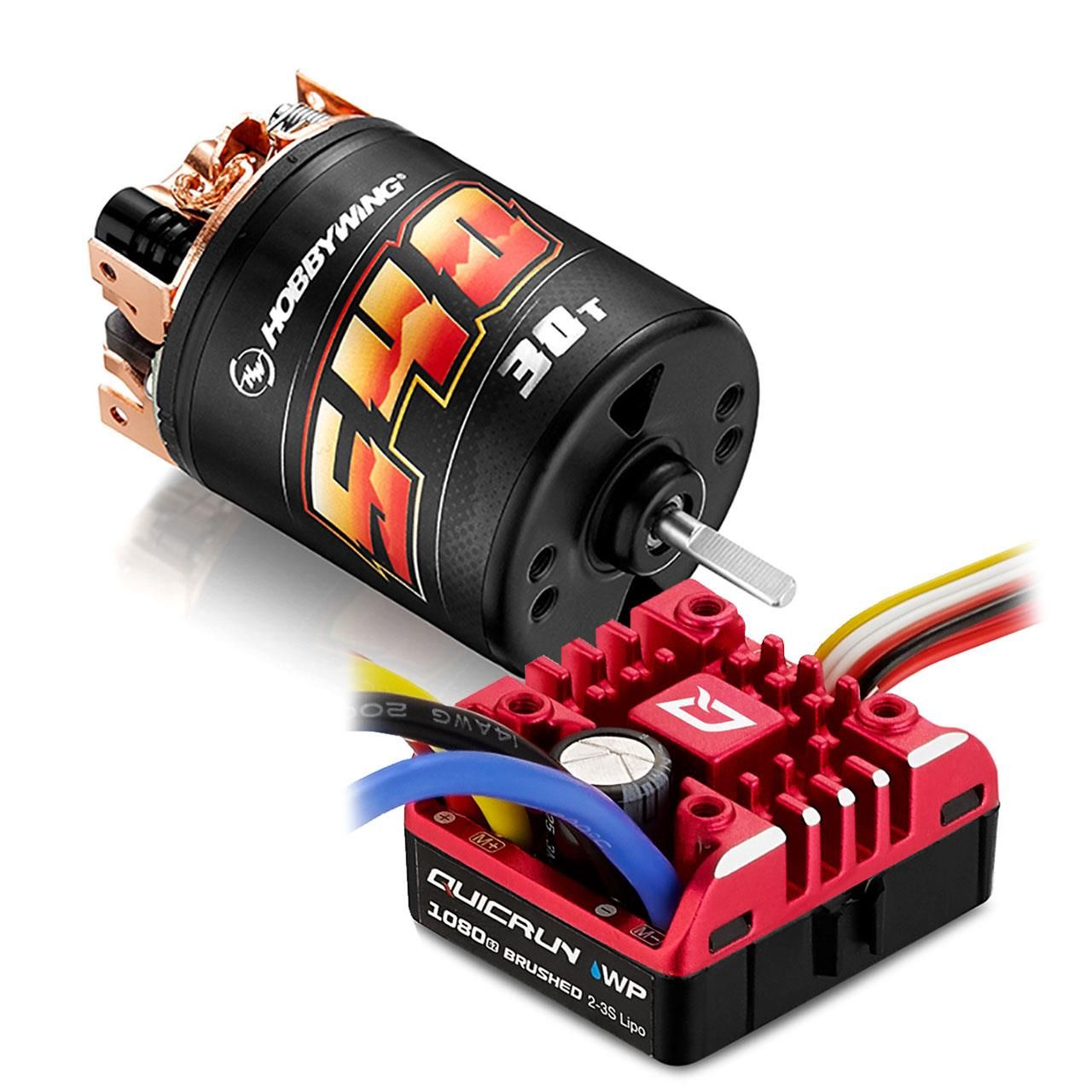

Hobbywing Quicrun Brushed WP1080 Combo 540 30T 3802049

Hobbywing Quicrun Brushed WP1080 Combo 540 30T 3802049

Thanks to this powerful combo consisting of the Quicrun WP1080 G2 and the 540 Quicrun Brushed Motor with 30T, the next 1/10 scale crawler adventure will be a fantastic experience.

The Quicrun WP1080 is the first controller with a real "Car Mode". This means that the direction of the motor can be switched in real time. It does this by using the idle channel on the transmitter and provides a unique driving experience unlike any seen before. The handbrake force can also be adjusted in real time, which would otherwise have to be changed via external programming with other controllers. Compared to the previous model, the Quicrun WP1080 G2 controller offers different upgrades. For example with the BEC, because not only 6V and 7.4V can be set in the G2 version – 8.4V at 6A are now also possible. A whopping 15 adjustable parameters and over 90 values also ensure that the controller can be completely adapted to your own needs.

Crawlers are well equipped with the matching motor, which is made of high-quality materials and has an adjustable timing from -20° to +20°.

Features:

Specially designed for 1/10 rock crawlers
BEC: 4A continuous and up to 6A peak load, adjustable to 6V, 7.4V or 8.4V
Water-proof controller according to IP67 standard
15 menu items for personal controller settings
Perfectly adjustable drag brake
Separate programming port
Small, light and yet robust
XT60 connector installed
Great efficiency with adjustable timing
Cogging free design
Incl. PCB board to avoid interference
Easily dismantled motor for maintenance work
Technical specifications:

controller
Type: Brushed
Current (continuous/short): 80A/400A
Number of cells: 2-3S LiPo / 5-9 cells NiMH
BEC: Switch Mode: 6V/7.4V with 3A, 6A peaks
Battery connector: XT60
Dimensions: 37.2×31.9×18.4mm
Weight: 70.2
Waterproof: Yes
Use: 1/10 Rock Crawler
engine
Type: Brushed
Number of turns: 30T
Speed at 7.4V: 14 000
Input voltage: <=12.6V
slots: 3
Length: 53.2mm
Diameter: 36mm
Shaft diameter: 3.175mm
Weight: 168g
Use: 1/10 on-road, buggy,
Crawlers & 2WD Trucks
Scope of delivery:

1x Quicrun WP1080 G2 controller
1x Quicrun Brushed 540 30T Motor
1x user manual (English)
