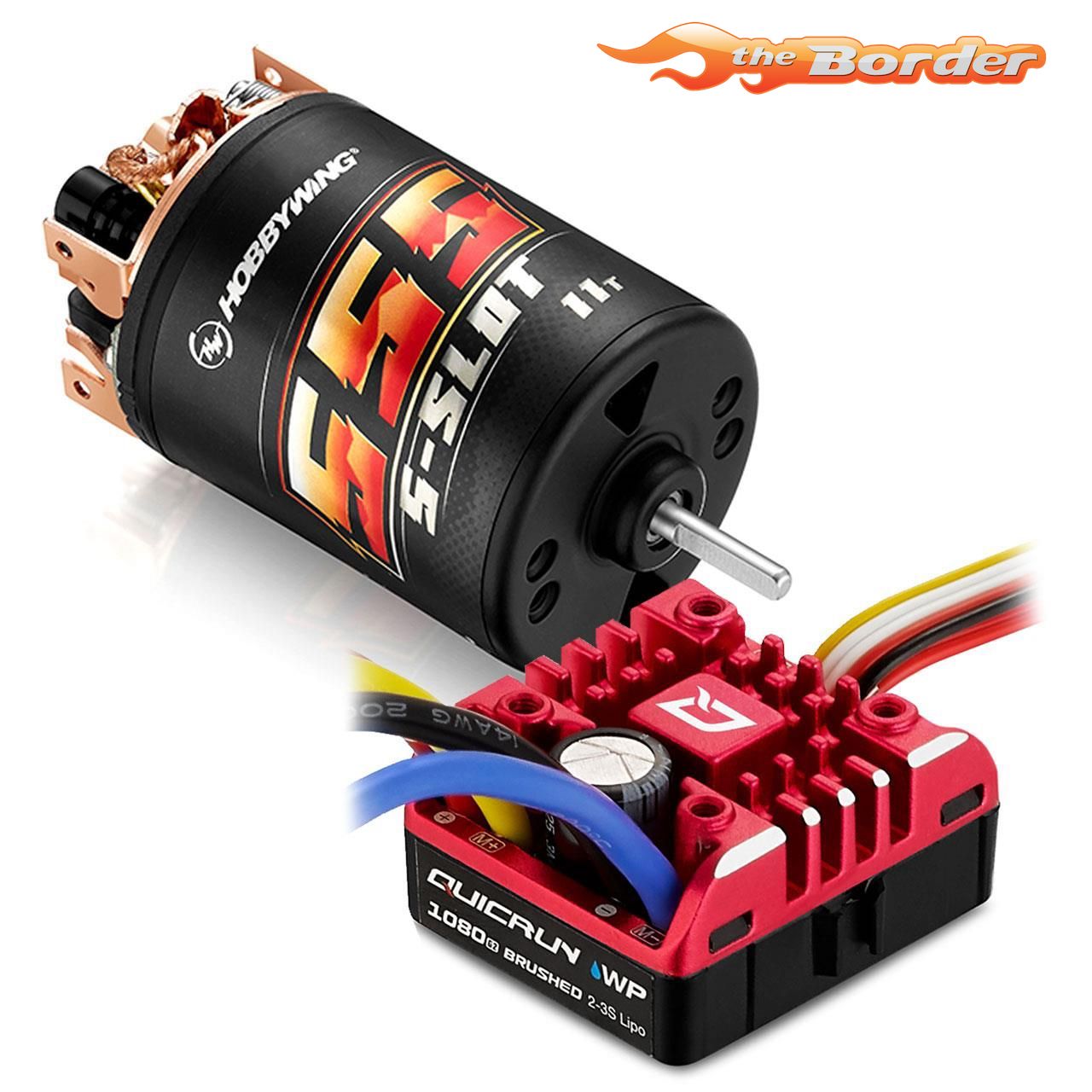

HobbyWing QuicRun Brushed WP1080 Combo 555 11Turns 38020351
This is the most powerfull brushed ESC available (80Amps) and it includes a free program box.

Also perfectly suitable for 1/10 touring cars such as the Tamiya TT-01, TT-02 and M-Chassis classes.

The first "real car mode"
The direction of the motor is switchable in real time by using the idle channel on the transmitter.
Pull the trigger for "forward"
Push the trigger for "brake"
Pull the trigger with the "reverse channel" on will give you "reverse"
(Requires an open channel on the receiver)
This new feature will provide the user with a unique experience unlike any other.

Real-time adjustment of drag braking force
Adjust the drag brake force in real time!
With the Drag brake Force Signal connected to an open channel on the receiver,
users can adjust the drag brake force on the fly with out the need to connect the Programmer.
(Requires open channel on receiver)

Temperature control upgrade
TThe New design reduces operating temperatures of the ESC by about 15 degrees improving reliability.
The ESC also has a fan mount to meet additional cooling needs.

Special Design for 1/10th, 1/8th Crawlers
The reliable hardware combined with powerful software (features an array of programmable parameters like start force, drag brake rate, and etc.) creates an ideal power solution to 1/10th, 1/8th rock crawlers.

Adjustable PWM Frequency & Advanced DEO/Freewheeling Technology
The adjustable PWM frequency combined with advanced DEO/freewheeling technology guarantees users great throttle linearity and driving feel.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the WP-Crawler-Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or debris.

Excellent Braking Performance
Hobbywing's innovative, fine-tunable drag brake rate and adjustable drag brake and brake force greatly improve the brag brake and allow users to have the excellent braking performance.

Super Internal BEC
The built-in switch mode BEC with a maximum output of 6A and voltage adjustable between 6V, 7.4V and 8.4V allows the use of various standard servos, high voltage servos and other peripherals.

15 Programmable Parameters
The WP-Crawler-Brushed, which features 15 programmable parameter items, is applicable to various vehicles and tracks.

Separate Programming/Fan Port
The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to a LED program box for ESC programming.

A LED Program Box is Included
A standard, dedicated LED program box (included in the box) allows users to program the WP-Crawler-Brushed easily. There are 15 programmable items on this ESC.

Type
Scale – 1/8th & 1/10th
Brushed/Brushless – Brushed
Waterproof – Waterproof

Specifications
Cont./Peak Current – 80A/400A
Input Voltage – 2-3S Lipo/5-9 Cell NiMH
BEC Output – Switch Mode: 6V/7.4V/8.4V@4A, 6A Peak

Wires & Connectors
Input Wires – Red-14AWG-200mm*1 / Black-14AWG-200mm*1
Output Wires – Blue-14AWG-200mm*1 / Yellow-14AWG-200mm*1
Input Connectors – XT60 Connectors
Output Connectors – 4.0mm bullet connectors female
(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via
SET Button on ESC – Supported
LED Program Box – Supported
LCD G2 Program Box – Not Supported
OTA Module – Not Supported
Program Port – Separate Program Port

Firmware
Firmware Upgrade – Not Supported

Size & Weight
Size – 37.2×31.9×18.4mm
Weight – 70.2g (w/Wires)

Applications
Motors – Brushed Motor (540/550 size motors)
Vehicles – 1/10th Rock Crawlers
