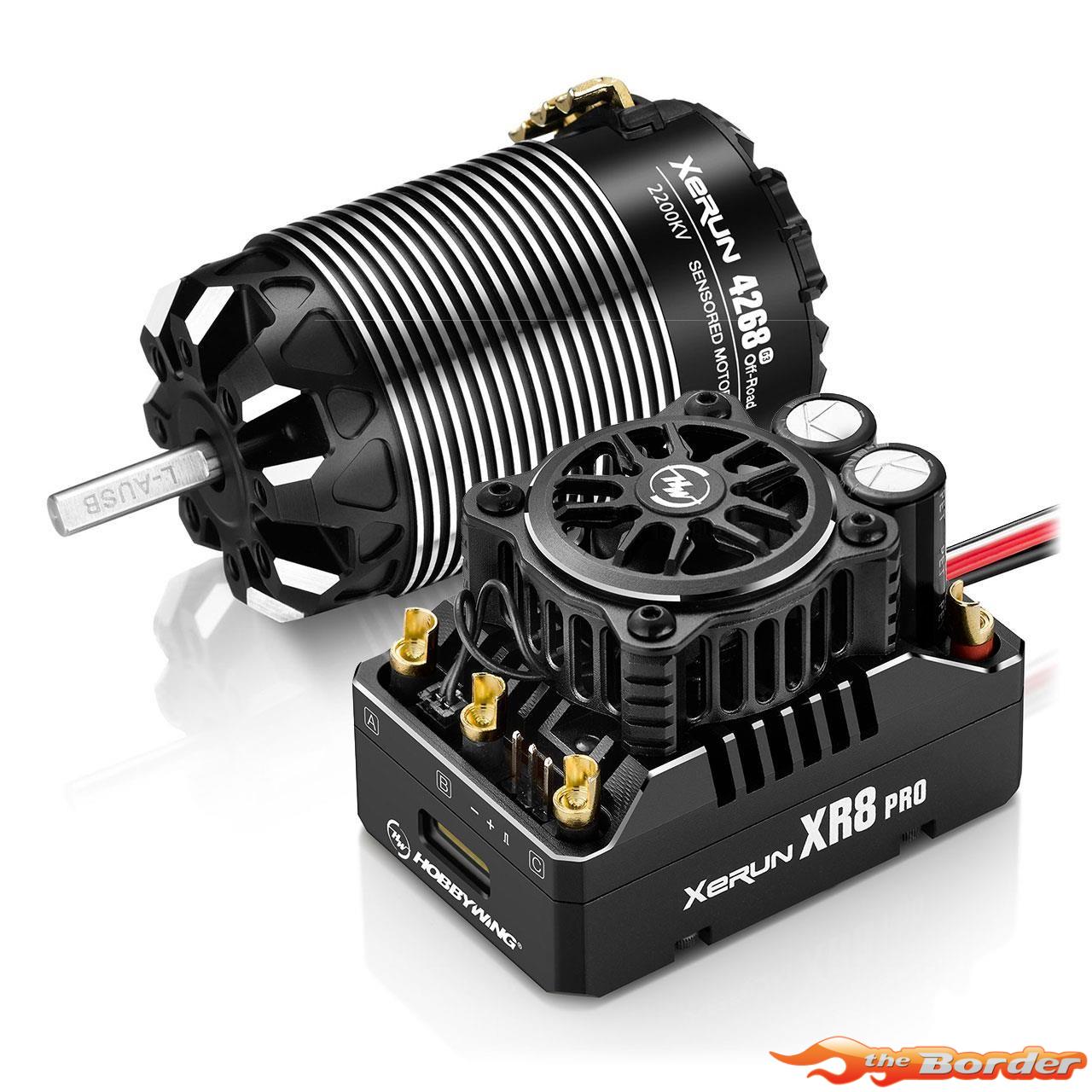

Hobbywing Xerun BL ESC XR8 Pro G3 200A 1/8 Combo 4268SD G3 2200KV 38020433
Hobbywing Xerun BL ESC XR8 Pro G3 200A 1/8 Combo 4268SD G3 2200KV 38020433
The latest combo by Hobbywing: the brand new XR8 Pro G3 200A ESC with the latest version of the 1/8 motor G3 in a 2250KV edition!
Full-Sensored Mode Supported
The XR8 Pro G3 ESC is designed to work in full-sensored mode at all times when it is paired with a compatible HOBBYWING motor. For example, G3 series 1/8th motors.
Battery-Reverse Polarity Protection
The XR8 Pro G3 ESC is designed with Built-in Reverse Voltage Protection Circuit. The circuit protects the ESC components from reverse polarity of the battery connections.
Advanced Boost & Turbo Timing Technology
This ESC paired with a compatible HOBBYWING motor can use the Turbo Timing technology which was designed for the successful XR10 Pro series ESC used in 1/10th On-Road and Off-Road competition.
This ESC can support up to 48 degrees of Boost and Turbo Timing when paired with the new HOBBYWING 4268/4274 G3 motors with an increase of 50% more performance than the previous G3 series motor keeping you way ahead of the competition.
Capacitor Thermal Protection
Capacitor thermal protection is designed and implemented into the ESC in which will effectively prevent capacitors from exploding and causing irreversible damage to the ESC due to overload.
Powerful Internal BEC
The built-in switch mode BEC with a maximum output of 15A and voltage adjustable from 6V to 8.4V (step: 0.1V) allows the use of various standard servos and high voltage servos.
Wireless Programming / Upgrading / Data Logging
With HOBBYWING OTA programmer and a smartphone (with the HOBBYWING HW Link V2 App installed), the user can program parameters, upgrade firmware and check relevant data of the ESC.
The XR8 Pro G3 ESC paves the way for a completely new generation of ESCs. Designed for use with 2-4S LiPos or 6-12 cell NiMH batteries, the optimized cable routing and the elegant appearance are examples of the high-quality workmanship. Compared to the XR8 Plus ESC, it is also lighter and smaller. So it is easy to see how much thought has been given to a good, user-friendly product design.
In terms of functionality, an extended BEC of 6-8.4V in 0.1V steps scores points. This means that even more servos can be addressed than with conventional ESCs. The greatly increased capacitance of the capacitors is also a real improvement. And those who value performance measurement themselves will of course get their money’s worth. Because if the ESC is linked to the Hobbywing application, the collected data can not only be evaluated offline, but also viewed live.
The G3 Series is Fail Safe and reliable using Hobbywing’s new motor Hall sensor technology
The motor sensor system adopts patented technology of “error-free” Hall sensor technology, with an independent high-speed and high-precision encoder of which will always output a pure and accurate rotor position signal, which effectively will isolate any external interference which are known to cause errors of the sensor signal. This accurate sensor system will allow the motor to function at its peak performance in a very stable sensor state.
Low rpm (no current) torque
The motor also minimises the low rpm (no current effect) also known as cogging and small torque pulse.
It is very smooth at low rpm increasing its performance at low speeds.
Belangrijke eigenschappen
Up to 30 parameter setting options
Full-sensored mode support (when operated with a suitable HOBBYWING motor)
Super BEC with max.15A and 6-8.4V for the use of various servos
Internal protection against incorrect connection of the battery
Thermal protection of the capacitors so that explosions are prevented
Easy to program and without any cables with the WiFi module or OTA programmer as well as a smartphone
Evaluate the data offline and in real time with the associated app
Specificaties
Type: Brushless Sensored
Current cont./peak 200A/1080A
Input Voltage: 2S-4S LiPo, 6-12 cells NiMH
BEC: 6V-8.4V, 6A
Waterproof: No
Programmable: – LCD Program Box
– Wifi Module
– OTA Programmer
– independent programming port
Size: 56.1×42.1×38.6mm
30x30x10mm (Fan)
Weight: 114g
Application: 1/8 Off-Road, On-Road, Truggy
