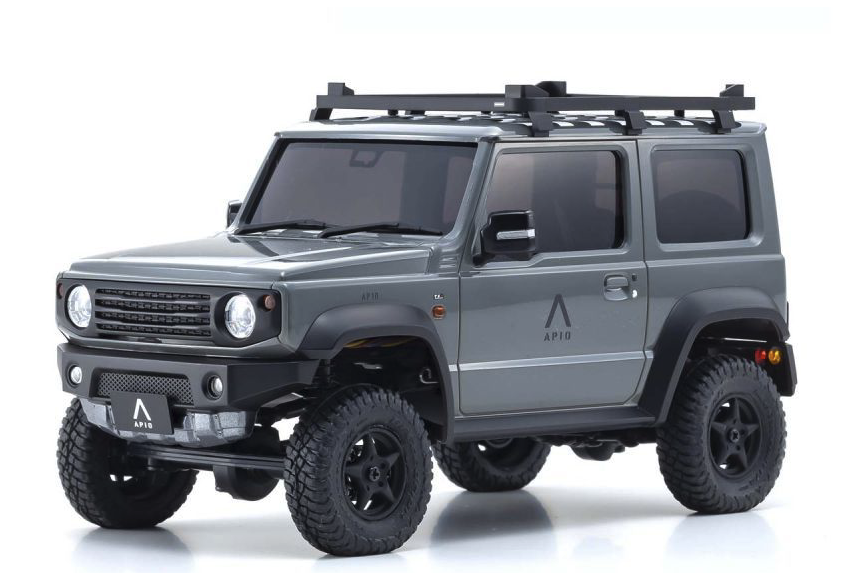

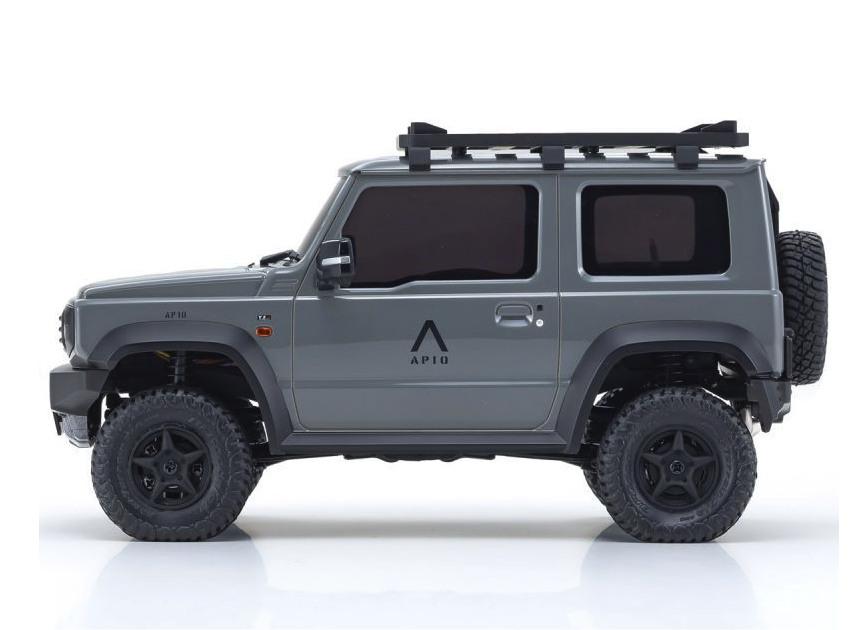

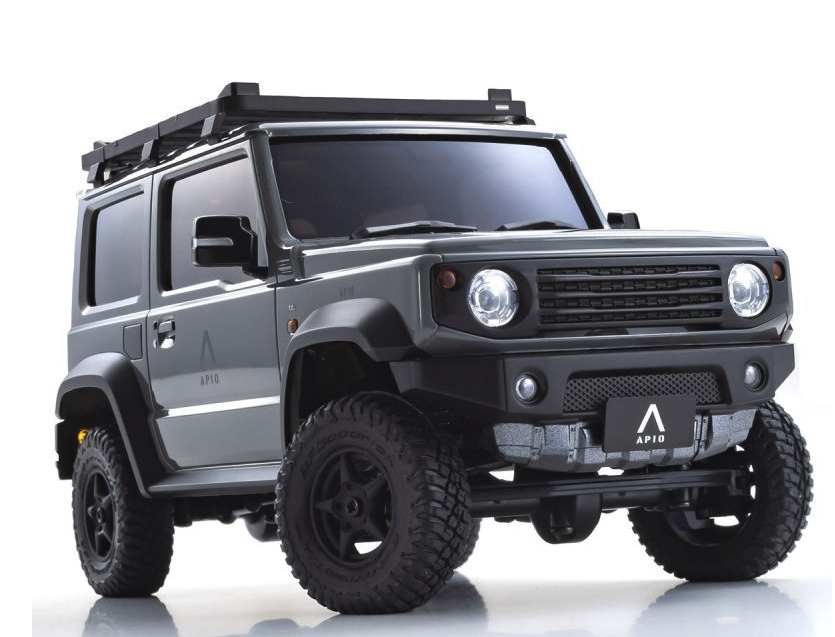

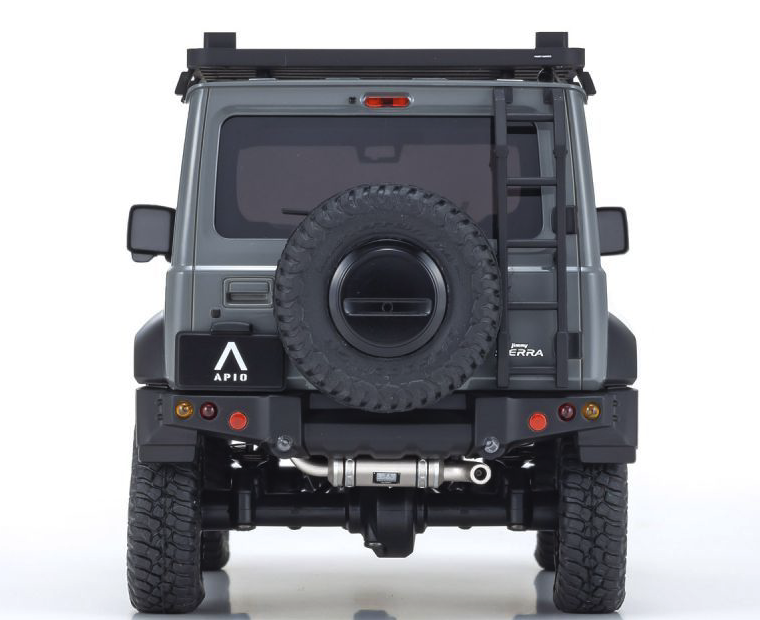

Kyosho Mini-Z 4×4 MX-01 SUZUKI JIMNY Sierra Apio TS4 Gray (KT531P) 32525G

One of the main draws of the MINI-Zs has always been the greater emphasis of body detail and quality of finish, and the 4×4 surpasses existing benchmarks set by the MINI-Z series. The body is molded with thicker material to better resist crash damage from operation in rough terrain. Incorporating the same ladder- style frame of real 4WD vehicles, the MINI-Z 4×4 boasts a 3-link rigid axle suspension combining what would normally be two upper links into a single upper A-arm to deliver maximum suspension movement. A specially designed high-torque steering servo enables this machine to throw its elbows around in the hard terrain for excellent performance in the toughest rock-crawler conditions. The high-torque 130-size motor brings out the beast in the MINI-Z 4×4, specially geared to run well in the low to medium speed ranges common in crawling.

Designed to balance exquisite style, scale detail and superior driving performance, all the MINI-Z 4×4 needs is eight AAA alkaline batteries (sold separately). Whether you take your MINI-Z 4×4 to your local park or just crawl across your own desktop, the Mini-Z 4×4 is a mini crawler that delivers a full range of scale crawling performance in a smaller, compact package.


  • Molded with a thick body material for a crash resistance
  • Extreme scale detail of Jimny Sierra Body
  • Incorporated ladder- style frame of real 4WD vehicles
  • 3-link rigid axle suspension
  • Specially designed high-torque steering servo
  • High-torque 130-size motor


Length: 200.5mm

Width: 87mm

Weight: 86.0mm

Chassis Type: MX-01

Wheel Base: 110mm

Tread F/R: 72.7mm

Weight: 223g (excl. battery)

Motor/Engine: 130 Class

Gear Ratio: 55.44:1/ 30.80:1/ 46.20:1/ 27.72:1/ 39.60:1/ 34.65:1

Front Tire Diameter: 42.0mm

Rear Tire Diameter: 42.0mm

Front Tire Width: 14.3mm

Rear Tire Width: 14.3mm

Battery: (4) AAA alkaline

Transmitter: Syncro KT-531P

Speed Approx.: 3.3km/h-6.6km/h  (Pinion gears 10T- 20T)

Running Time: Approx. 60 mins



  • (1) Complete chassis with built in electronics
  • (1) Factory painted body complete with fine details
  • (1) KT531P 2.4GHz transmitter
  • (6) Pinion gear set (10T, 12T, 14T, 16T, 18T, 20T)
  • (3) Pinion gear spacers

Needed to Complete:

  • (4) AAA batteries for the transmitter
  • (4) AAA batteries for the chassis

Kyosho Mini-Z MX-01 4x4 Exploded View

Download(2 MB)

Kyosho Mini-Z MX-01 4x4 Exploded View
