€ 498,95 inc. BTW

Op voorraad

Qty
Stel een vraag over dit product

RC4WD Trail Finder 2 Truck Kit SWB 1/10 Scale Crawler Kit RC4ZK0045

RC4WD Trail Finder 2 Truck Kit SWB 1/10 Scale Crawler Kit RC4ZK0045

The TF2 SWB has both detailed styling and aggressive performance.
You will find a balance of capability and performance built into every TF2.
Performance of the TF2 is smooth and with its R3 single speed transmission, 4WD drivetrain, bullet-proof transfer case and quality metal  components throughout.
The TF2 is truly a work of art in both appearance and performance.
Every TF2 SWB is compatible with a full range of option parts designed to enhance the performance and add to the scale look of the only true scale 1/10 offroad truck… The Trailfinder 2 SWB.

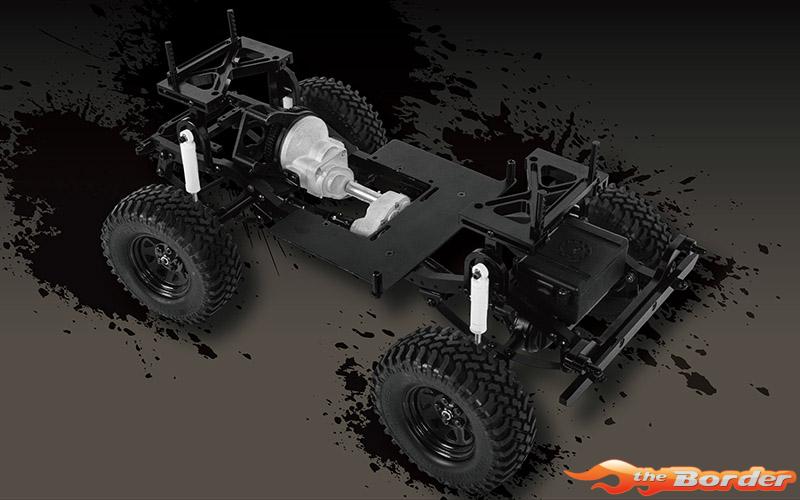

Realistic Billet Aluminum Ladder Frame Chassis “SWB”
R3 Single Speed Transmission
Center Mounted Realistic 4×4 Transfer Case
Yota II Ultimate Scale Cast Axle

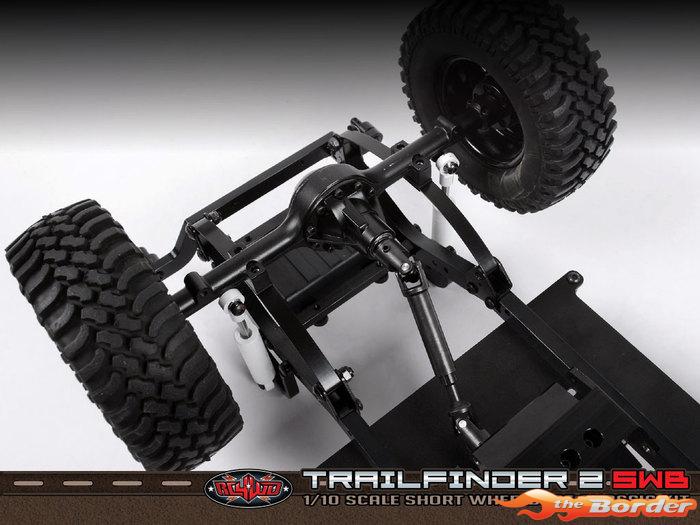

True to Scale Leaf Spring Suspension
5 Lug Wagon 1.9″ Steel Stamped Beadlock Wheels (Black)
Mud Thrashers 1.9″ Scale Tires
Realistic Bumpers and Skid Plate

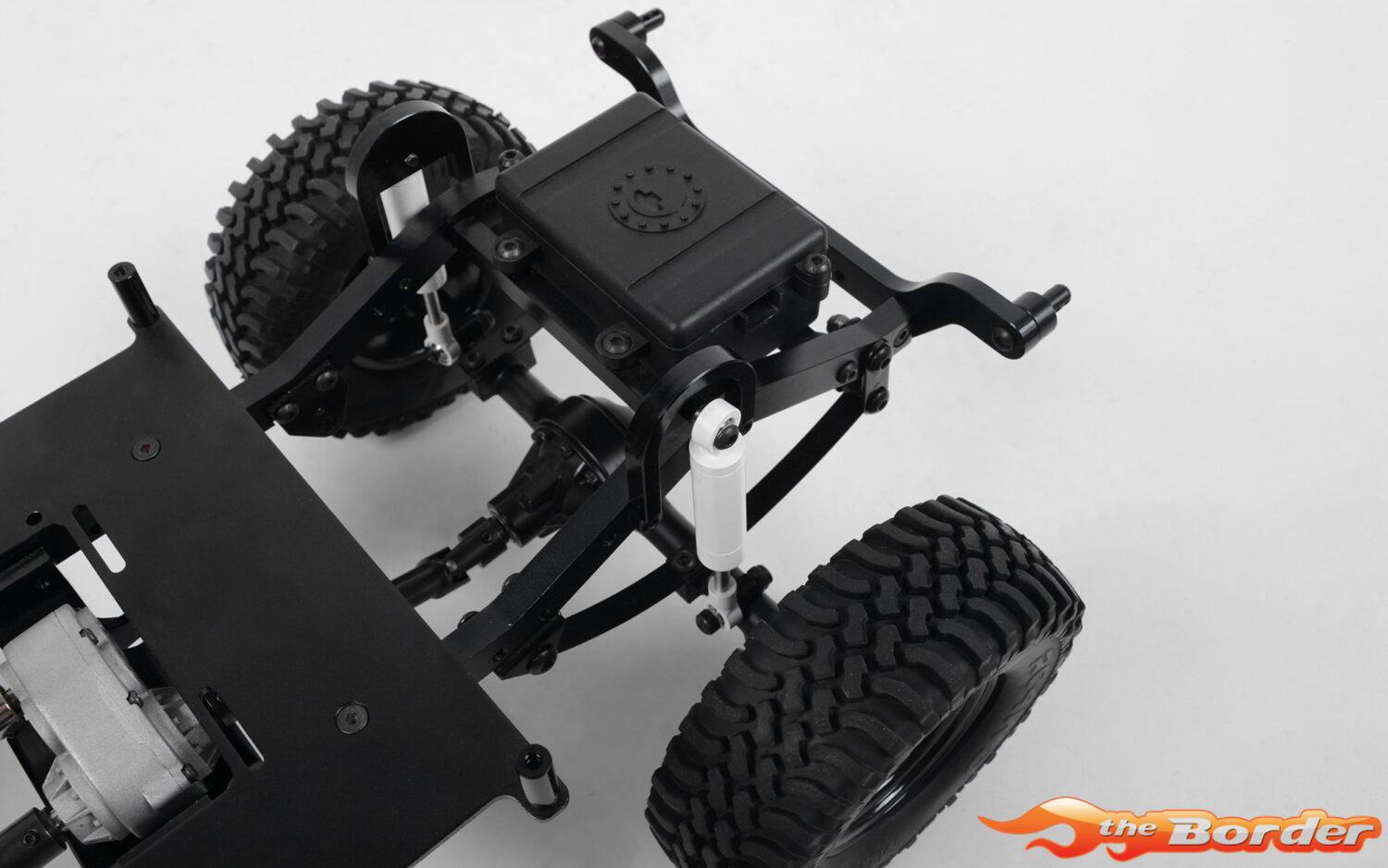

Chassis Mounted Steering Servo
RC4WD Scale Shock Absorbers
Plastic Rod Ends
Full Ball Bearings

NOW FEATURING XVD AXLE SHAFTS

The axles are now designed to accommodate leaf springs in two configurations: Over the axle for an off-road appearance and under the axle for a street look. This dual design eliminates the need to flip the axle, providing ease of use. Z-S2135 is needed for proper leaf under-assembly.

We’ve reinforced our steering knuckles with improved screw thread engagement. This eliminates thread stripping, guaranteeing a solid connection for maximum steering precision and durability, even in the most demanding RC conditions.

All New Hammer Transfer Case
Ratio – 1.47:1
Gears – Wide .8 Mod steel gearsAll New R3 Single Speed Transmission
Ratio: 1.78:1
Pinion/spur 14/64 = 4.57:1Cast Yota 2 Axles
Ratio: 15/40 = 2.67:1
Width at hex: 176.5mmTrailfinder 2 SWB Chassis
Features – Billet aluminum construction Adjustable shock hoopsDriveshafts
RC4WD Scale Steel Punisher Shaft
Heavy duty steel constructionWheels
Type: 1.9 Steel Beadlock Wheels with Lug Nuts
Hub: Pin type
Width: 25mm
Back spacing: 11mm

TF2 SWB Dimensions
Wheelbase: 9.5in / 242mm
Width: 8.3in / 211mm
Height: 5.55in / 141mm
Ground Clearance: 2.3in / 58.5mm
Overall Length: 15.31in / 389mm
Weight: 62.1oz / 1.76kg

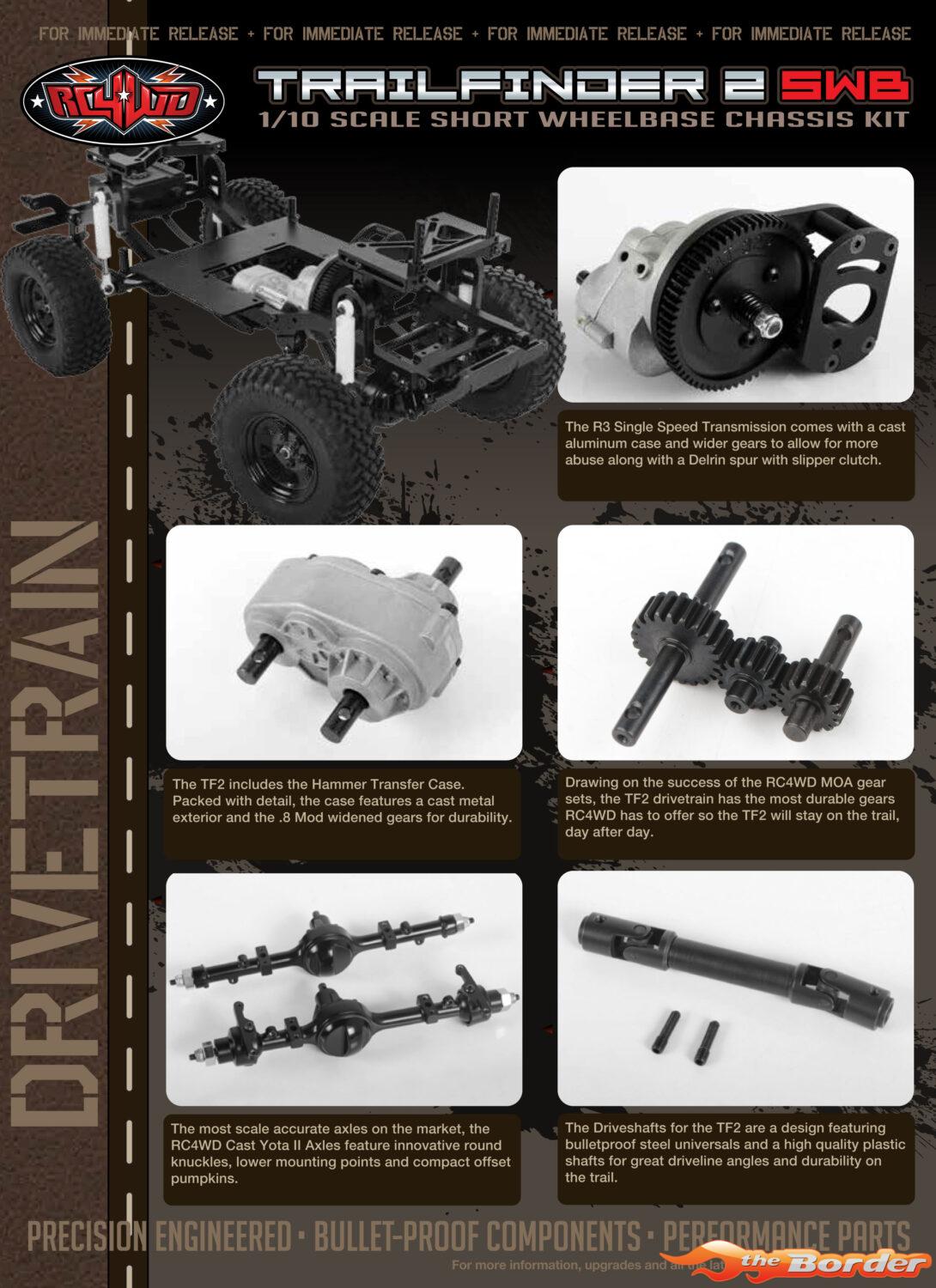

DRIVETRAIN

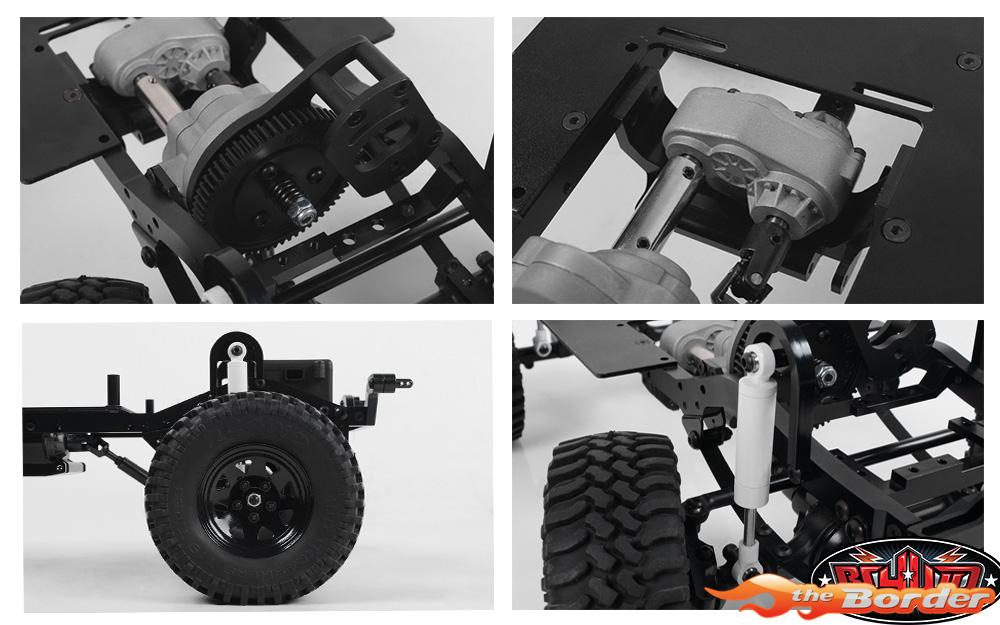

The TF2 includes the Hammer Transfer Case. Packed with detail, the case features a cast metal exterior and the .8 Mod widened gears for durability.
The most scale accurate axles on the market, the RC4WD Cast Yota II axles feature innovative round knuckles, new lower mounting points and compact offset pumpkins.

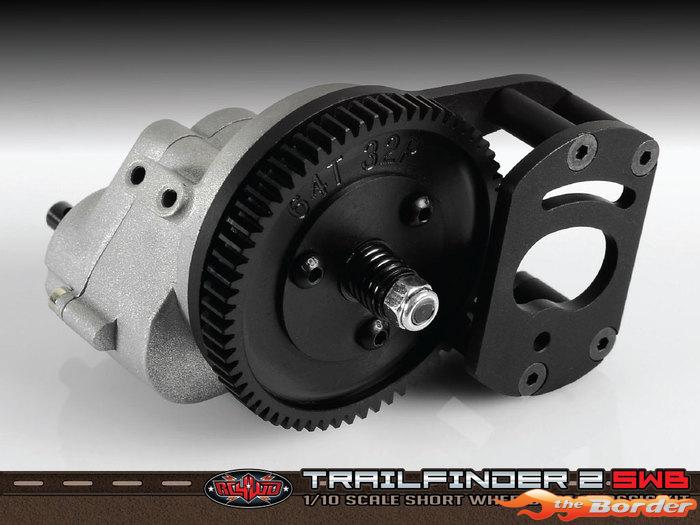

The R3 Single Speed Transmission comes with a cast aluminum case and new wider gears to allow for more abuse along with a Delrin spur with slipper clutch.
Drawing on the success of the RC4WD MOA gear sets, the TF2 drivetrain has the most durable gears RC4WD has to offer so the TF2 will stay on the trail, day after day.

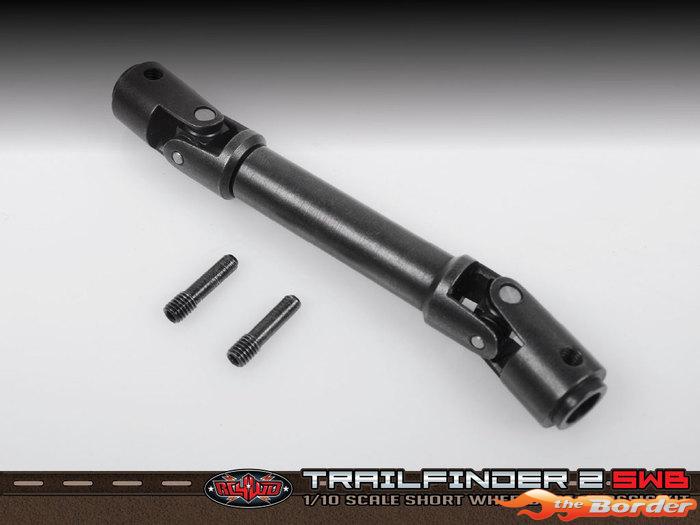

The Driveshafts for the TF2 are an all new design featuring bulletproof steel universals and a new high quality plastic shaft for great driveline angles and durability on the trail.
RC4WD Trail Finder 2 Truck Kit SWB 1/10 Scale Crawler Kit RC4ZK0045

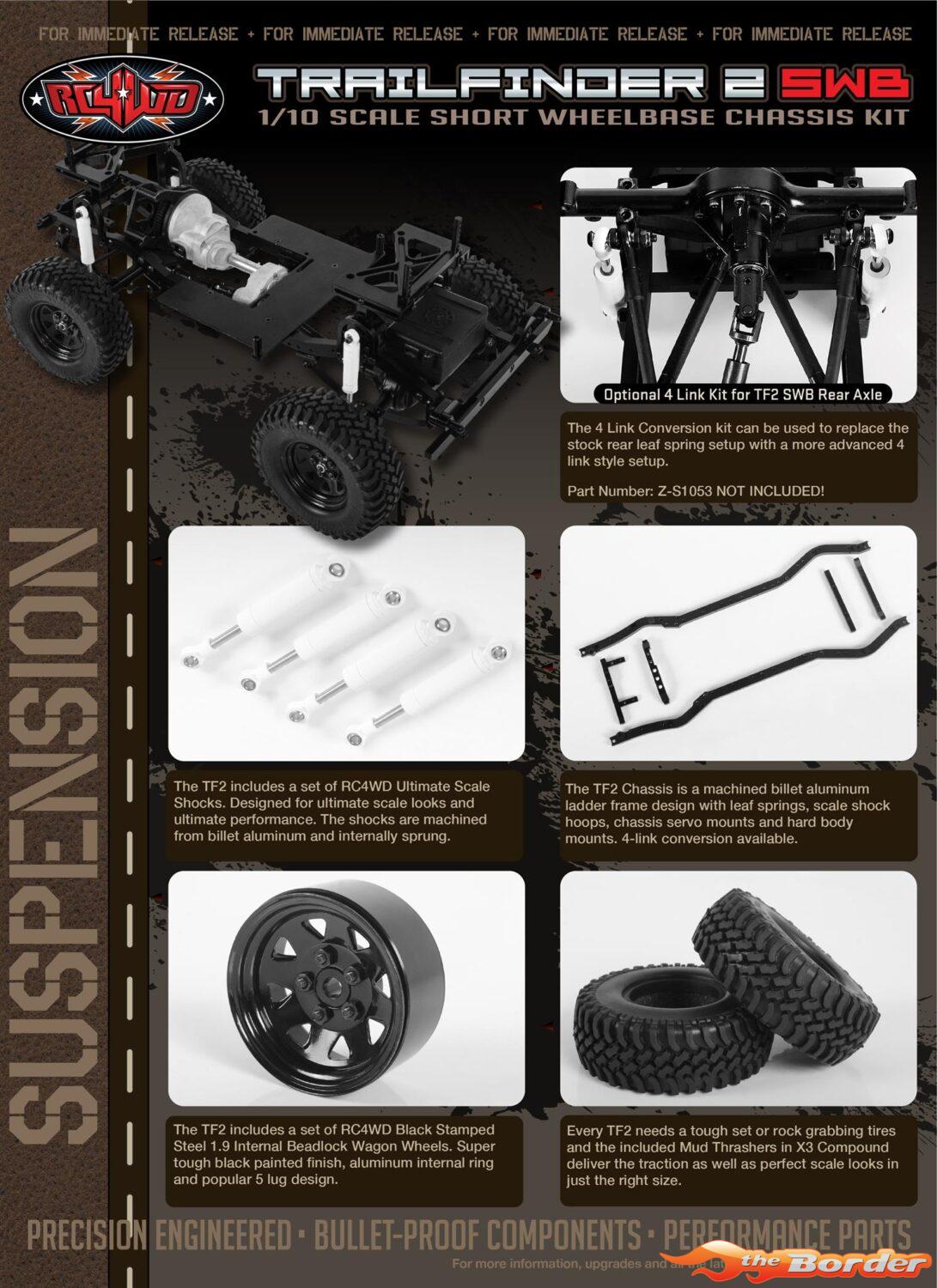

Suspensions

The TF2 includes a set of RC4WD Ultimate Scale Shocks. Designed for ultimate scale looks and ultimate performance. The shocks are machined from billet aluminum and internally sprung.
The TF2 includes a set of RC4WD Black Stamped Steel 1.9 Internal Beadlock Wagon Wheels. Super tough black painted finish, aluminum internal ring and popular 5 lug design.

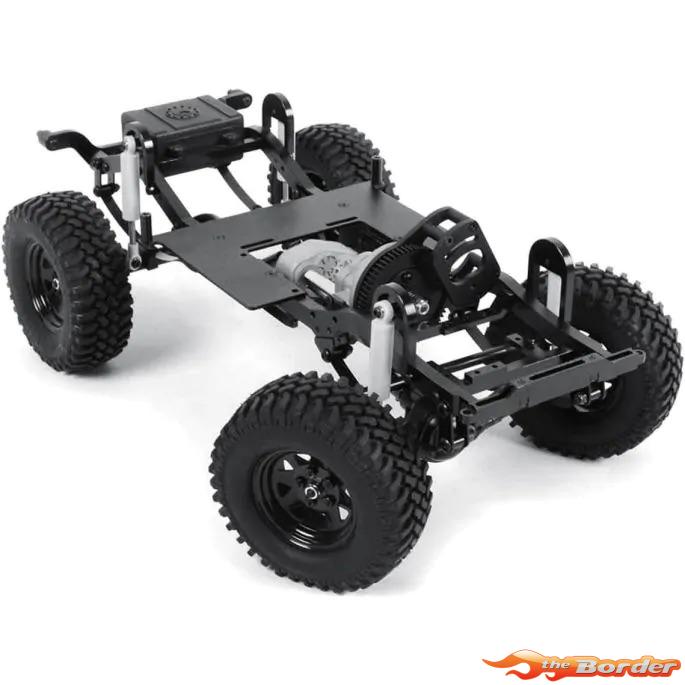

The TF2 Chassis is a machined billet aluminum ladder frame design with leaf springs, scale shock hoops, chassis servo mounts and hard body mounts. 4-link conversion available
Every TF2 needs a tough set or rock grabbing tires and the included Mud Thrashers in X3 Compound deliver the traction as well as perfect scale looks in just the right size.

What’s Included:
1x RC4WD Trail Finder 2 SWB
Universal Body Mounting Kit for TF2 SWB

Notes:
While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
Use good quality hex drivers to avoid stripping screw heads.
Use thread lock when putting metal screws into metal parts.
Steps marked with an asterisk (*) require thread lock.
Use thread lock sparingly.
Do not over tighten screws otherwise you may strip the thread.
No electronics included.
