Team Associated RC28R.1 Team Kit AE20194

Team Associated RC28R.1 Team Kit AE20194

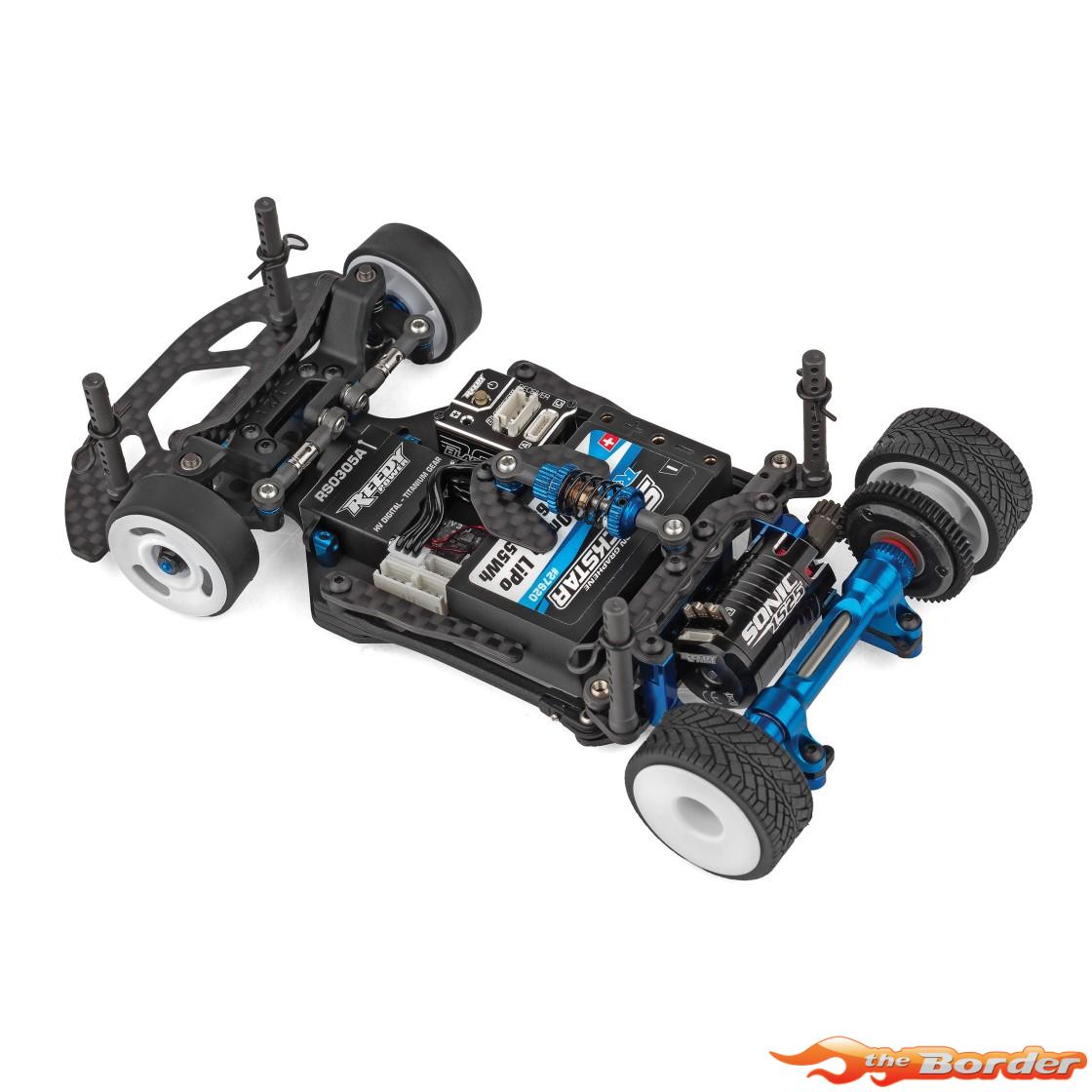

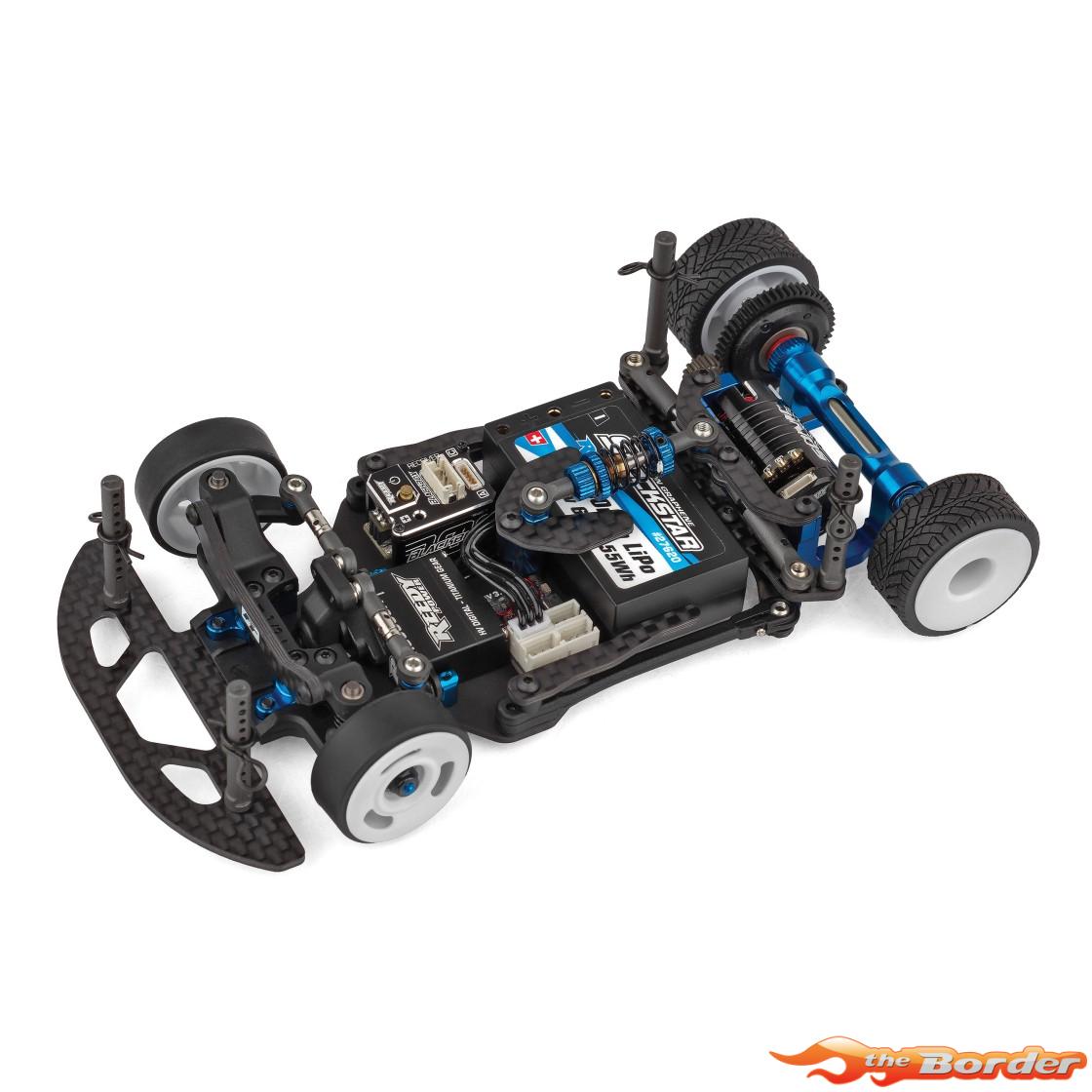

The Team Associated RC28R.1 brings the uncompromising engineering expertise of the renowned AREA 51 design team to the 1:28 micro class. Despite its ultra-compact dimensions, this purebred on-road chassis delivers the driving feel and tuning precision of full-scale competition platforms. Featuring a redesigned steel chassis plate, carbon fiber upgrades, and innovative torsion side links, the RC28R.1 combines ultimate torsional stiffness with straightforward chassis tuning—perfect for thrilling, tight-quarters racing action.

Innovative Torsion Suspension and Modular Axle Geometry

In place of traditional side springs, the RC28R.1 utilizes torsion side links (included in Soft, Medium, and Hard rates). These simplify setup considerably while ensuring predictable, linear steering response under hard cornering loads. Paired with side damper tubes and a central aluminum threaded coil-over shock, pitch, roll, and droop can be dialed in with millimeter accuracy.

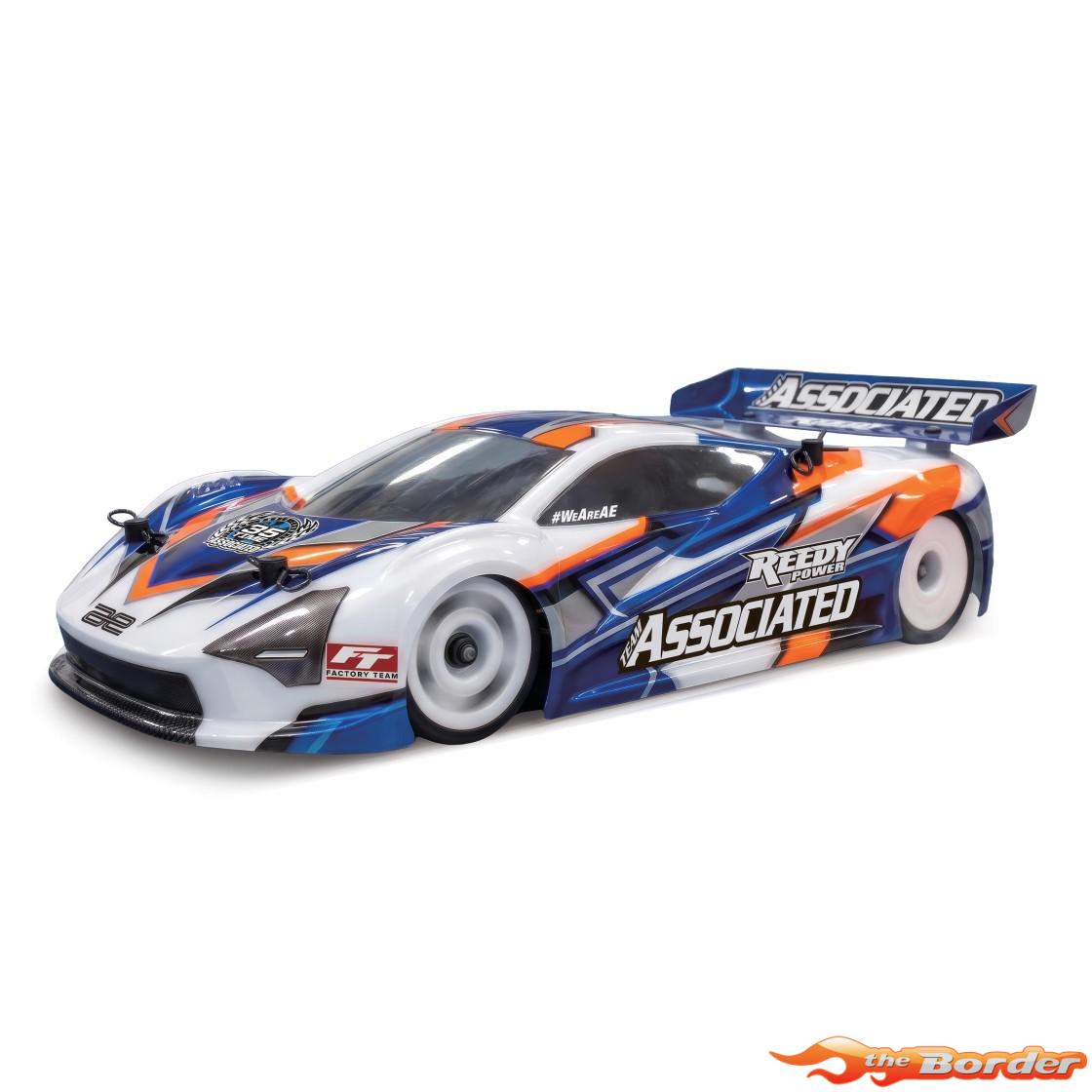

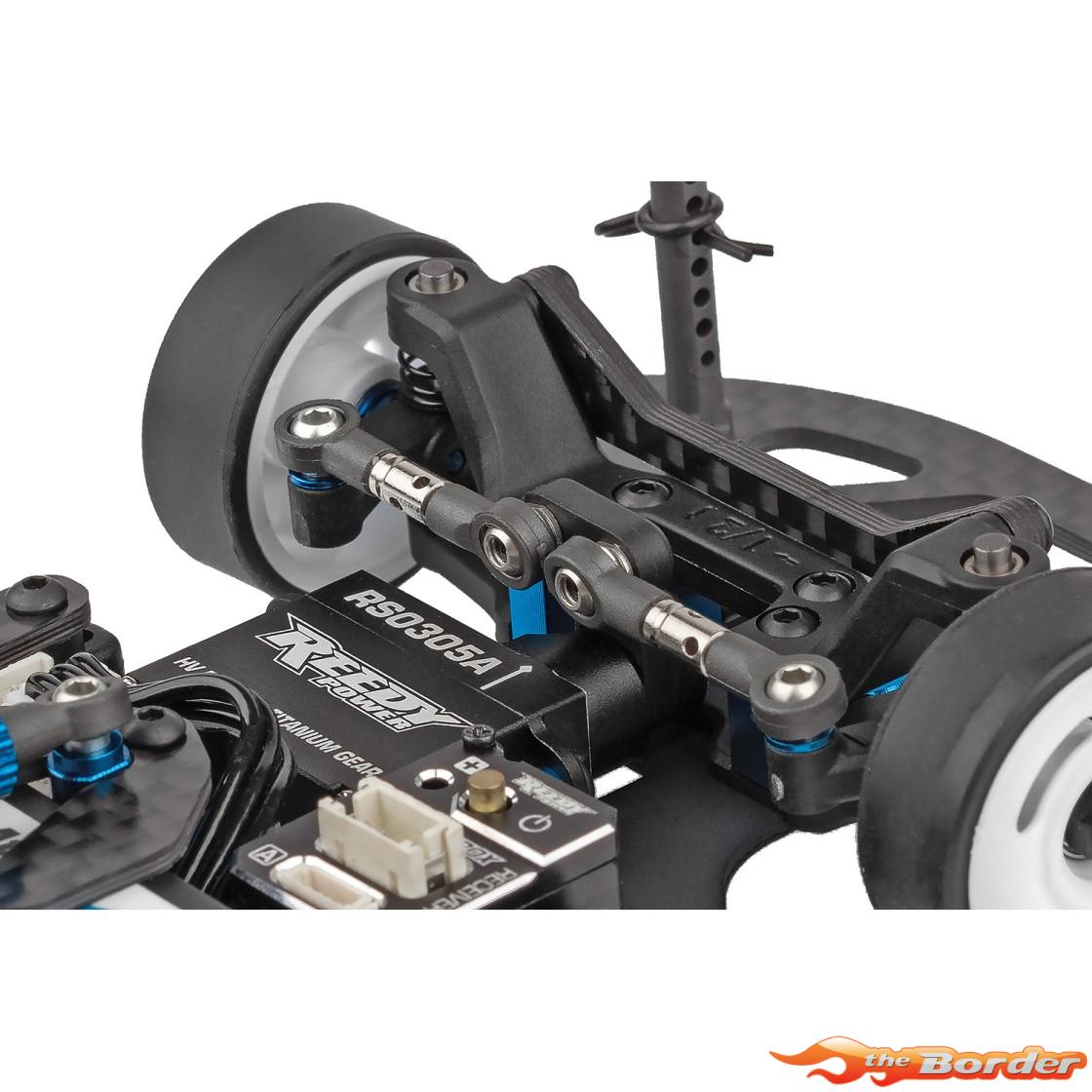

The updated front suspension features an FT carbon fiber arm brace, front bulkhead shims, and modular upper arms for 0.5° and 1.0° camber along with 2° and 4° caster. The two-piece rear motor pod incorporates Factory Team carbon fiber shims for rapid axle height and ground clearance adjustments across varying tire diameters. The chassis accommodates batteries up to 24 mm in width and provides ample room for standard Reedy 1:28-scale electronics. Completing the package is the aerodynamic Radbody Mako X2 competition body.

Highlights at a Glance

• Optimized Steel Chassis: Redesigned chassis and center bulkhead accommodate battery packs up to 24 mm wide, maximize electronics layout room, and reduce chassis scrub.Radbody Mako X2 Body: Aerodynamically optimized competition body shell included in the kit.

• Adjustable Front Geometry: Includes modular upper arms for 0.5° / 1.0° camber as well as 2° / 4° caster tuning.

• Factory Team Carbon Fiber Upgrades: FT carbon fiber arm brace and front bulkhead shims included out of the box.

• Torsion Side Links: Three stiffness rates (Soft, Medium, Hard) replace standard side springs for quicker, more predictable tuning.

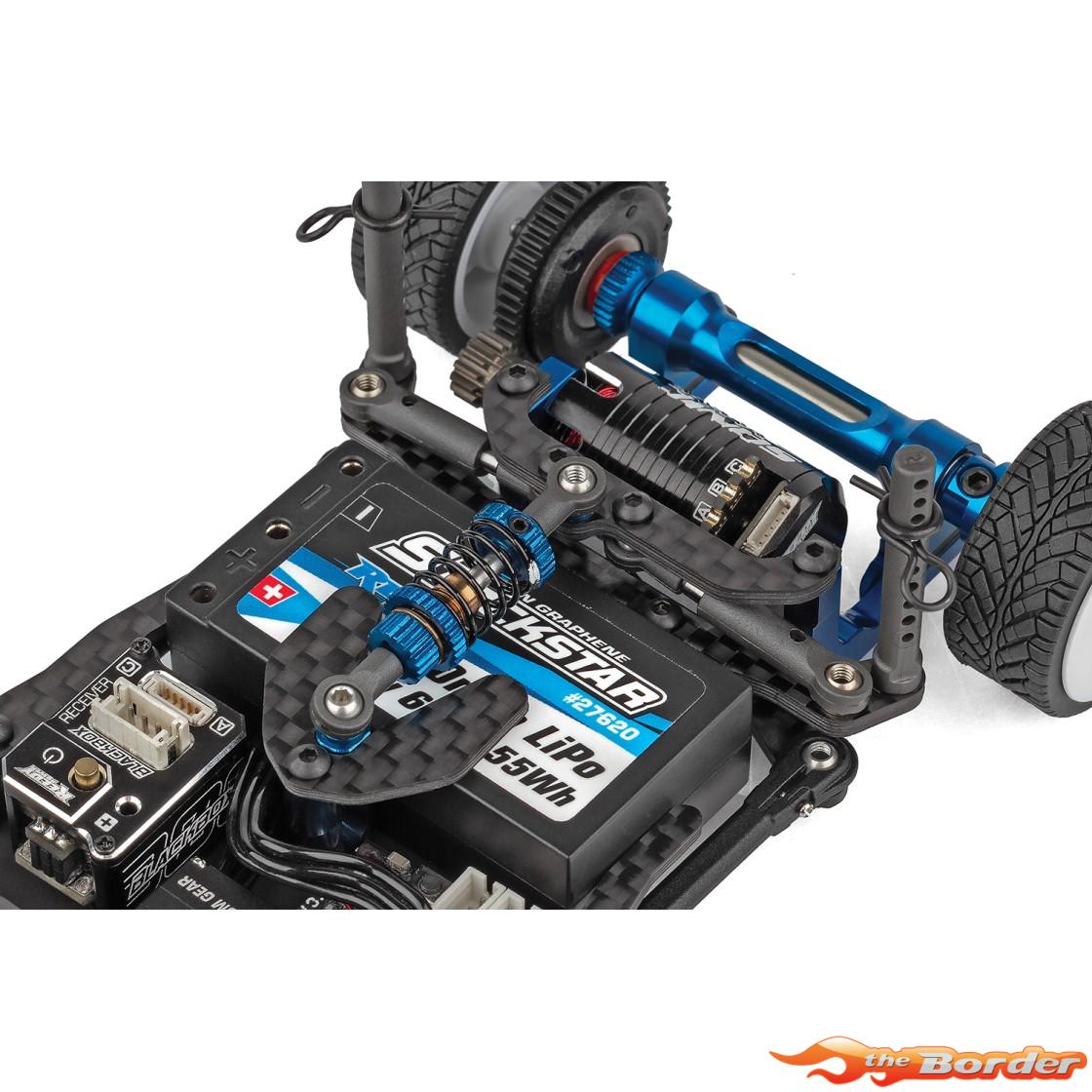

• Precision Rear Pod: Two-piece rear pod with FT carbon shims for quick ride height and tire wear compensation.

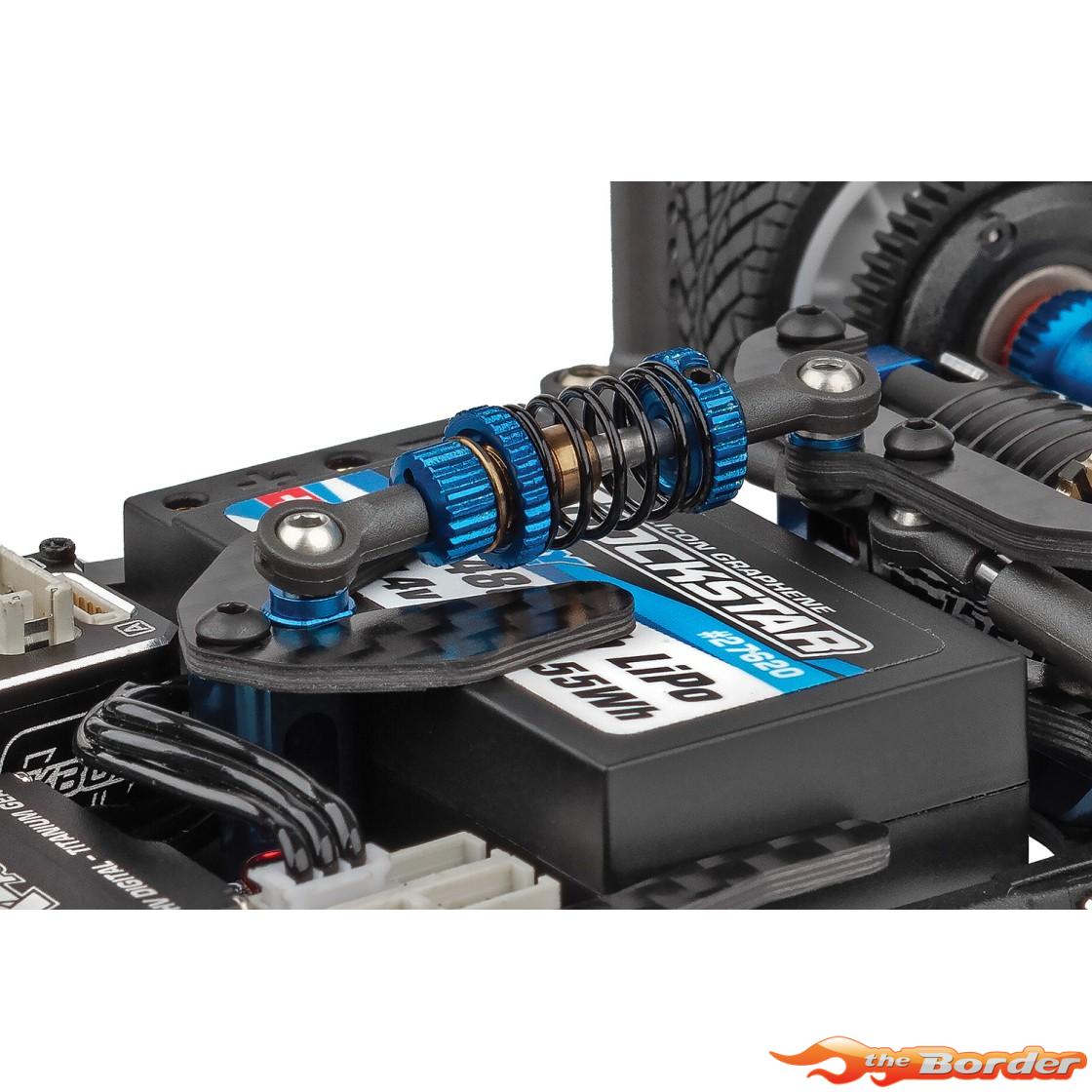

• Aluminum Center Shock: Threaded coil-over shock with adjustable spring collar and tunable droop settings.

• Efficient Damping: Side damper tubes optimize roll characteristics and cornering transitions.

• Gear Differential Included: Durable internal gear differential installed from the factory; compatible with aftermarket option parts.

• V2 White Wheels: White dish wheels included, compatible with optional front wheel flanges for steering fine-tuning.

• Flexible Body Mounting: Mounting hardware provided for both hard plastic and polycarbonate body shells.

Specifications

• Scale: 1:28
• Category: 1:28 Electric On-Road Competition Chassis (Pan Car)
• Drivetrain: 2WD Rear-Wheel Drive with rear gear differential
• Chassis: Precision steel main chassis plate
• Battery Tray: Fits batteries up to 24 mm in width
• Damping: Central aluminum threaded coil-over shock & side damper tubes
• Front Suspension: Independent front suspension with adjustable camber (0.5°/1°) and caster (2°/4°)
• Rear Suspension: 2-piece rear pod with carbon height shims
• Wheels: V2 Dish Wheels (White)
• Body: Radbody Mako X2 (clear, unpainted)
• Build Type: Unassembled Kit

TECHNICAL DATA

Included

• 1x Team Associated RC28R.1 Kit (unassembled)
• 1x Radbody Mako X2 Body (clear, unpainted)
• 1x Set of V2 Wheels (White)
• 1x Illustrated Assembly Manual

Required Accessories (Not Included)

• 2-channel radio system
• Mini Servo
• Micro brushless motor
